Adaptador mSATA interno DeLOCK 61892

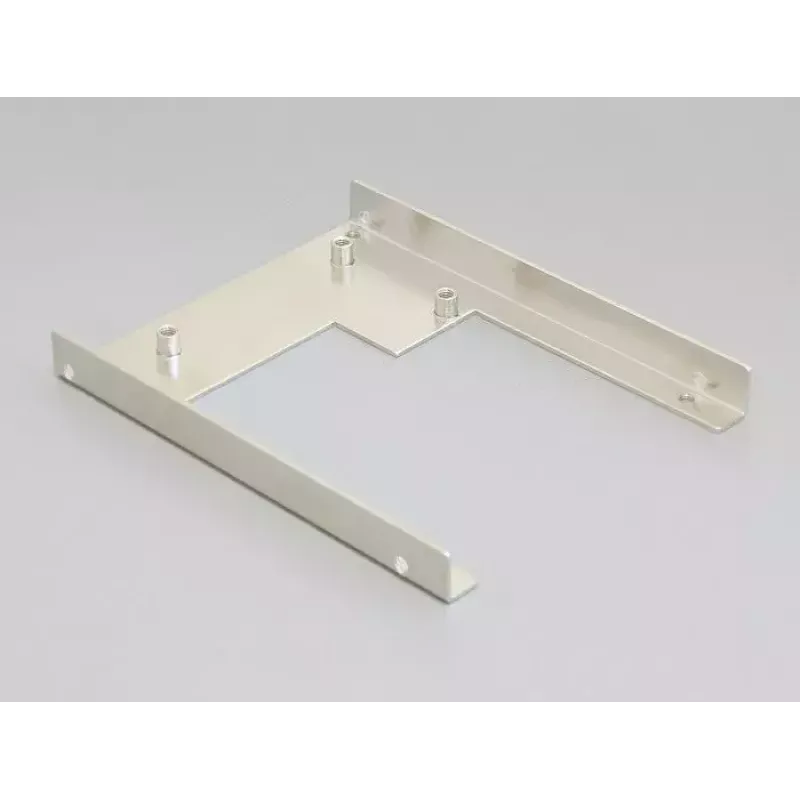

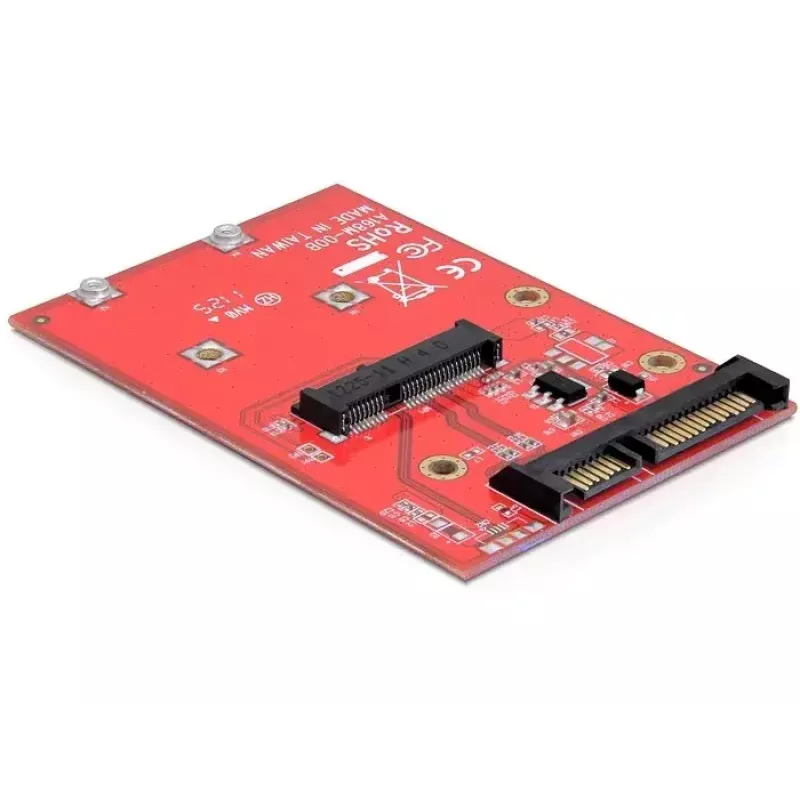

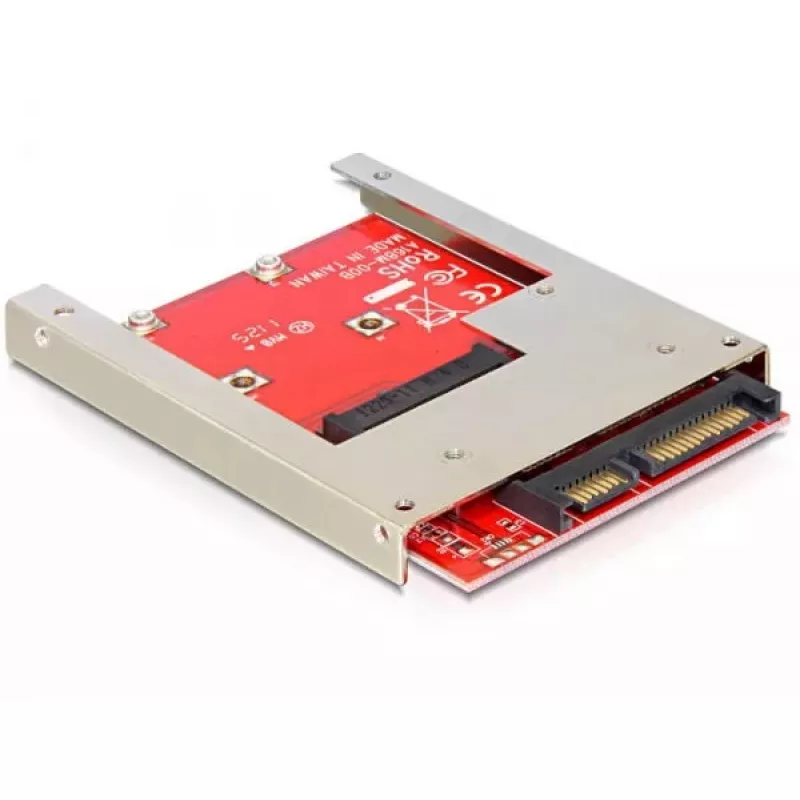

The DeLOCK 61892 is an internal mSATA adapter that fits into a 2.5" HDD bay and connects a full-size mSATA module to a standard SATA 22-pin port. Supplied with a metal frame, the adapter can be installed like a conventional 2.5" drive to add or repurpose mSATA storage in systems with SATA interfaces. The unit uses wired SATA connectivity and does not require additional drivers.

Advantages

The adapter provides a simple, OS-independent way to use mSATA modules in systems with SATA 22-pin connectors. Its 2.5" HDD form factor and included metal frame allow straightforward installation into existing drive bays. The product's wired SATA interface ensures direct compatibility with standard SATA ports without software setup.

Suitable for

• Upgrading or expanding internal storage using mSATA SSDs
• Installing an mSATA module into a 2.5" drive bay
• Systems with a SATA 22-pin internal port

Key specifications

• Form factor: 2.5" HDD
• Host interface: SATA (22-pin)
• Output interface: mSATA (full size)
• Internal: yes
• Colour: red
• Driver requirement: OS independent, no driver installation needed

How to use

Mount the mSATA module onto the adapter according to the module's connector alignment, secure it as required, then insert the adapter with the supplied metal frame into a 2.5" drive bay. Connect the SATA 22-pin cable from the host to the adapter's SATA interface and attach power as needed. After physical installation, power on the system — the connected mSATA module should be detected by the host without installing additional drivers.

Recommendations

For reliable operation, handle the mSATA module and adapter using proper ESD precautions, ensure the module is compatible with full-size mSATA form factor, and confirm the host SATA port provides required power and bandwidth for the intended SSD workload.
