Placa de interface DeLOCK 63953 interna SAS SATA

The DeLOCK 63953 internal interface card enables installation of M.2 SSDs in sizes 22110, 2280, 2260, 2242 and 2230 and supports both PCIe and SATA M.2 drives. It is designed to be mounted inside a system and provides connectivity via a SATA 22 pin interface for SATA M.2 SSDs or via a U.2 interface when a PCIe M.2 SSD is used. The card features an M.2 host interface and provides output via SAS and SATA, making it suitable for expanding internal storage in servers or workstations.

Advantages

The interface card supports multiple M.2 form factors and both PCIe and SATA protocols, offering flexible SSD compatibility. Its internal mounting and M.2 host interface enable high-speed data transfer, while included SAS connectivity options increase compatibility with server and workstation environments. The compact dimensions facilitate installation in varied chassis.

Suitable for

• Adding or upgrading internal storage in servers
• Expanding storage capacity in workstations
• Integrating M.2 SSDs into systems that require SAS or SATA output

Key specifications

• Supported M.2 sizes: 22110, 2280, 2260, 2242, 2230
• Supported M.2 interfaces: PCIe and SATA
• Host interface: M.2
• Output interfaces: SAS, SATA
• Internal installation: yes
• Dimensions (W x D x H): 145 mm x 51 mm x 9 mm
• Brand: DELOCK, MPN: 63953, EAN: 4043619639533

How to use

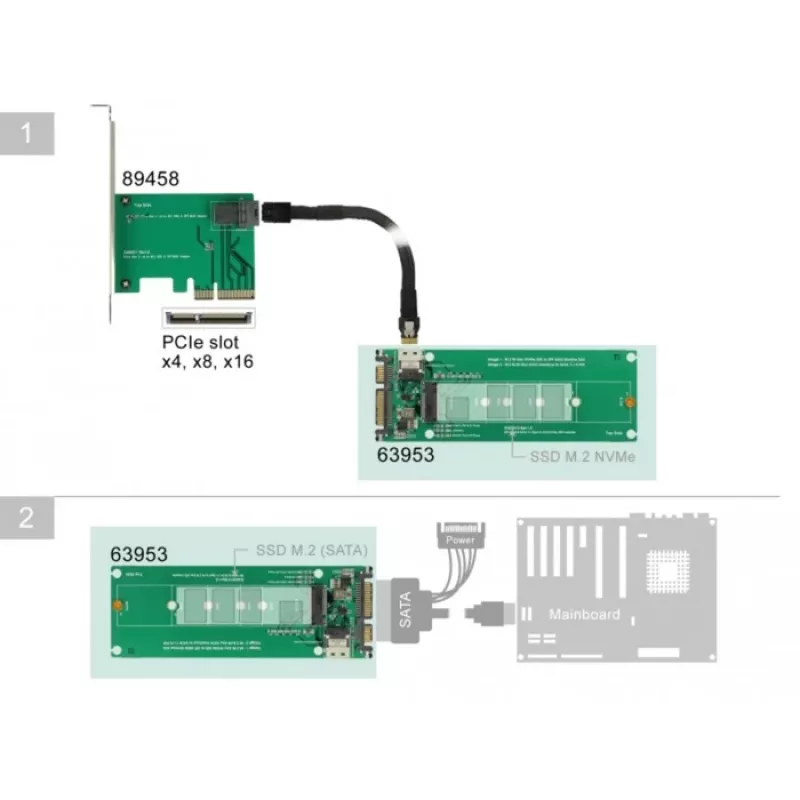

Install the DeLOCK 63953 into your system's internal slot according to your chassis specifications. Fit an M.2 SSD of a supported size onto the card and secure it. When using a SATA M.2 SSD, connect the card through the SATA 22 pin interface; when using a PCIe M.2 SSD, connect via the U.2 interface. Attach the provided SAS/SATA cables to the appropriate output ports and to the host or backplane as required. Ensure power and data connections are correctly made before powering the system.

Recommendations

Use compatible M.2 SSDs in the listed sizes and verify whether your drive uses SATA or PCIe before connecting. Follow your server or workstation manual for internal installation and grounding precautions. For optimum performance, ensure firmware and drivers for your host system and controllers are up to date.
