Interruptor de 3 posições HAGER WDE386103 com posição 0 0-1-2-3 HLK

Rated at 10 A and 250 V AC, this 3-step switch with 0-position provides reliable control for fans and HVAC systems. Its 4 switching positions (0-1-2-3) allow precise speed or power selection.

Overview

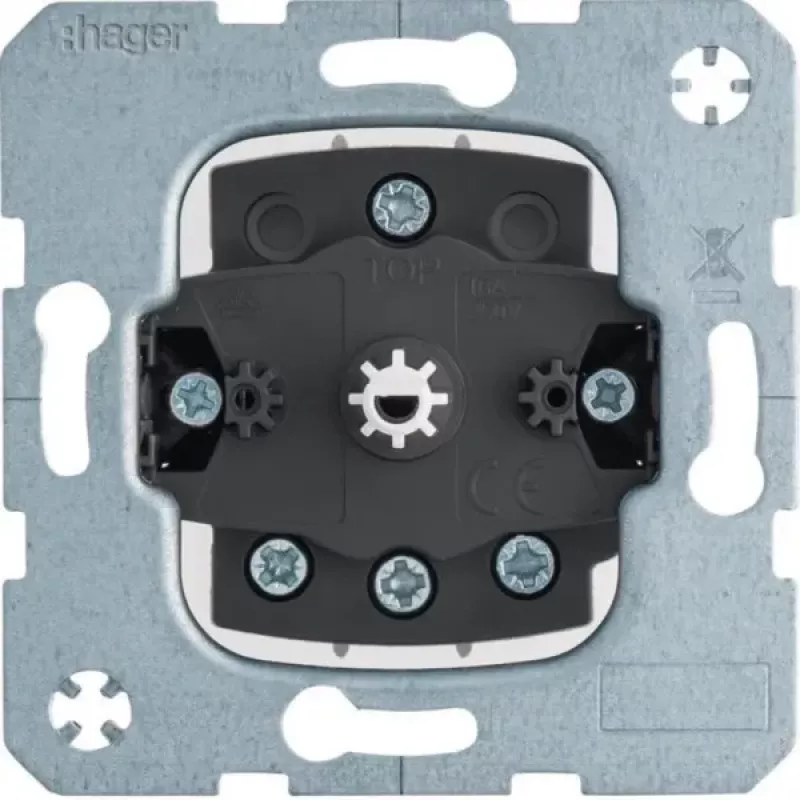

The HAGER WDE386103 is a flush-mounted rotary switch designed for manual control of three-speed fans or other AC loads. It features screw terminals for secure wiring and a compact 2-module width for standard installation.

What stands out

• 4 switching positions (0-1-2-3) for flexible control
• Rated operational current of 10 A at 250 V AC
• Flush-mounted design with screw terminals
• Thermoplastic construction for durability

Technical details

• Switching function: 3-step switch with 0-position
• Number of switching positions: 4 (0-1-2-3)
• Rated operational current (Ie): 10 A (AC-21A)
• Rated operational voltage (Ue): 250 V AC
• Frequency: 50/60 Hz
• Connection type: screw terminals
• Mounting type: flush-mounted
• Number of modules: 2
• Actuation type: rotary (requires separate knob/cover)
• Material: thermoplastic
• Operating temperature: -5 to 40 °C
• Storage temperature: -20 to 70 °C
• Short-circuit current: 1000 A
• Type of current: AC
• Number of poles: 1-pole

Our verdict

A straightforward, reliable switch for basic fan speed control in residential or commercial HVAC applications.
