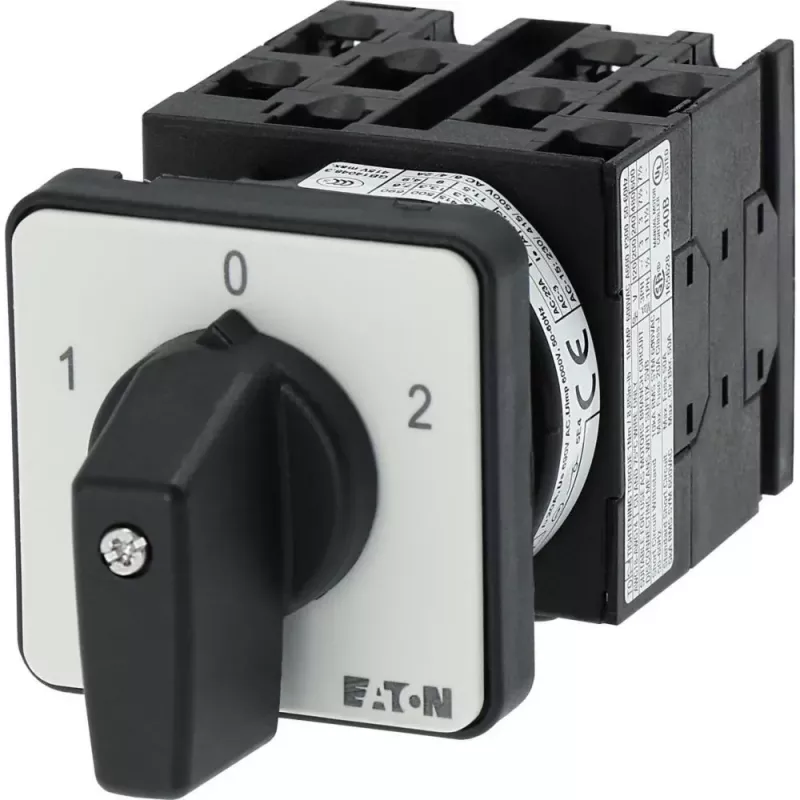

Interruptor de came Eaton T0-4-8213/E 4 polos 20A 690V IP65 manípulo rotativo preto 031726

The Eaton T0-4-8213/E stands apart from generic cam switches with its robust 4-pole configuration and high 690V rating, making it a reliable choice for demanding industrial control circuits. Its front-mounted design with IP65 protection ensures dependable operation even in dusty or damp environments, while the black rotary handle provides clear, tactile switching.

Highlights

• 4-pole main switch with 20A uninterrupted current rating
• Rated operational voltage up to 690V AC for versatile applications
• IP65 front protection against dust and water jets
• Compact front mounting with central fixing for easy installation
• Black rotary handle with 90° switching angle for clear status indication

In daily use

This cam switch excels as a manual main switch or motor disconnect in industrial machinery, control panels, and power distribution systems. The screw terminals accept a wide range of conductor sizes, and the 2-position (0-1) operation simplifies on/off control. With a short-time withstand current of 340A, it handles momentary overloads without damage, ensuring long-term reliability.

Full specifications

• Switch type: Cam switch / Main switch
• Number of poles: 4
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Switching positions: 2 (0-1)
• Switching angle: 90°
• Mounting type: Front mounting, central fixing
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Handle colour: Black
• Handle type: Rotary handle

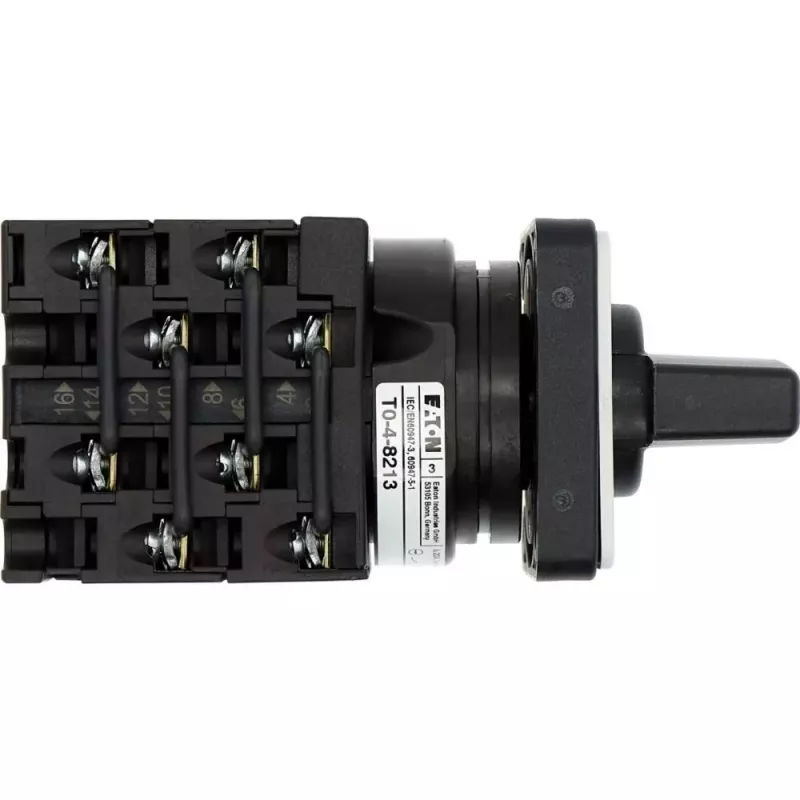

• Terminal type: Screw terminals
• Rated short-time withstand current (Icw): 340 A (1s)
• Rated conditional short-circuit current: 6 kA
• Motor rating (AC-23A, 400V): 5.5 kW
• Motor rating (AC-3, 400V): 3 kW
• Standards: IEC/EN 60947, VDE
• Operating temperature: -25 to +50 °C

Final note

Engineered to meet stringent international standards, the Eaton T0-4-8213/E delivers dependable switching performance for years of service in industrial environments.
