Interruptor de parede Sonoff ZBMINIL2-E ZigBee design compacto controlo remoto

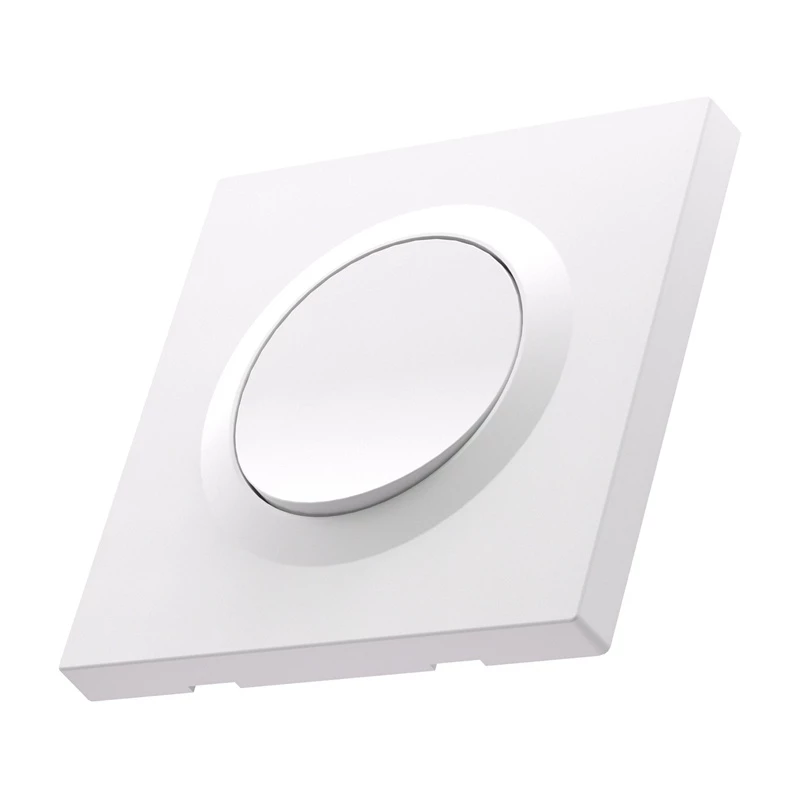

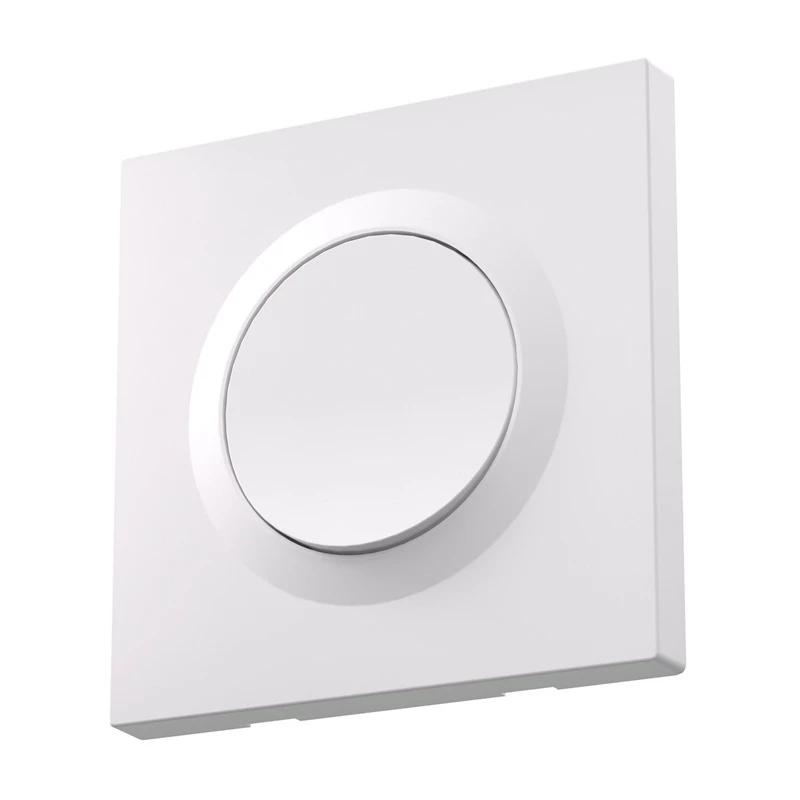

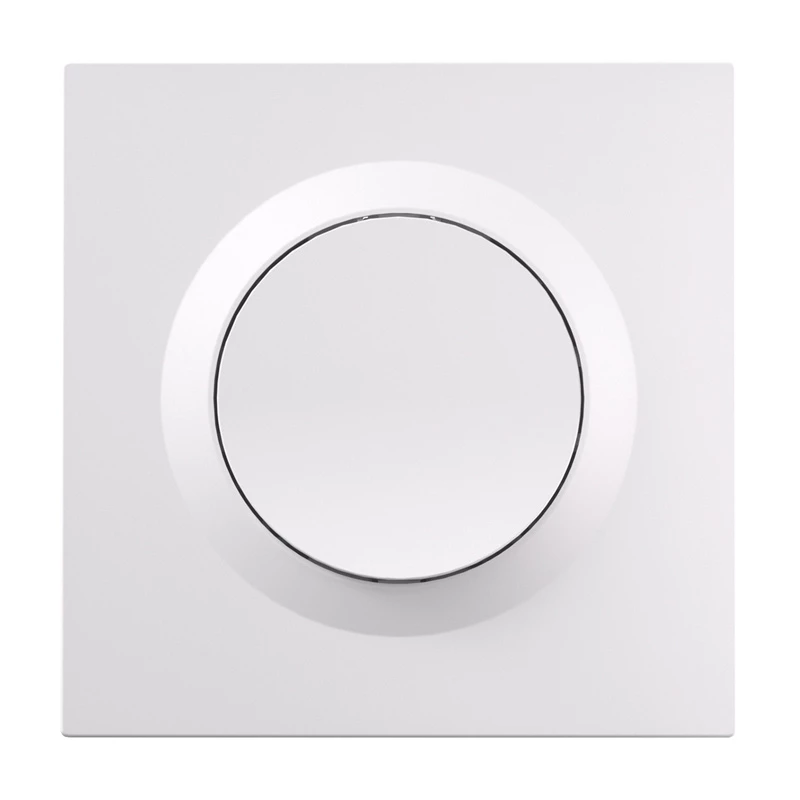

Orb-ZBW1L (model ZBMINIL2-E) is a ZigBee wall switch from Sonoff's Fusion series designed for installations without a neutral wire. The compact switch fits standard round (⌀60 mm) and square (Type 86) mounting boxes and can be mounted vertically or horizontally, alone or next to other Fusion series devices. It offers wireless on/off control for lights and small loads and integrates with popular ZigBee hubs for remote and automated control.

Advantages

The switch operates without a neutral wire, simplifying installation in older homes and apartments. It supports Zigbee 3.0 for broad compatibility with hubs and ecosystems, and its compact Fusion-series form factor allows flexible mounting and neat integration into existing switch panels. The device supports smart scenes and group control to combine multiple switches or sensors into coordinated automations.

Suitable for

• Retrofit installations without neutral wire
• Controlling indoor lighting circuits and LED loads
• Small residential or apartment applications with standard round or Type 86 boxes

Key specifications

• Manufacturer: Sonoff; Model: ZBMINIL2-E (Orb-ZBW1L)
• Series: Fusion; MCU: EFR32MG22
• Power supply: 100–240 V~, 50/60 Hz; max resistive current 6 A
• LED load: up to 150 W at 100 V / up to 300 W at 240 V
• Maximum load: 1440 W; Minimum load: 3 W
• Wireless: Zigbee 3.0
• Dimensions: 86 × 86 × 35.8 mm; Weight: 80 g; Color: White
• Housing: PC (polycarbonate); Recommended wire: 16AWG–14AWG (copper)
• Operating temperature: -10 °C to 40 °C; Humidity: 5–95% RH non-condensing
• Application: indoor use; Fits round (⌀60 mm) and square (Type 86) boxes

How to use

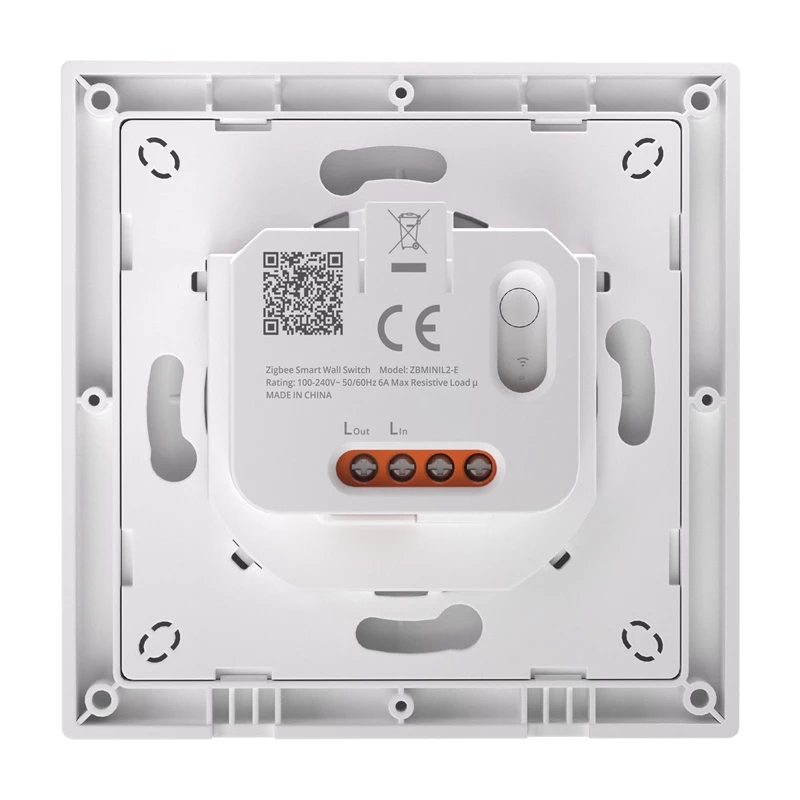

Turn off mains power before installation. Mount the Orb-ZBW1L into a compatible round or Type 86 box and connect the live/line conductor(s) according to the wiring diagram; the device does not require a neutral connection. After restoring power, pair the switch with a ZigBee 3.0 hub (for example SONOFF ZBBridge, NSPanel Pro, iHost, SmartThings, Zigbee2MQTT or Amazon Echo with built‑in ZigBee) following the hub's pairing procedure. Configure device name, groups and scenes in the hub or eWeLink app and verify on/off control and any automations.

Recommendations

Install using copper conductors of the recommended diameter (16AWG–14AWG) and observe local electrical codes. Do not exceed the specified maximum load values. Use the switch indoors within the stated temperature and humidity ranges and pair it with compatible ZigBee hubs for full functionality.
