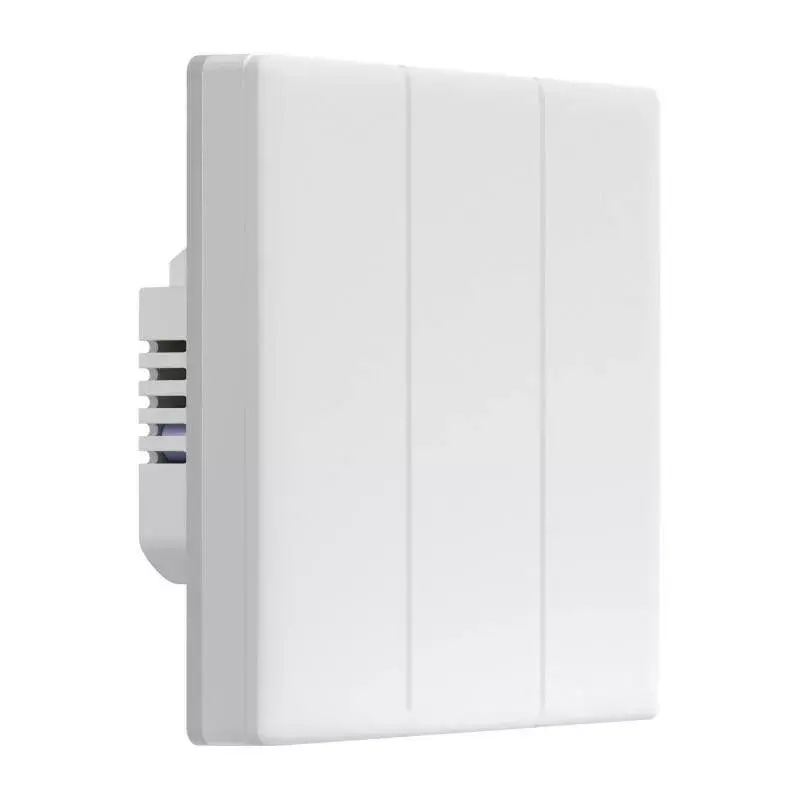

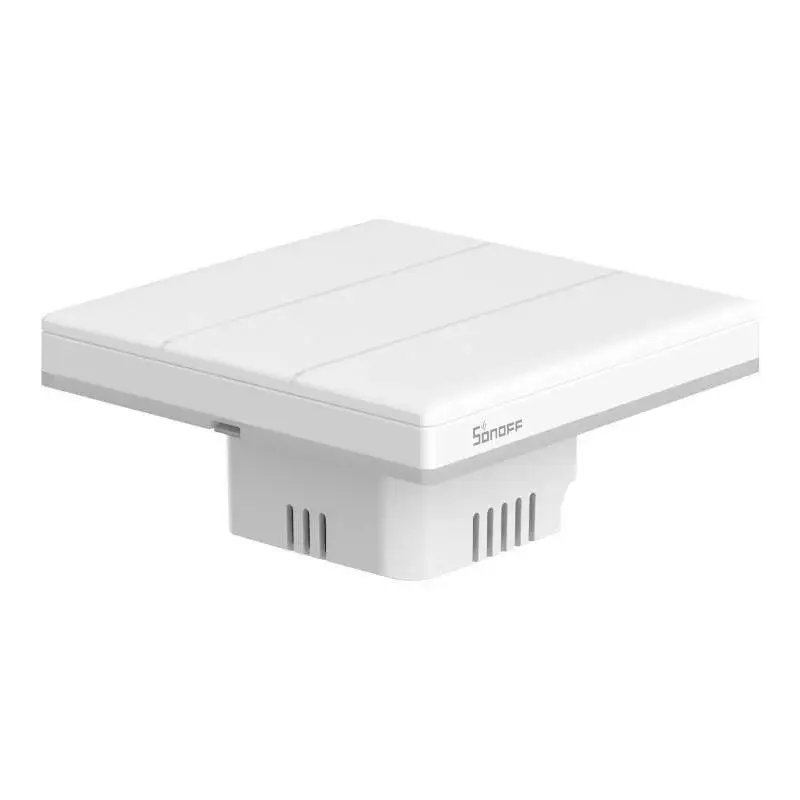

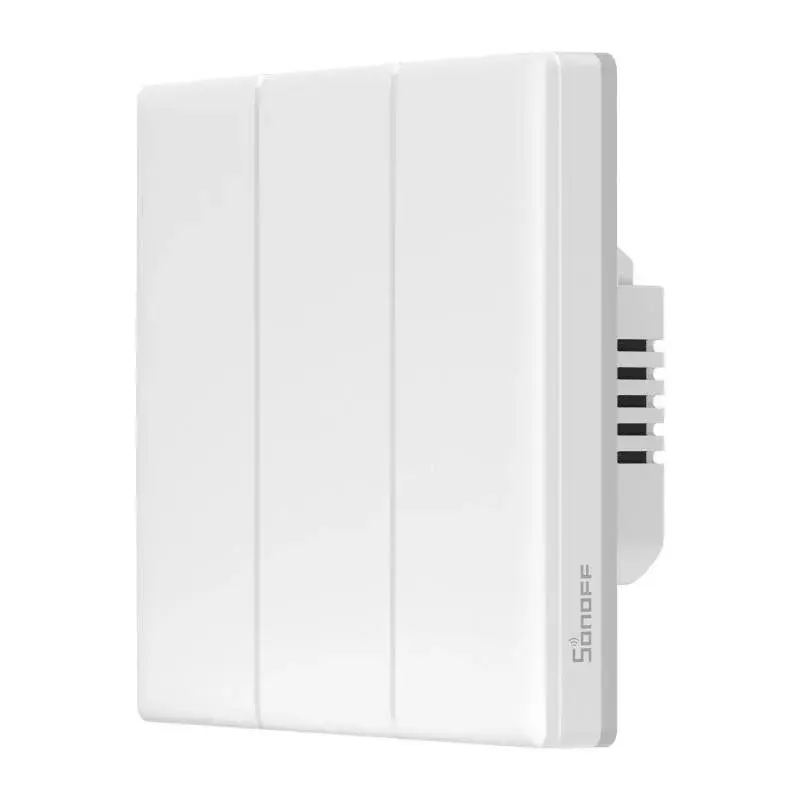

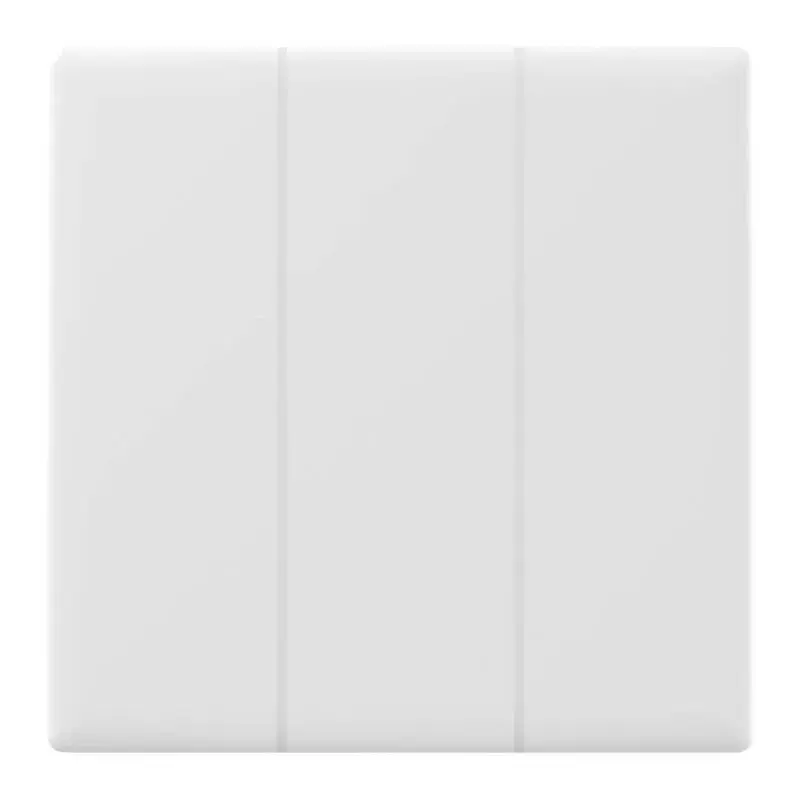

Interruptor de parede inteligente Sonoff T5 3C 3 canais Wi‑Fi tátil (encastrar)

Sonoff TX T5 3C is a flush-mounted 3-channel Wi‑Fi touch wall switch for controlling lighting and electrical loads. The switch supports local touch control and remote management via the eWeLink app, voice assistants and scheduling. It features customizable colored LED backlighting, a built-in timer and compatibility with smart scenes. Color panels for personalization are sold separately.

Advantages

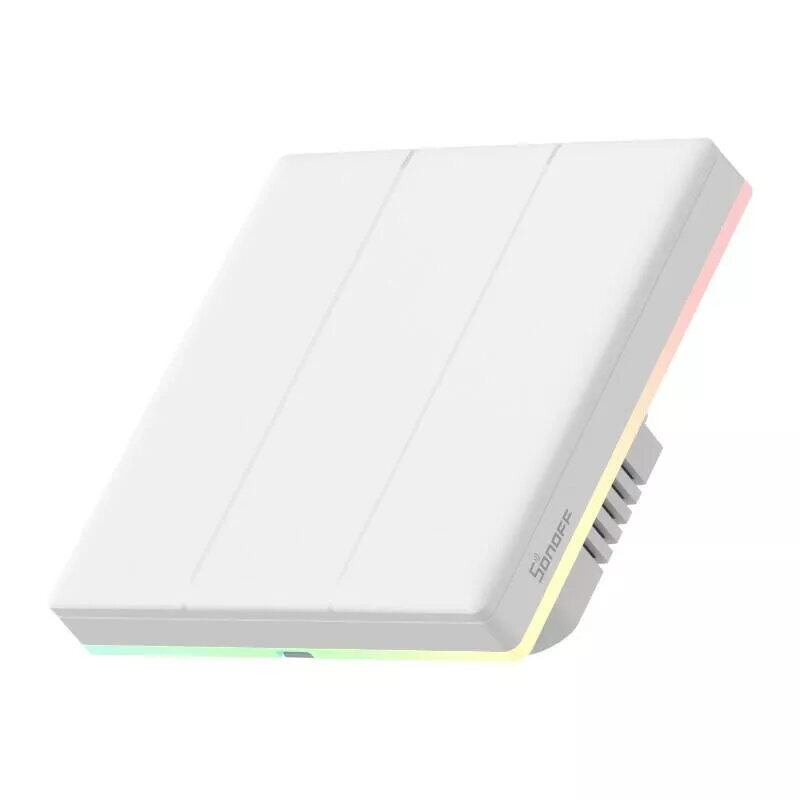

The Sonoff TX T5 3C combines three independent channels in a single 86×86 mm flush-mounted module, providing separate control of up to three circuits while supporting a total load of up to 15 A. It works over 2.4 GHz Wi‑Fi and integrates with Amazon Alexa, Google Home and Alice for voice control. The touch panel gives tactile and audible feedback, and eight backlight modes help you locate and identify switches in low light. The device also supports scene creation through the eWeLink app and can act as an eWeLink gateway for two-way control with compatible Sonoff devices.

Suitable for

• Residential lighting control in living rooms, bedrooms and kitchens
• Small office or meeting room lighting management
• Rooms where separate control of multiple circuits is needed from one wall plate
• Installations requiring remote control, scheduling and voice operation

Key specifications

• Manufacturer: Sonoff
• Model: TX T5 3C (T5-3C-86)
• Number of channels: 3

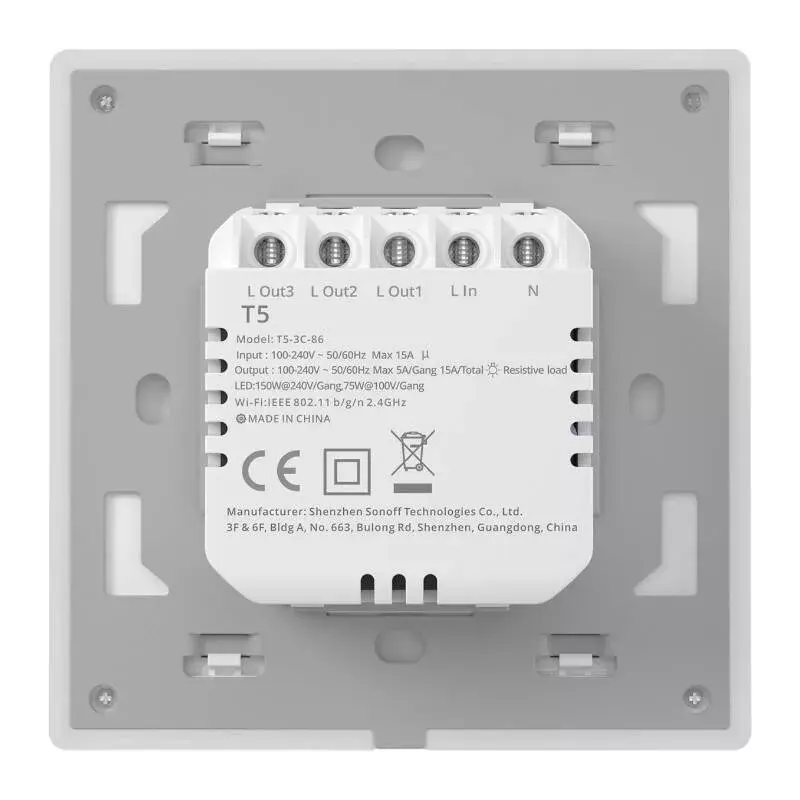

• Input voltage: 100–240 V ~ 50/60 Hz, max. 15 A
• Output rating: 100–240 V ~ 50/60 Hz, max. 5 A per channel, 15 A total
• Power: max. 1200 W per channel (240 V), 3600 W total
• LED load: max. 150 W per channel (240 V) / 75 W per channel (100 V)
• Wi‑Fi: IEEE 802.11 b/g/n 2.4 GHz
• Bluetooth: 4.2
• App: eWeLink (iOS, Android)
• Color: White
• Material: PC, CRS
• Dimensions: 86 × 86 × 39 mm
• Weight: 174 g
• Voice control: Amazon Alexa, Google Home, Alice

How to use

Install the Sonoff TX T5 3C into a standard 86 mm flush mounting box following local electrical regulations and the installation instructions supplied. Connect the live and neutral wires and the load wires to the corresponding terminals for each channel. Use touch keys for local switching or pair the device with the eWeLink app over a 2.4 GHz Wi‑Fi network to enable remote control, scheduling and scene creation. Optionally integrate with compatible Sonoff devices to enable two-way control and expanded automation.

Recommendations

Before installation, turn off mains power and verify wiring compatibility. Do not exceed per‑channel and total current/ power ratings. For LED loads, observe the specified maximum wattage per channel. Use the eWeLink app and voice assistant integrations only over a secure Wi‑Fi network. Replace decorative color panels with compatible panels sold separately if desired.
