Interruptor de parede inteligente tátil Sonoff TX T5 1C 1 canal com controlo Wi‑Fi, caixa de encastrar simples

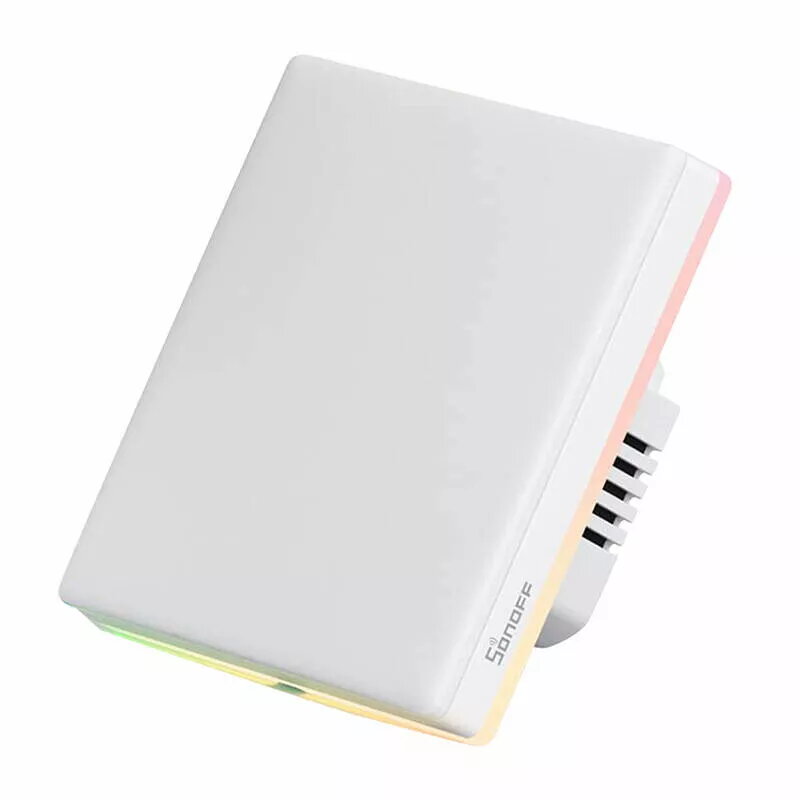

Smart Touch Wi-Fi Wall Switch Sonoff TX T5 1C is a single-channel, wall-mounted touch switch designed to replace a standard single-gang switch. It provides local touch control and remote operation via the eWeLink app over 2.4 GHz Wi‑Fi, supports voice assistants and includes customizable LED backlighting, a built-in timer and basic automation functions.

Advantages

The Sonoff TX T5 1C offers one-touch control with a large capacitive panel, remote access through the eWeLink app and compatibility with Amazon Alexa, Google Home and Alice for voice control. It supports timed actions and smart scenes, functions as an eWeLink gateway for two-way lighting control with compatible devices, and features customizable multicolour backlighting to indicate status or help locate the switch in the dark.

Suitable for

• Replacing a standard single-gang wall switch
• Controlling a single light circuit or other single-circuit loads up to the specified limits
• Remote on/off and scheduled lighting for homes and apartments
• Integrating basic smart scenes and voice control with Alexa, Google Home or Alice

Key specifications

• Manufacturer: Sonoff
• Model: TX T5 1C
• Number of channels: 1
• Input / output voltage: 100–240 V ~ 50/60 Hz, max. 5 A
• Power: max. 1200 W
• LED load: 150 W (240 V) / 75 W (100 V) max.
• Wi‑Fi: IEEE 802.11 b/g/n 2.4 GHz
• Bluetooth: 4.2
• App: eWeLink (iOS, Android)
• Voice assistants: Amazon Alexa, Google Home, Alice
• Color: white
• Material: PC, CRS
• Dimensions: 86 x 86 x 39 mm
• Weight: 164 g

How to use

Install the Sonoff TX T5 1C in place of an existing single-gang switch following the user manual and local electrical regulations. Connect live and load wires and restore power. Use the capacitive touch panel for local on/off control or configure the device in the eWeLink app to add Wi‑Fi control, set timers and create smart scenes. Link the switch to a voice assistant through the eWeLink integration to enable voice commands.

Recommendations

Verify that the connected load does not exceed the specified limits (max. 5 A, 1200 W, LED load limits) and use the device with a 2.4 GHz Wi‑Fi network. Use compatible Sonoff accessories and follow the installation instructions and local safety rules when wiring the switch.
