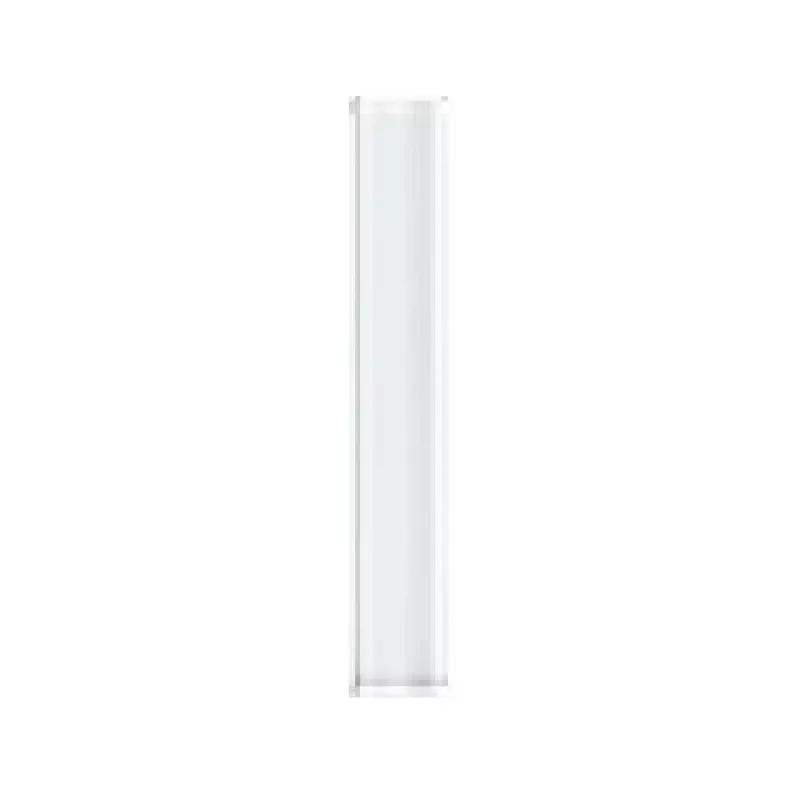

Hikvision DS-3WF5000A-120 Bridge WLAN exterior 5GHz, 300 Mbps, antena 12 dBi, IP65

Engineered for demanding point-to-point links, the Hikvision DS-3WF5000A-120 delivers reliable 5 GHz connectivity at speeds up to 300 Mbps. This robust outdoor bridge combines a high-gain 12 dBi directional antenna with an IP65-rated enclosure, making it an ideal choice for long-range surveillance backhaul or campus networking.

Overview

The DS-3WF5000A-120 is a compact, self-contained wireless bridge designed to transmit data across distances of up to 5 km. Operating in the 5.150–5.850 GHz band, it supports IEEE 802.11a/n standards and provides two Fast Ethernet ports for flexible deployment. With 24V passive PoE, installation is simplified, and the included pole mount kit allows quick setup on masts or walls.

What stands out

• 300 Mbps throughput on the 5 GHz band
• Integrated 12 dBi directional antenna for focused coverage
• IP65 weatherproof housing for outdoor operation
• Dual 10/100 Ethernet ports with passive PoE input
• Multiple operating modes: AP, station, repeater, WISP, and router
• Secure wireless connections with WPA/WPA2 encryption

Technical details

• Wireless standard: IEEE 802.11a/n
• Frequency band: 5.150 - 5.850 GHz
• Maximum data rate: 300 Mbps
• Antenna gain: 12 dBi
• Ethernet ports: 2x 10/100 Mbps (1x PoE IN, 1x LAN)
• Power over Ethernet: 24V passive PoE
• IP rating: IP65
• Operating temperature: -30°C to 70°C
• Operating humidity: 5% to 95% non-condensing
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK
• Management: Web-based UI, SNMP
• Max power consumption: 6 W

Our verdict

The Hikvision DS-3WF5000A-120 offers exceptional value for outdoor wireless links. Its powerful antenna, weatherproof build, and flexible operating modes make it a versatile solution for security and network professionals seeking cost-effective long-range connectivity.
