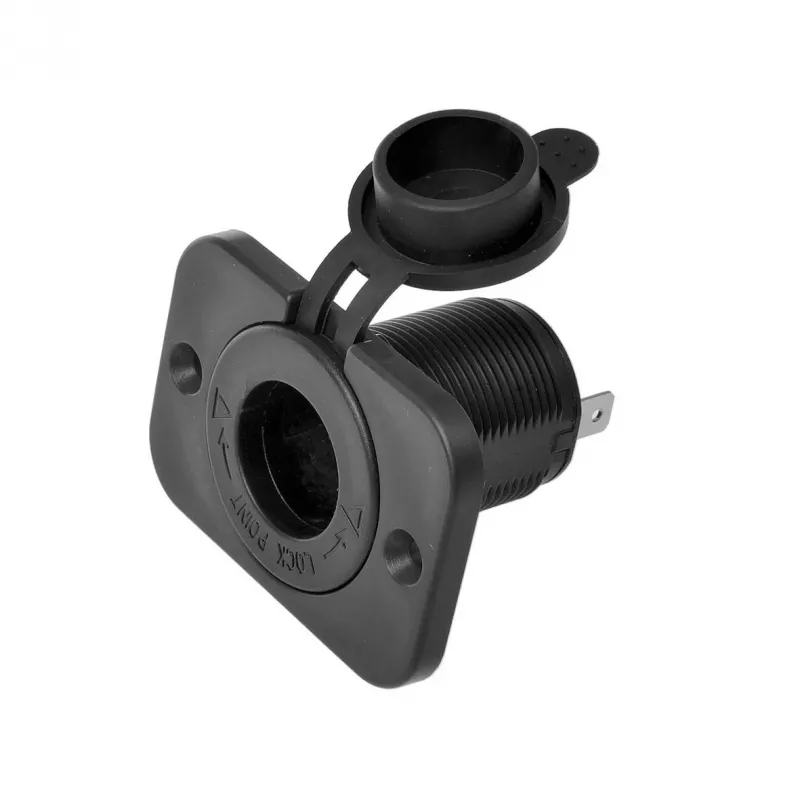

IWH tomada embutida 12/24V-D DC, máx. 20A, tipo isqueiro, preto 19002

Power a 12V or 24V accessory directly from your vehicle's electrical system with this flush-mount socket. It fits a 28 mm mounting hole and handles up to 20 A, making it suitable for car, truck, boat, RV, caravan, or motorcycle installations where a permanent power point is needed.

Key specifications

• Operating voltage: 12 V/DC, 24 V/DC
• Maximum current load: 20 A
• Socket type: automotive power socket (cigarette lighter type)
• Mounting type: flush mount / built-in
• Mounting diameter: 28 mm
• Installation depth: 37 mm
• Outer diameter: 36 mm
• Connection type (rear): spade terminals (6.3 mm)
• Number of terminals: 2 (positive, negative)
• Polarity: center pin positive, outer sleeve negative
• Material: plastic
• Colour: black

Why choose it

The socket's compact design and standard 28 mm mounting diameter allow for clean, professional installation in dashboards, panels, or trim. Its 20 A rating supports high-draw devices like air compressors, coolers, or spotlights.

Ideal use cases

• Adding a power outlet in a car, truck, or boat
• Replacing a worn or damaged cigarette lighter socket
• Installing a dedicated socket for portable fridges or inverters
• Custom RV or caravan electrical projects

Good to know

The socket uses standard 6.3 mm spade terminals for secure wiring. Ensure correct polarity: center pin positive, outer sleeve negative. Always use appropriate wire gauge for the load and fuse the circuit accordingly.
