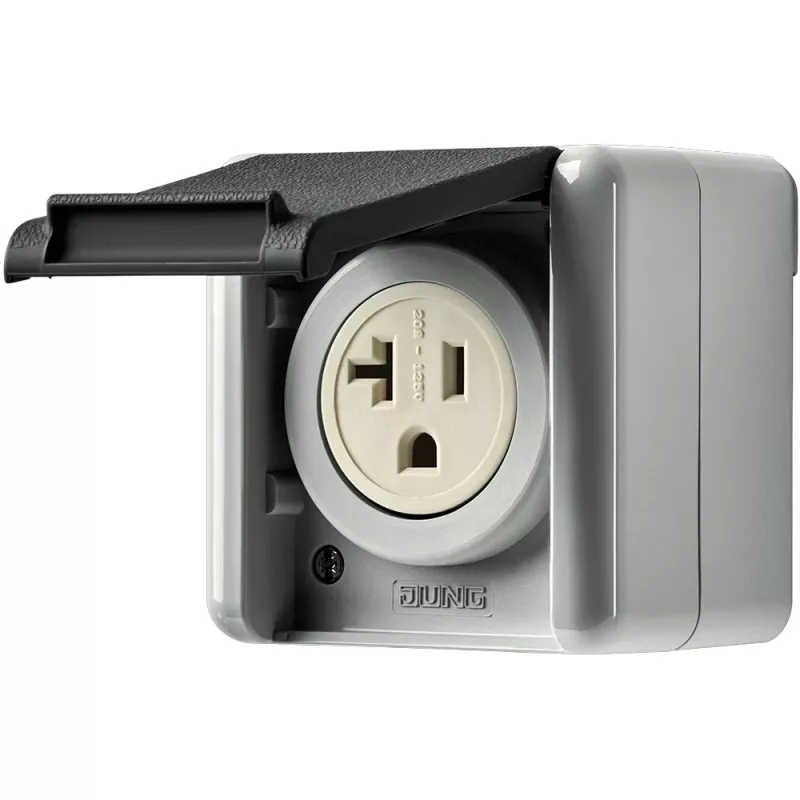

JUNG 821-20 USW Tomada Norma US NEMA 20 A 125 V com Tampa Basculante, WG 800, Cinzento

US standard socket outlet with earthing contact, rated for 20 A and 125 V AC, in alpine white. It features screw terminals and is designed for flush-mounted installation in walls.

Advantages

Thermoplastic polycarbonate construction ensures durability and halogen-free safety. The socket is compatible with JUNG AS / A range design line, allowing seamless integration with other JUNG products.

Suitable for

• Residential and commercial electrical installations requiring a 20 A US standard socket
• Flush-mounted in-wall applications

Key specifications

• Socket type: US Standard (NEMA 5-20R)
• Rated current: 20 A
• Rated voltage: 125 V AC
• Number of sockets: 1
• Mounting type: Flush-mounted (In-wall)
• Connection type: Screw terminals
• Material: Thermoplastic (Polycarbonate)
• Colour: Alpine White
• IP protection rating: IP20
• Earthing contact: Yes
• Frequency: 50/60 Hz
• Terminal capacity: Up to 2.5 mm² (solid/stranded)
• Installation depth: Approx. 32 mm
• Halogen-free: Yes
• Operating temperature: -5 to +40 °C

Recommendations

For use with JUNG AS / A range frames and covers. Ensure proper installation by a qualified electrician.
