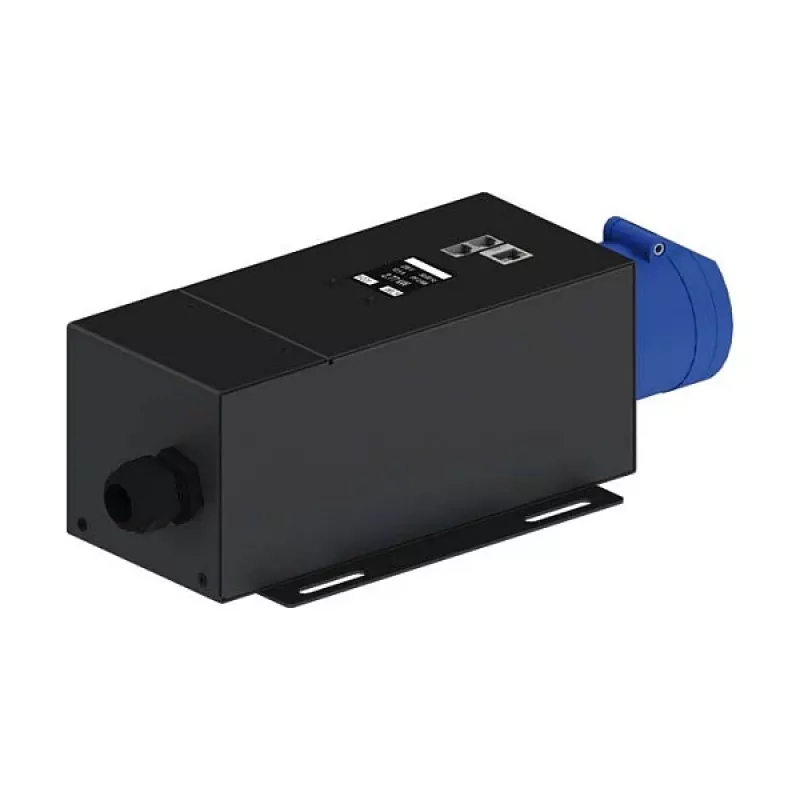

Caixa de tomadas Bachmann 329.3032 preto azul

The Bachmann 329.3032 Outlet Box combines power distribution with intelligent monitoring in a compact black and blue enclosure. Designed for modern interiors, the unit provides integrated measurement and network connectivity for monitoring electrical parameters and environmental conditions. It features a robust steel-plate housing and a high-resolution TFT display with adjustable orientation to improve readability.

Advantages

This outlet box measures current, voltage, frequency, effective, apparent and reactive power as well as power factor, and includes an integrated temperature sensor. It offers an Ethernet connection and supports web-based operation via HTTP and SNMP, enabling remote access and monitoring. The enclosure is durable, includes a removable mounting plate for cable ducts or wall mounting, and can accept up to two external sensors. Terminal block reconnection and optional mounting plates provide installation flexibility.

Suitable for

• Office and workplace power distribution with real-time monitoring
• Data cabinet and server-room environmental and electrical measurement
• Residential or commercial interiors requiring compact smart outlet solutions

Key specifications

• Manufacturer: Bachmann, model 329.3032
• Integrated measurements: current, voltage, frequency, effective, apparent and reactive power, power factor
• Connectivity: Ethernet; supported protocols: HTTP, SNMP
• Display: high-resolution TFT with configurable orientation
• Sensors: built-in temperature sensor; up to two external sensors supported
• Enclosure: steel plate, removable mounting plate for cable ducts or wall mounting

How to use

Install the outlet box using the removable mounting plate for cable ducts or wall mounting, or request alternative mounting plates if needed. Connect power and network via the provided terminals and Ethernet port. Access the device interface from a web browser using HTTP or manage it with SNMP-compatible tools. If additional environmental monitoring is required, attach up to two external sensors to the designated inputs. Adjust the TFT display orientation in software for optimal readability.

Recommendations

For stable network monitoring, connect the Ethernet interface to a managed switch and configure HTTP and SNMP access according to your network security policies. Use the removable mounting plate to route cables neatly and consider installing optional mounting plates if different mounting requirements apply.
