Tomada Bachmann 946.201 2 x tipo F aço inoxidável

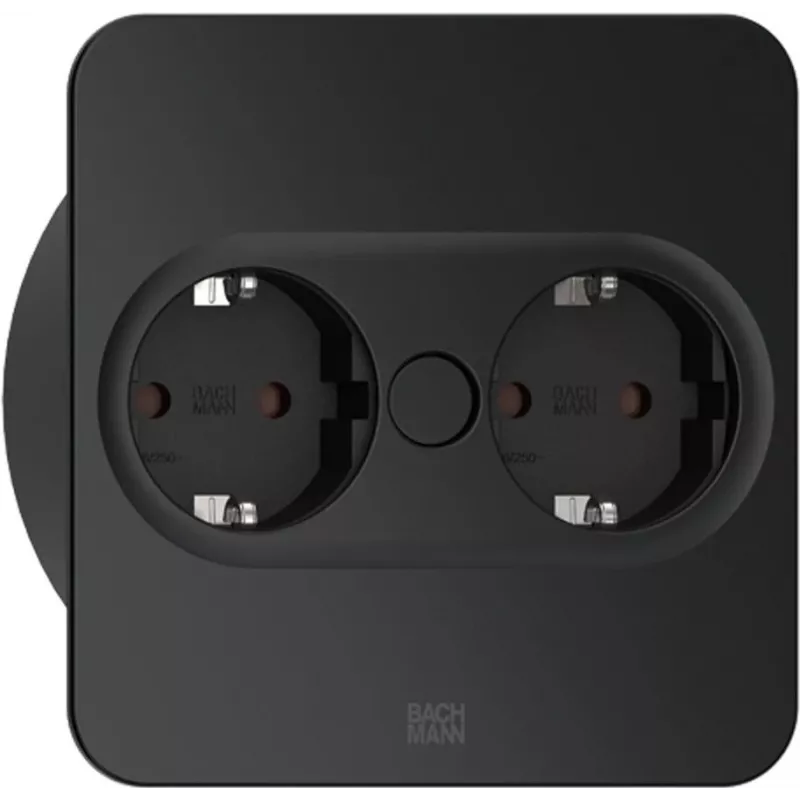

The Bachmann 946.201 TWIST 2 socket outlet provides a compact, recessed power solution for kitchens, living rooms and offices. Made of stainless steel and plastic, it incorporates two Type F sockets and a low mounting depth of approximately 40 mm, allowing installation even above drawers. The unit features a removable cover for easier cleaning, an anti-fingerprint coating on the surface, and an integrated power cable routed close to the housing. Dimensions: 115 mm × 115 mm × 42.5 mm. IP20-rated for indoor use and suitable for desktop or worktop embedded installation with a maximum desktop thickness of 40 mm.

Advantages

The TWIST 2 combines an elegant, compact design with durable stainless-steel surfaces and practical features: automatic opening at the push of a button, manual closing, a removable cover for straightforward cleaning and an anti-fingerprint coating to reduce visible marks. A square version and an optional 22 W USB A/C charger are available for fast device charging. Low mounting depth and neat cable routing simplify integration into worktops and desks.

Suitable for

• Embedded desktop or kitchen worktop power access
• Office desks and meeting rooms
• Home living rooms and compact kitchens
• Installations above drawers where low mounting depth is required

Key specifications

• Brand: Bachmann
• Model / MPN: 946.201 (TWIST 2)
• Sockets: 2 × Type F (Schuko)
• Material: Stainless steel and plastic
• Dimensions (W × D × H): 115 × 115 × 42.5 mm
• Maximum desktop thickness: 40 mm
• Mounting depth: approx. 40 mm
• Ingress protection: IP20 (indoor use)
• EAN: 4057298129025

How to use

Cut an appropriate opening in the worktop or desk according to the product's installation dimensions and feed the unit into the recess so that the housing sits flush with the surface. Connect the power cable to the supply following local electrical regulations and secure the unit as specified in the installation instructions. Press the button to open the TWIST 2 cover automatically, plug devices into the two Type F sockets or, if present, use the 22 W USB A/C charger. After use, close the cover manually to protect sockets and maintain a tidy surface.

Recommendations

Use the Bachmann 946.201 TWIST 2 indoors only and ensure installation is performed by a qualified electrician. Do not exceed the rated current of connected devices and follow local regulations for electrical installations. Regularly remove the cover for cleaning according to the manufacturer's instructions to maintain the anti-fingerprint surface.
