Tomada tipo F Bachmann 946.004 USB A USB C Aço inoxidável

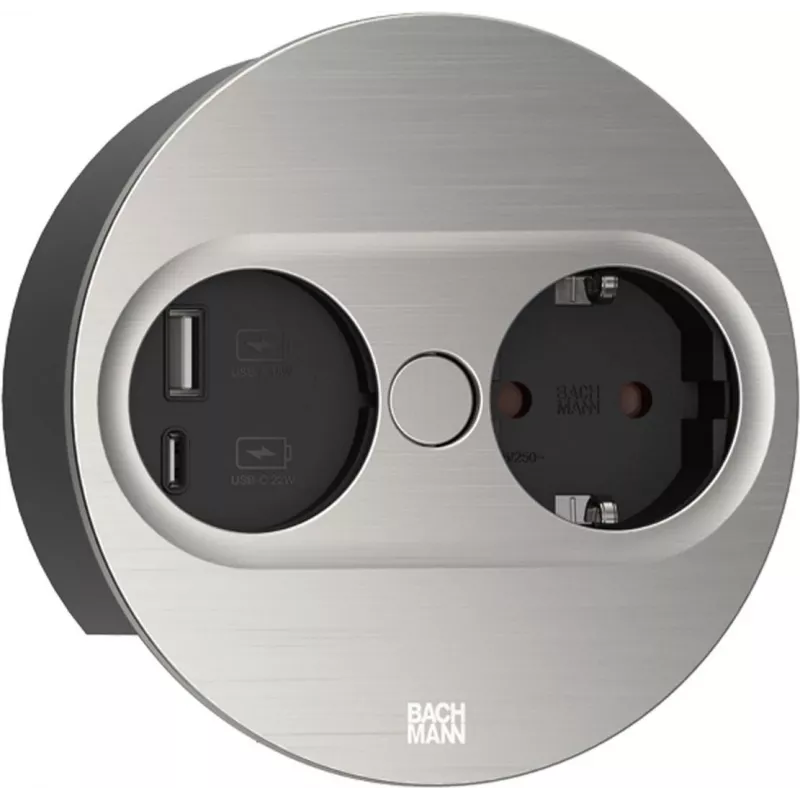

The Bachmann TWIST 2 Type F socket outlet (model 946.004) combines a compact, stainless steel housing with integrated USB A and USB C charging ports for convenient power and device charging in kitchens, offices and living areas. Designed for desktop embedding with a maximum worktop thickness of 40 mm, the unit measures 115 × 115 × 42.5 mm and features a low mounting depth that allows installation above drawers. The cover is removable for easy cleaning and has an anti‑fingerprint matte finish. The TWIST 2 opens automatically at the push of a button and can be closed manually.

Advantages

The TWIST 2 offers a compact footprint and modern stainless steel surfaces with anti‑fingerprint coating that reduce visible marks. Automatic opening at the touch of a button improves convenience while the removable cover simplifies cleaning. Low mounting depth and rear cable routing enable flexible installation in worktops and desks, and the included 22 W USB A/C charger provides fast charging for connected devices.

Suitable for

• Kitchen worktops and islands requiring integrated power solutions
• Office desks and meeting tables for device charging and power
• Home living areas where a compact, flush-mounted outlet is preferred

Key specifications

• Brand: Bachmann
• Model: TWIST 2 / 946.004
• Socket type: Type F (Schuko)
• USB ports: USB A and USB C with 22 W combined charger
• Material and finish: Stainless steel, matte anti‑fingerprint coating
• Mounting: Desktop/worktop embedding, max thickness 40 mm
• Dimensions: 115 × 115 × 42.5 mm
• Mounting depth: approx. 40 mm
• EAN: 4057298128974

How to use

Install the TWIST 2 into a cutout in the worktop or desk according to the manufacturer's cutout and mounting instructions, ensuring the maximum material thickness does not exceed 40 mm. Connect the unit to the mains power supply following local electrical regulations. Press the button to open the cover and access the Type F socket and the USB A/C ports. After use, close the cover manually. The removable cover can be taken off for cleaning; disconnect power before removing the cover or performing maintenance.

Recommendations

Use a qualified electrician for installation and ensure the device is connected to an appropriate protected circuit. Do not expose the unit to excessive moisture; wipe the stainless steel surface with a soft, damp cloth to preserve the anti‑fingerprint finish.
