Juniper EX Series EX4100-24MP - Switch - L3 - gerido - 8 x 100/1G/2,5G/5G/10GBase-T + 16 x 1Gb Ethernet + 4 x 1/10 Gigabit (Uplink)

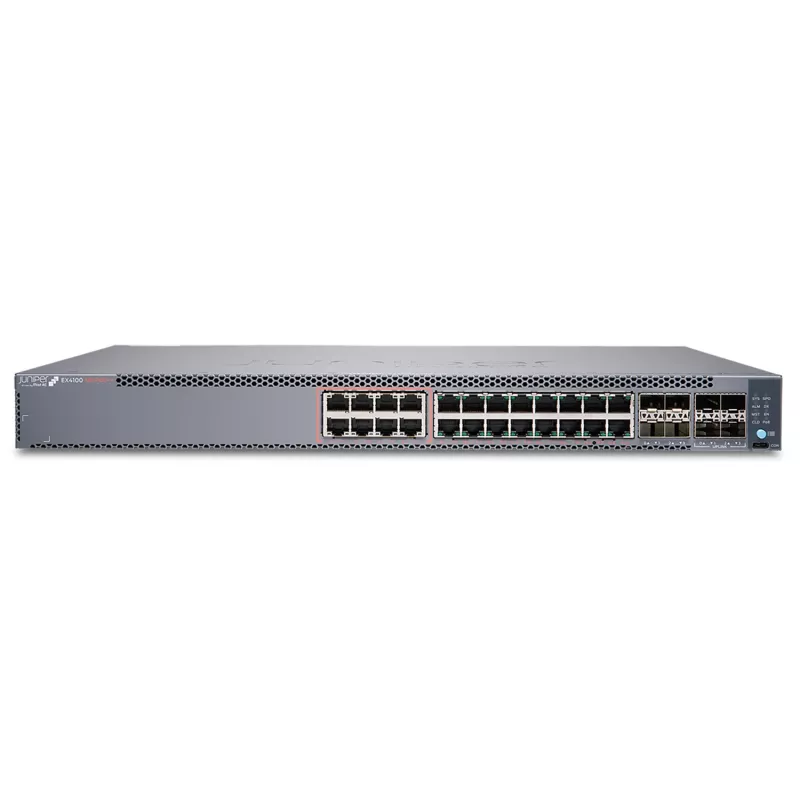

The Juniper EX4100-24MP is a high-performance, managed Layer 3 Ethernet switch designed for enterprise access and edge deployments. With 24 ports including 8 multi-gigabit PoE++ ports and 4 uplink SFP+ ports, it delivers exceptional power and connectivity for demanding environments such as wireless LANs, IoT, and security cameras.

Advantages

This switch offers a PoE budget of 740W, supporting high-power devices like PTZ cameras and Wi-Fi 6 access points. Its Virtual Chassis technology allows stacking up to 10 units for simplified management and scalability. The fan redundancy and field-replaceable power supply ensure high availability.

Suitable for

• Enterprise campus networks requiring high-density PoE++
• Edge deployments with multi-gigabit access
• Converged networks supporting voice, video, and data

Key specifications

• 24 ports: 8 x 100/1G/2.5G/5G/10GBase-T (PoE++) + 16 x 10/100/1000Base-T + 4 x 1/10G SFP/SFP+ uplinks
• Switching capacity: 272 Gbps
• Forwarding rate: 202 Mpps
• PoE budget: 740W
• Layer 3 routing: static, RIP, OSPF, BGP
• Jumbo frame support up to 9216 bytes
• MAC address table: 32,000 entries
• Form factor: 1U rack-mountable
• Security: ACLs, 802.1X, DHCP snooping, MACsec

Recommendations

Ideal for organizations upgrading to Wi-Fi 6/6E, requiring high PoE budgets and multi-gigabit speeds. The EX4100-24MP provides a future-proof solution with Juniper's reliable Junos OS.
