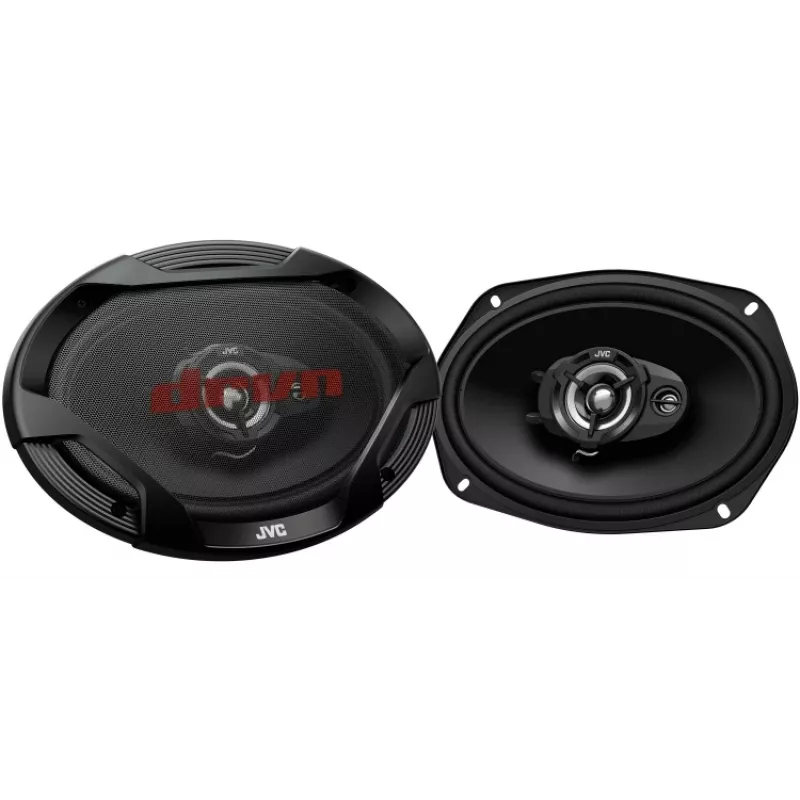

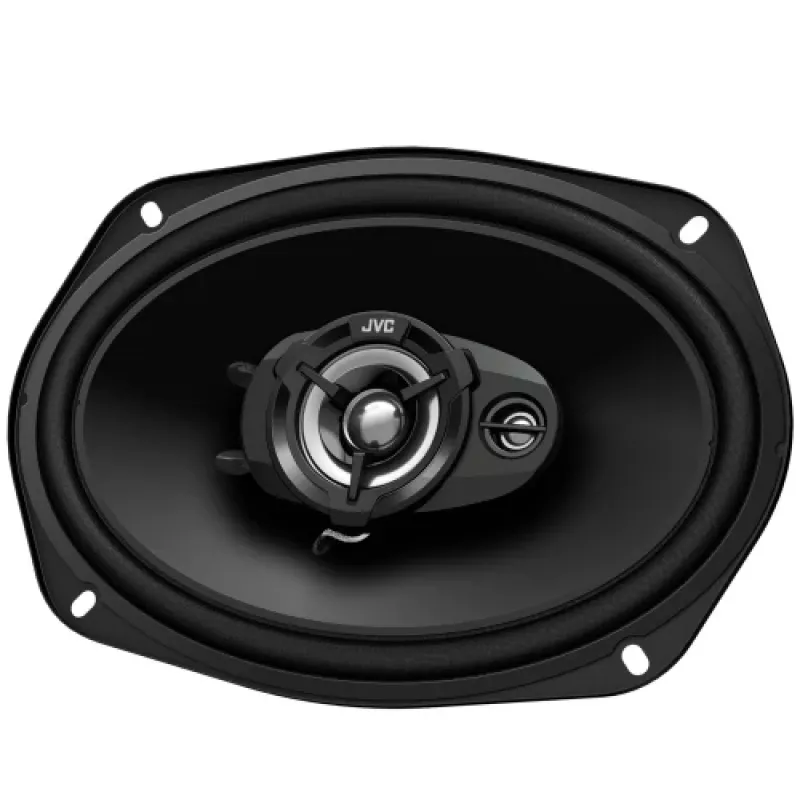

JVC CS-DR6932 altifalantes coaxiais de 3 vias 6x9 polegadas para automóvel, 500W pico, 70W RMS, woofer de carbono-mica, tweeter PEI, 4 Ohm

Factory car speakers often struggle to deliver clear highs, rich mids, and deep bass at higher volumes, leaving your music sounding flat and distorted. The JVC CS-DR6932 6x9-inch 3-way coaxial speakers solve that by combining a carbon mica woofer, poly-ether imide midrange and tweeter, and a hybrid rubber-coated cloth surround for accurate, powerful sound across the entire frequency range. With 500 watts peak and 70 watts RMS power handling, these speakers bring your favorite tracks to life without breaking a sweat.

Who is it for

These speakers are ideal for car audio enthusiasts who want a significant upgrade over factory speakers without complex installation. Whether you listen to rock, hip-hop, classical, or podcasts, the CS-DR6932 delivers balanced, detailed audio that makes every drive more enjoyable. They fit standard 6x9-inch speaker locations in many vehicles, making them a versatile choice for sedans, coupes, and SUVs.

Main features

• 3-way coaxial design with separate woofer, midrange, and tweeter for full-range sound
• Carbon mica woofer cone for lightweight rigidity and deep, punchy bass
• Poly-ether imide (PEI) midrange and tweeter domes for clear, detailed highs and mids
• Ferrite woofer magnet and neodymium tweeter magnet for efficient, powerful performance
• Hybrid rubber-coated cloth surround for durability and linear cone movement
• Handles up to 500W peak and 70W RMS power, compatible with most head units and amplifiers
• 4-ohm impedance for optimal power transfer from car audio systems
• Includes grilles for a clean, protected installation

Specifications

• Speaker type: 3-way coaxial
• Speaker size: 6x9 inches (16x23 cm)
• Peak power handling: 500W
• RMS power handling: 70W
• Impedance: 4 ohms
• Frequency response: 56 Hz – 21,000 Hz
• Sensitivity: 88 dB/W/m
• Woofer cone material: Carbon mica
• Midrange dome material: Poly-ether imide
• Tweeter dome material: Poly-ether imide
• Woofer magnet type: Ferrite
• Tweeter magnet type: Neodymium
• Surround material: Hybrid rubber coated cloth
• Mounting depth: 79 mm (3-1/8 inch)
• Cutout dimensions: 222 x 152 mm (8-3/4 x 6 inch)
• Grilles included: Yes
• Number of speakers: 2 (pair)
• Voice coil type: Kapton

Tips

For best results, pair these speakers with an amplifier that delivers 50-100 watts RMS per channel at 4 ohms. Ensure your speaker openings match the cutout dimensions, and use quality speaker wire to minimize signal loss. If your vehicle has factory grilles, you can often reuse them, but the included grilles offer a sleek aftermarket look.
