Kaiser Elektro Betonbau B1 caixa de entrada grande 1260-01 em 2 partes abertura de saída d 60 mm

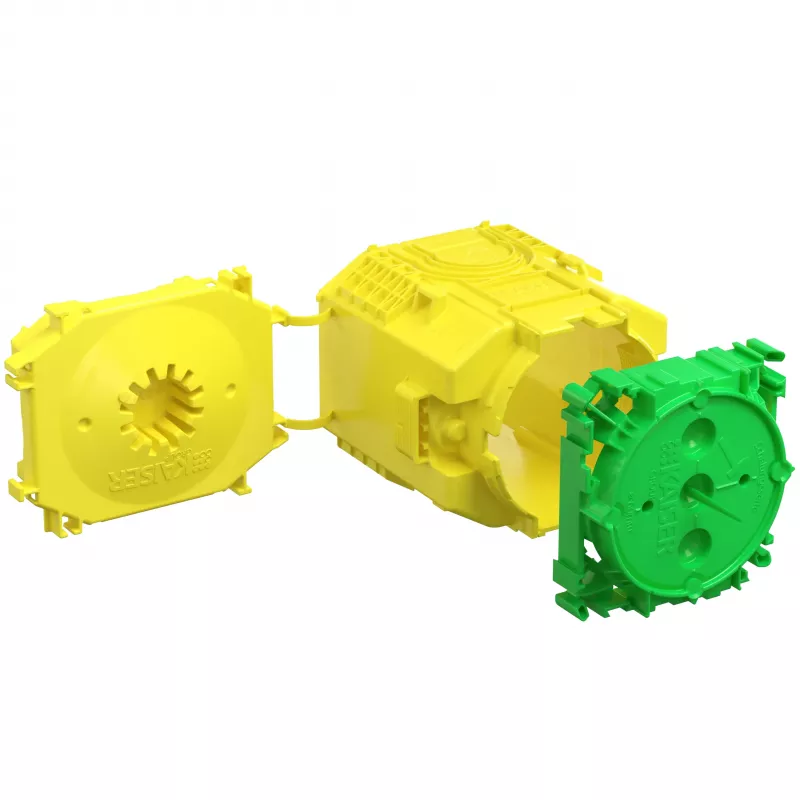

The Kaiser Elektro Betonbau B1 Large Conduit Box 1260-01 is a high-quality, flame-retardant junction box specifically designed for concrete construction. This 2-part box features a 60 mm outlet opening and is ideal for flush-mounting in in-situ and precast concrete elements. It meets the stringent B1 fire protection class according to DIN 4102-1, ensuring safety in fire protection walls and ceilings.

Advantages

This conduit box offers exceptional versatility with multiple conduit entry sizes (M20, M25, M32, M40, M50, M63) and a total of 20 entries. It is air-tight and sound-insulating, providing enhanced building performance. The halogen-free plastic material ensures low smoke emission and corrosion resistance.

Suitable for

• Concrete construction (in-situ and precast)
• Fire protection walls and ceilings
• Installations requiring flame-retardant components (B1)
• Flush-mounted electrical installations

Key specifications

• Product Type: Large Conduit Box / Junction Box
• Application: Concrete Construction
• Mounting Type: Flush-mounted
• Fire Protection Class: B1 (DIN 4102-1)
• Material: Halogen-free Plastic
• Conduit Entries: 10x M20/M25, 4x M32, 2x M40, 2x M50, 2x M63
• Outlet Opening Diameter: 60 mm
• Installation Depth: 75 mm
• Box Diameter: 120 mm
• Shape: Round
• Colour: Orange
• Special Features: Air-tight, Sound-insulating

Recommendations

For optimal performance, use with compatible conduit systems and ensure proper sealing to maintain air-tightness. Always follow local building codes and installation guidelines.
