Klauke 168TL Terminal de ponta isolado - 0,34 mm² - AWG 22 - estanhado - turquesa - polipropileno

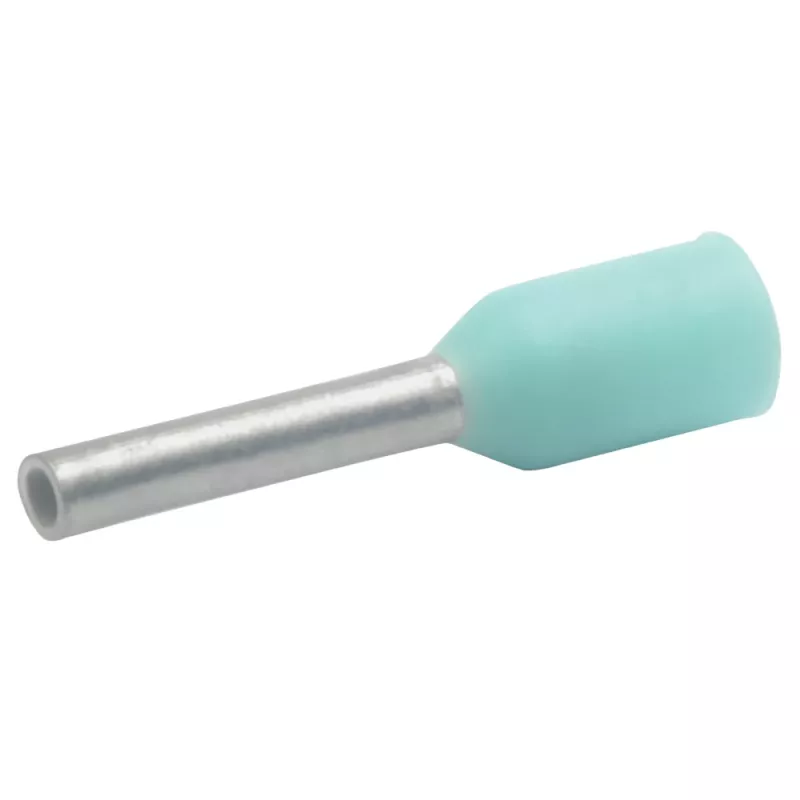

The Klauke 168TL is a high-quality insulated wire end sleeve (ferrule) designed for reliable and secure termination of stranded wires. Manufactured by Klauke, a trusted brand in electrical connection technology, this ferrule ensures a durable and professional connection in control cabinets, terminal blocks, and various electrical installations.

Advantages

This ferrule features a flared insulation design that facilitates easy wire insertion, reducing installation time and effort. The tin-plated electrolytic copper conductor provides excellent conductivity and corrosion resistance, while the polypropylene insulation offers robust protection against environmental factors. Halogen-free and RoHS compliant, it meets modern safety and environmental standards.

Suitable for

• Control cabinet wiring
• Terminal block connections
• Electrical panel assembly
• Industrial automation systems
• General electrical installations requiring secure wire termination

Key specifications

• Conductor cross-section: 0.34 mm² (AWG 22)
• Pin length: 8 mm
• Overall length: 12.4 mm
• Insulation material: Polypropylene (PP)
• Insulation colour: Turquoise
• Conductor material: Electrolytic copper, tin plated
• Inner diameter (wire entry): 0.8 mm
• Outer diameter (metal tube): 1.0 mm
• Outer diameter (insulation): 2.2 mm
• Temperature range: -40°C to +105°C
• Voltage rating: 300 V
• Standard compliance: DIN 46228 Part 4
• Halogen-free: Yes
• RoHS compliant: Yes

Recommendations

For optimal performance, use with a compatible crimping tool designed for wire end sleeves. Ensure the wire strip length matches the pin length for a secure connection.
