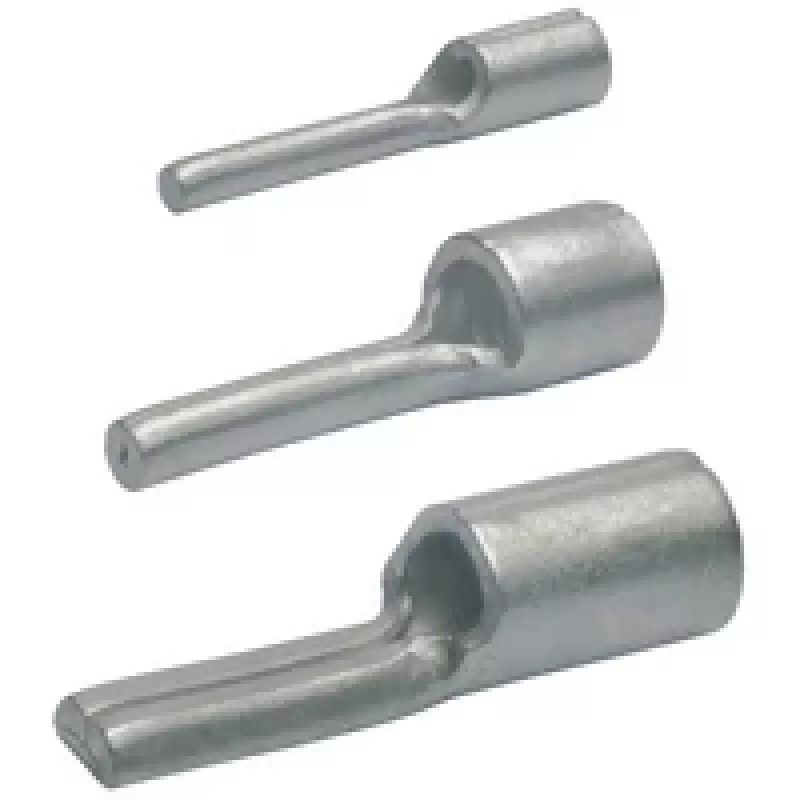

Klauke ST1719 Terminal tubular, cobre eletrolítico, estanhado eletroliticamente, 35 mm², orifício de parafuso M10, 50 unid.

The Klauke ST1719 tube cable lug is a high-quality connector designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with an electro-tinned surface, it offers excellent corrosion protection and conductivity. This uninsulated standard duty lug is suitable for stranded copper conductors (Class 2, 5, 6) and complies with DIN 46235. With a conductor cross-section of 35 mm² and a bolt hole size of M10 (10.5 mm), it is ideal for a wide range of industrial and commercial applications.

Advantages

Electro-tinned surface provides superior corrosion resistance and long-term reliability. Electrolytic copper ensures high electrical conductivity. Crimp connection method guarantees a secure and permanent joint. Suitable for use with various stranded conductor classes. Complies with DIN 46235 for quality assurance.

Suitable for

• Power distribution systems
• Control cabinets
• Industrial machinery
• Electrical installations requiring reliable cable terminations

Key specifications

• Product Type: Tube Cable Lug
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Electro-tinned
• Conductor Cross-Section: 35 mm²
• Bolt Hole Size: M10 (10.5 mm)
• Number of Pieces per Pack: 50
• Connection Method: Crimp
• Conductor Type Compatibility: Stranded Copper Conductors (Class 2, 5, 6)
• Standard Compliance: DIN 46235
• Lug Type: Standard Duty
• Insulation: Uninsulated
• Total Length: Approx. 48 mm
• Inner Diameter (Cable Entry): Approx. 8.5 mm
• Outer Diameter (Tube): Approx. 12.5 mm
• Wall Thickness: Approx. 1.5 mm
• Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V
• Corrosion Protection: Yes (due to tin plating)
• Manufacturer Series: ST
• Color: Metallic (Silver/Copper)

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines and applicable electrical codes.
