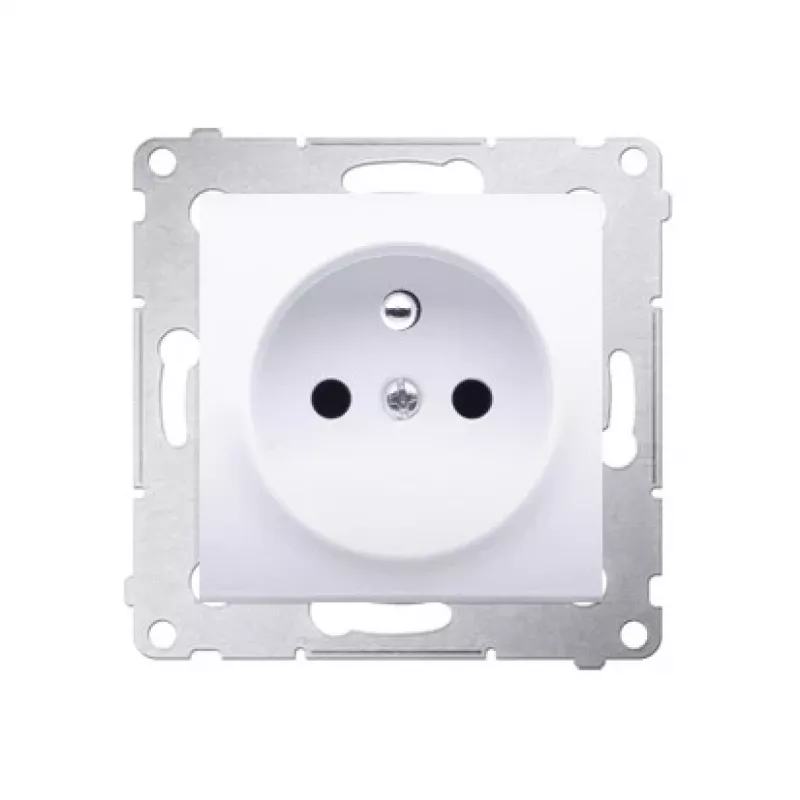

Tomada individual KONTAK-SIMON Simon 54 Premium com proteção infantil, terminais de mola, 16A 250V, branco

Every home has that one outlet that sparks worry—loose contacts, exposed terminals, or no protection against curious little fingers. The KONTAK-SIMON Simon 54 Premium single socket outlet eliminates those concerns with integrated child-protection shutters and reliable spring clamp terminals. Built for flush mounting in standard boxes, it delivers a secure, maintenance-free connection for everyday appliances up to 16 A.

Who is it for

Electricians, installers, and homeowners upgrading or renovating residential and commercial spaces. It suits anyone who values safety, quick installation, and a clean white finish that blends into modern interiors.

Main features

• Single Type E socket with earthing pin, compliant with Polish and European standards.
• Integrated shutters block access to live contacts, protecting children from accidental shock.
• Spring clamp terminals accept solid wires up to 2.5 mm²—no screws to tighten, no loosening over time.
• Rated 16 A / 250 V AC, suitable for high-power appliances like kettles, heaters, or power tools.
• Flush mounting in standard Ø60 mm boxes; one-module width fits Simon 54 frames and other compatible systems.
• High-quality white thermoplastic housing, IP20 for indoor use, easy to clean and resistant to yellowing.

Specifications

• Brand: KONTAK-SIMON
• Model: DGZ1CZ.01/11
• MPN: DGZ1CZ.01/11
• EAN: 5902787823764
• Series: Simon 54 Premium
• Socket type: Type E (French/Polish standard with earthing pin)
• Sockets quantity: 1
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Terminal type: Spring clamps (quick connection)
• Wire cross-section: up to 2.5 mm² (solid)
• Mounting type: Flush mounting
• Installation type: Standard flush-mount box (Ø60 mm)
• Number of modules: 1
• Degree of protection: IP20
• Material: High-quality thermoplastic
• Colour: White
• Compliance: PN-EN 60884-1

Tips

Pair with a Simon 54 frame in matching white for a seamless look. Use solid copper wire up to 2.5 mm²; strip 11 mm of insulation for optimal spring clamp contact. For high-humidity areas like bathrooms, consider an IP44-rated version or install outside zones.
