Leitor de cartões de proximidade RFID VIDOS ZS46, 125 kHz, Wiegand, IP65, Preto

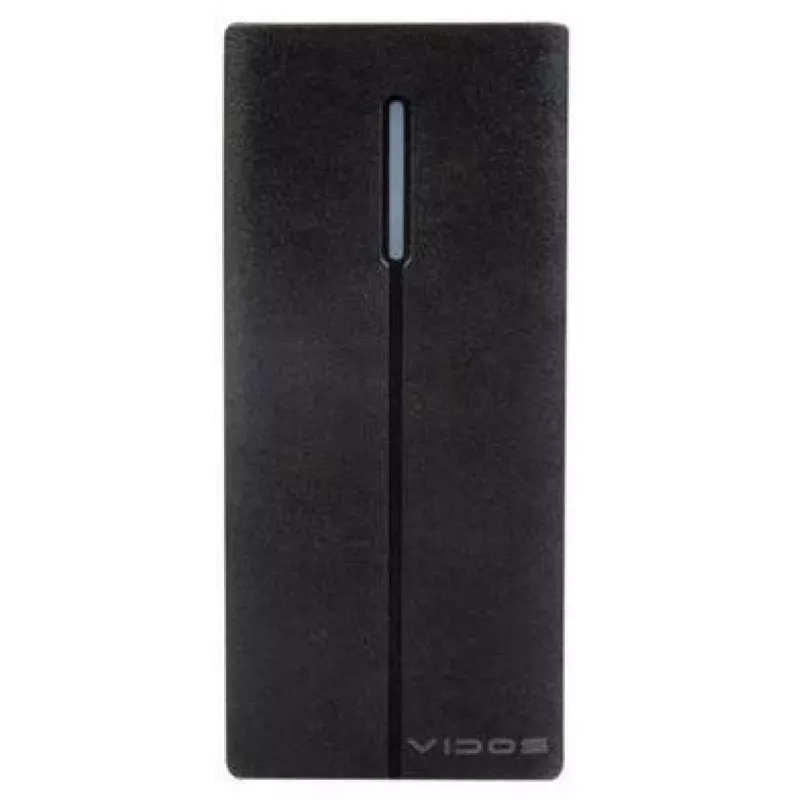

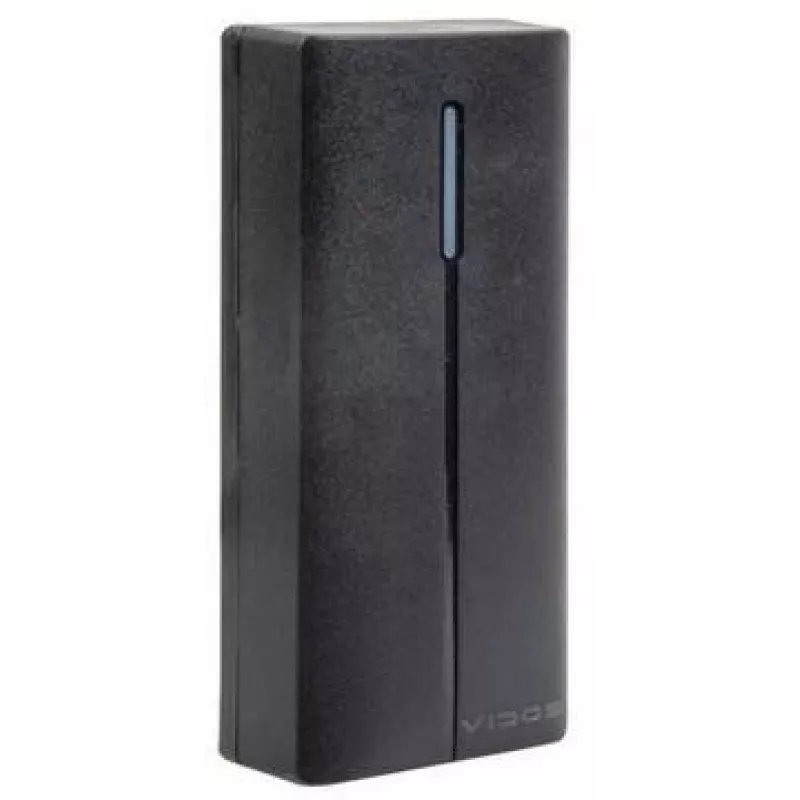

The VIDOS ZS46 is a robust RFID proximity card reader designed for secure access control systems. Operating at 125 kHz (EM Marin), it delivers reliable read ranges of 5-10 cm and supports Wiegand 26-bit/34-bit output interfaces. Encased in durable ABS plastic with an IP65 rating, it withstands harsh indoor and outdoor environments. The reader features dual-color LED indicators (red/green) and an audible buzzer for clear user feedback. Its surface-mount design and pigtail cable simplify installation. Ideal for integrating with Wiegand-compatible controllers, the ZS46 ensures seamless authentication for offices, warehouses, and restricted areas.

Advantages

High compatibility with standard Wiegand systems, weatherproof IP65 housing, low power consumption (<80 mA), and wide operating temperature range (-20°C to +50°C) ensure dependable performance in diverse conditions.

Suitable for

• Access control for office buildings, factories, and warehouses
• Integration with Wiegand-based security systems
• Indoor and outdoor installations requiring IP65 protection

Key specifications

• Reading Technology: RFID Proximity (125 kHz EM Marin)
• Output Interface: Wiegand 26-bit / 34-bit
• Reading Range: 5-10 cm
• Power Supply: 9-16V DC
• Current Consumption: <80 mA
• Indicators: LED (Red/Green), Buzzer
• Housing Material: ABS Plastic
• Ingress Protection: IP65
• Operating Temperature: -20°C to +50°C
• Operating Humidity: 10% - 90% RH (non-condensing)
• Mounting Type: Surface Mount
• Color: Black
• Cable Type: Pigtail (multi-core)
• Compatibility: Wiegand Access Control Systems
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair the ZS46 with a compatible Wiegand controller and ensure proper power supply (9-16V DC). Test reading range after installation to account for environmental factors.
