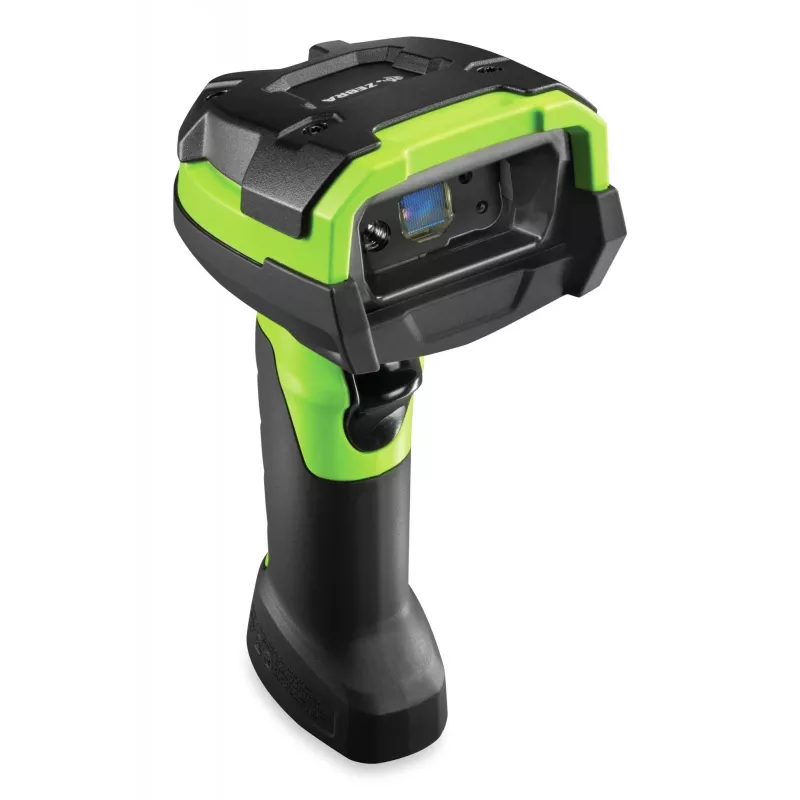

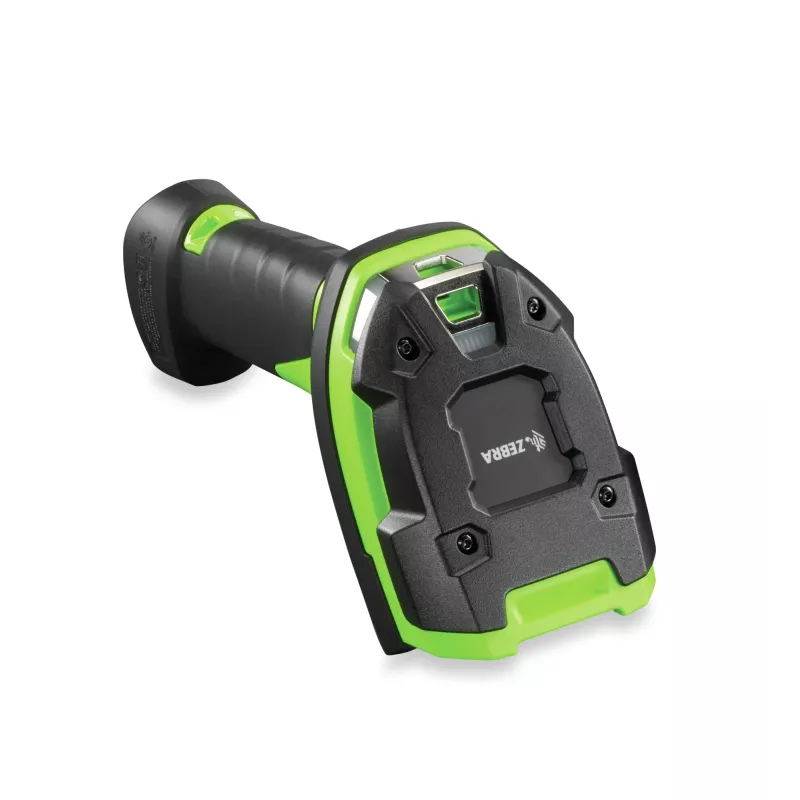

Leitor de códigos de barras de mão Zebra DS3608-SR 1D/2D LED preto, verde

The Zebra DS3608-SR handheld bar code reader is an ultra-rugged 1D/2D scanner built for warehouse and manufacturing environments. Available in corded (DS3608-SR) and cordless (DS3678-SR) versions, it captures printed and electronic barcodes from near contact up to approximately 5 ft / 1.5 m, and offers dust-tight, sprayproof and waterproof protection to IP67 standards. Wired connectivity options include RS-232 or USB, and the device is lightweight and compact for extended use.

Advantages

The DS3608-SR delivers extended working range and fast, accurate capture of virtually any 1D or 2D barcode, including damaged, poorly printed or wrapped codes. Built to the Zebra 3600 Ultra-Rugged standard, it provides industrial-grade durability (IP67) and an IP65-sealed cradle for cordless deployments. Management tools enable remote configuration, firmware updates, data formatting and battery monitoring for simpler device administration.

Suitable for

• Warehouse inventory and goods receiving
• Manufacturing floor tracking and work-in-progress
• Shipping, packing and quality control
• Retail backroom and stock replenishment

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED
• Connectivity: Wired (RS-232, USB)
• Working range: up to ~1.5 m (5 ft) for standard range models
• Durability: IP67 (scanner); cradle IP65
• Battery (cordless models): 3100 mAh Lithium‑Ion
• Weight: 0.305 kg
• Supported 1D codes: Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Code 128, Code 11, Codabar, UPC
• Supported 2D codes: MaxiCode, Aztec, Composite Codes, Data Matrix, Han Xin, Micro QR, MicroPDF417, PDF417, QR Code, TLC-39
• Colours: Green, Black
• Manufacturer model: DS3608-SR (MPN: DS3608-SR3U4600VZW)

How to use

Connect the corded DS3608-SR to your host system using the appropriate cable (USB or RS-232) and install any required drivers or middleware. For cordless operation with the DS3678-SR, place the scanner in the IP65-sealed cradle to charge and establish the host connection. Aim the scanner at the barcode and pull the trigger; the reader will decode printed and electronic 1D/2D codes within its working range. Use the Zebra management tools to configure symbologies, data formatting and interfaces as required by your business applications.

Recommendations

For reliable performance, keep the scanner window clean and use the appropriate connectivity and configuration for your environment. Use cordless models with the sealed cradle in areas exposed to dust or moisture, and monitor battery statistics via the provided management tools to schedule charging and replacements proactively.
