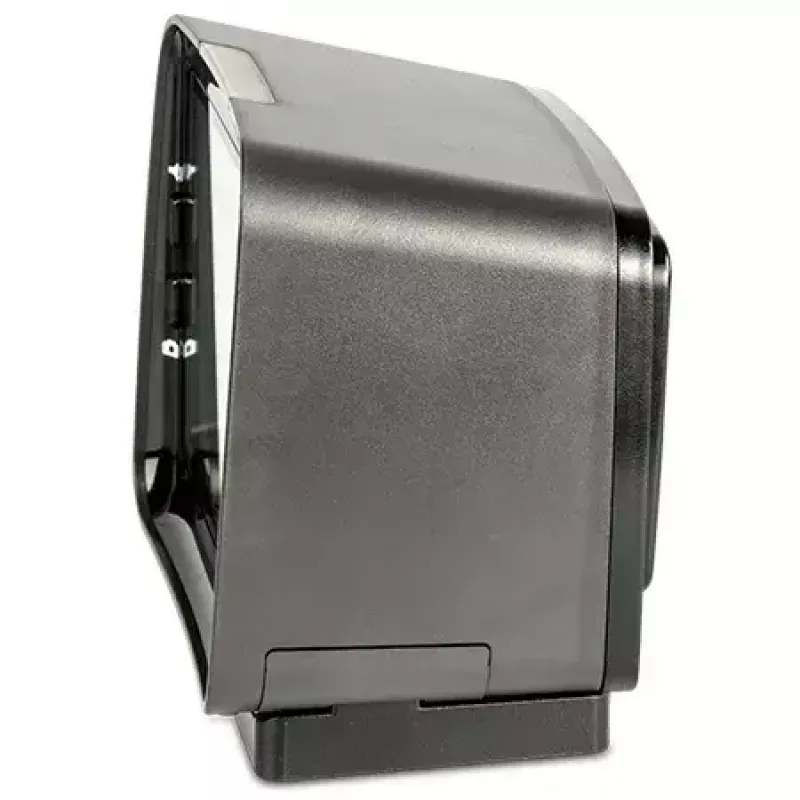

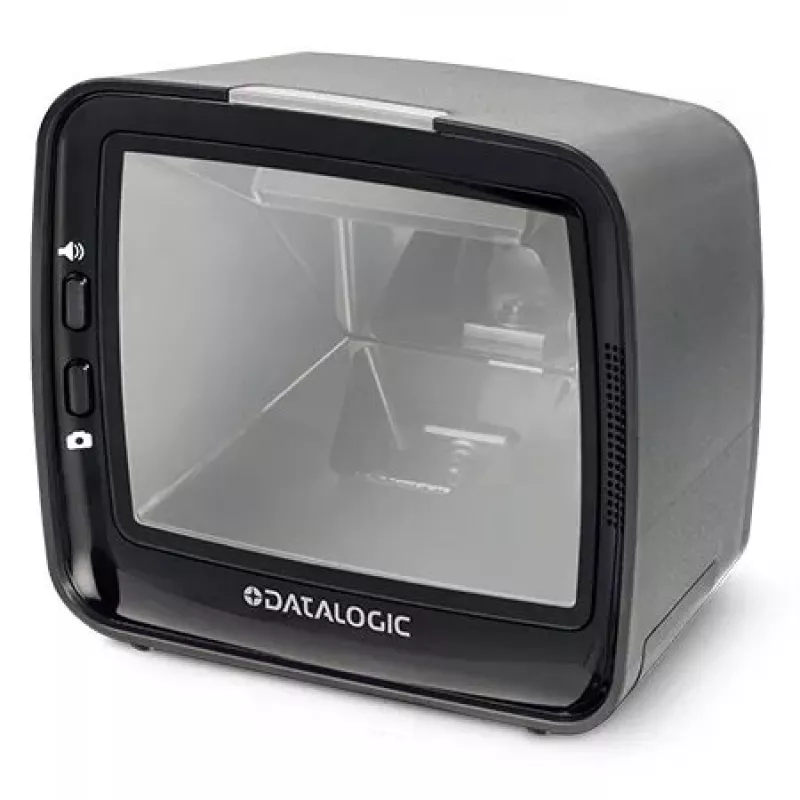

Leitor de códigos de barras fixo Datalogic Magellan 3450VSi

The Datalogic Magellan 3450VSi is a compact fixed barcode reader designed for high-performance scanning of 1D and 2D codes. It combines solid-state electronics, image capture, and a large intuitive scan zone to deliver reliable decoding for printed and on-screen barcodes while remaining easy to service and integrate into retail and point-of-sale environments.

Advantages

Class-leading decoding performance for 1D, 2D and Digimarc barcodes improves throughput and supports codes displayed on smartphones as well as printed media. Object Sense illumination control dynamically adjusts LED output to reduce glare and power consumption. Multiple interface options (RS-232, OEM USB, USB Keyboard and USB COM) and a Micro-SD slot plus Micro-B USB service port allow flexible connectivity and remote management. The all solid-state design, quality materials and IP52 protection provide reliable operation in retail environments.

Suitable for

• Retail point-of-sale scanning of 1D and 2D barcodes
• Self-checkout and unattended kiosks requiring reliable fixed scanning
• Environments needing smartphone-presented barcode scanning (including Digimarc)
• Systems integration where multiple wired interfaces are required

Key specifications

• Scanner type: 1D/2D fixed barcode reader
• Sensor type: LED image sensor
• Supported codes: QR Code, MaxiCode, Data Matrix, Aztec Code, Digimarc
• Connectivity: RS-232, OEM USB, USB Keyboard, USB COM (wired)
• Read rate (max): 39,000,000 reads/s (manufacturer specification)
• Power and cabling: AC power, cable length 4.5 m
• Protection: IP52
• Weight: 0.6 kg
• Color: Black

How to use

Install the Magellan 3450VSi at the checkout or kiosk location and connect it to the host system using the chosen wired interface (RS-232, OEM USB, USB Keyboard or USB COM). Power the unit from the AC supply and ensure the cable routing maintains the 4.5 m reach without strain. Present printed or on-screen barcodes within the scan zone and sweep the code through the scan area until the reader confirms a successful decode. Use the Micro-B USB service port or Micro-SD card slot for firmware updates and configuration changes when required.

Recommendations

Place the scanner to allow comfortable, repeatable sweep scanning and avoid direct, intense lighting on the scan window. Use the Object Sense illumination feature to minimize glare for customers and staff. For reliable long-term operation, keep the scanning window clean and perform firmware updates via the Micro-SD or service port as advised by Datalogic.
