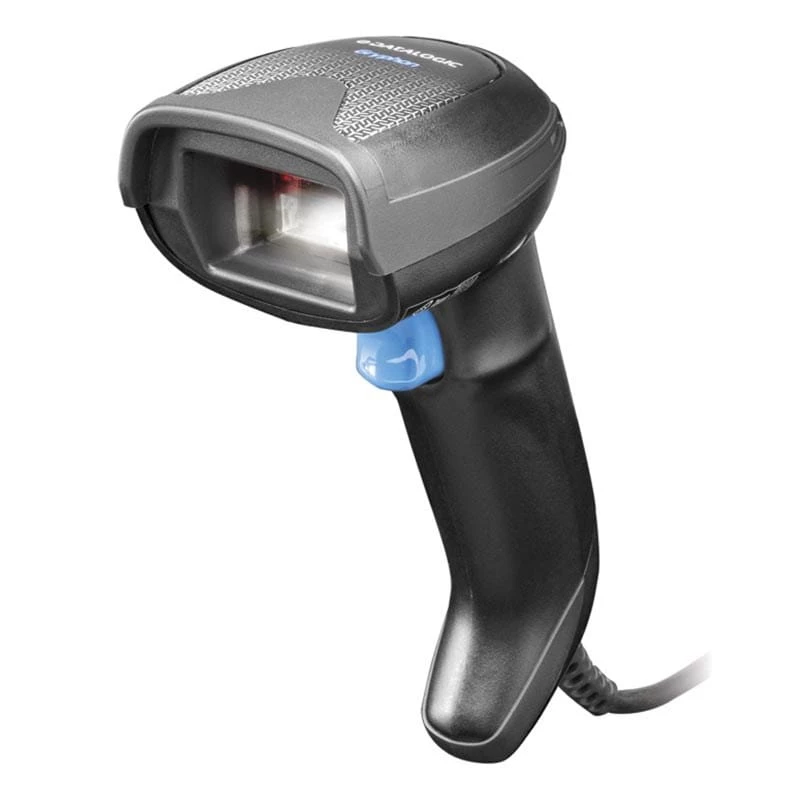

Leitor de códigos de barras portátil Datalogic Gryphon I GD4500

The Datalogic Gryphon I GD4500 is a corded handheld 1D/2D barcode reader designed for general purpose applications. The desktop (corded) variant combines a compact, ergonomic housing with a high-resolution megapixel sensor and warm-white illumination to deliver reliable scanning of both linear and matrix codes. Motionix™ motion-sensing technology enables automatic switching between handheld and presentation modes, and a visible 4-dot aimer with center cross helps target scans while reducing accidental reads. A Healthcare model with disinfectant-ready and anti-microbial enclosure is available for medical settings.

Advantages

The Gryphon I GD4500 offers advanced 2D imaging performance with warm-white illumination that improves readability of colored labels and is gentler on the eyes. Motionix™ automatically detects operator movement for seamless mode switching, providing both hands-free presentation and handheld reading without manual configuration. The 4-dot aimer defines a precise reading zone to reduce misreads, while the compact, lightweight design and corded USB connectivity ensure stable power and data transfer for continuous operation.

Suitable for

• Retail point-of-sale scanning of 1D and 2D barcodes
• Inventory and stock management in warehouses and storerooms
• Healthcare environments (use Healthcare model) for patient wristbands and specimen labels
• Office and logistics applications requiring reliable corded scanning

Key specifications

• Scanner type: 1D/2D imager
• Connectivity: Wired (USB)
• Power supply: 5 V DC (via USB)
• Weight: 0.161 kg
• Dimensions (approx.): 68 mm (W) × 109 mm (D)
• Supported linear (1D) codes: Code 39, UPC, POSTNET, PLANET, PDF417, JAN, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, EAN-13
• Supported 2D codes: PDF417, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, Aztec Code, QR Code
• Product colour: Black
• Ingress protection: IP52 (shock/dust resistance)

How to use

Connect the Gryphon I GD4500 to a host system using the supplied USB cable. Place the scanner on a desk or stand if hands-free presentation is required; Motionix™ will detect operator movement and switch to the appropriate mode automatically. Aim the 4-dot aimer at the barcode and press the trigger (or present the barcode within the aimer field for presentation mode). The imager reads both 1D and 2D codes; confirmation is provided by the device’s indicators and host software. For disinfectant-ready Healthcare models, follow facility protocols for cleaning and disinfection of the enclosure.

Recommendations

Use the warm-white illumination to scan colored or low-contrast labels and position barcodes within the 4-dot aimer for precise reads. For continuous high-volume scanning, keep the scanner connected to a stable USB power source and, where required, choose the Healthcare model with disinfectant-ready housing for clinical environments.
