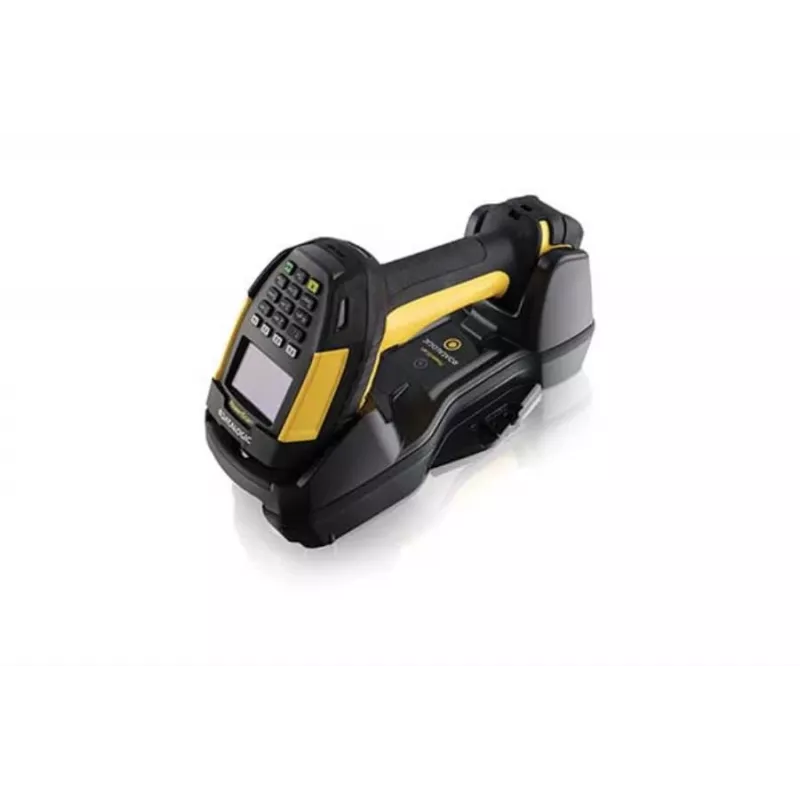

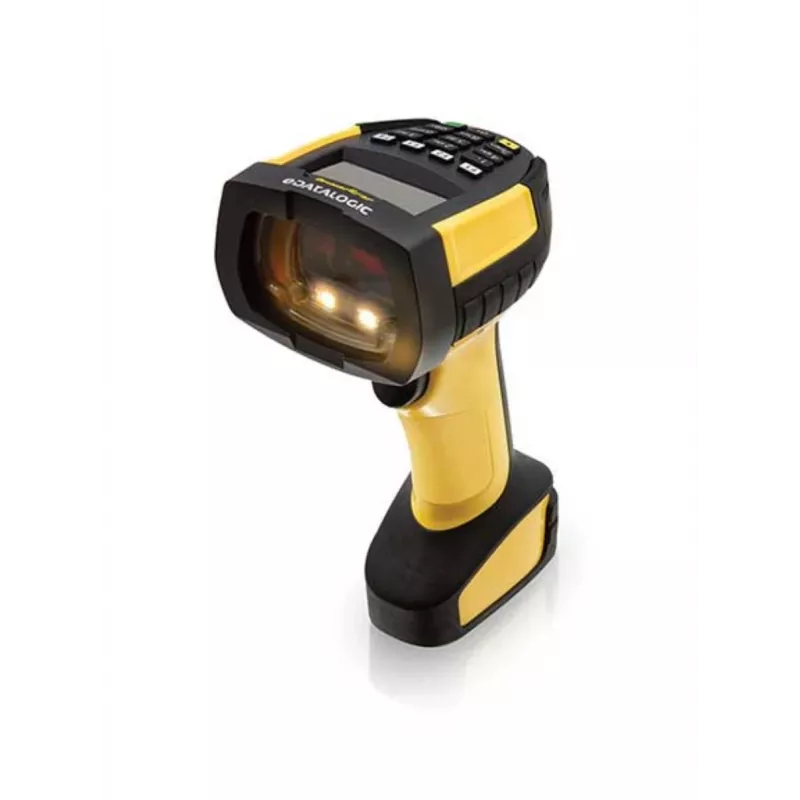

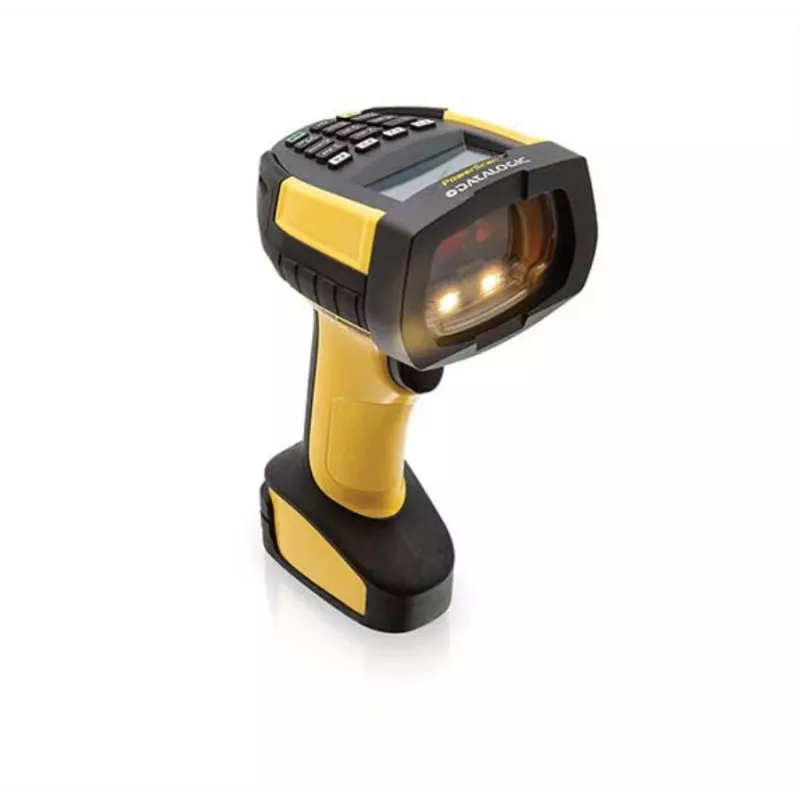

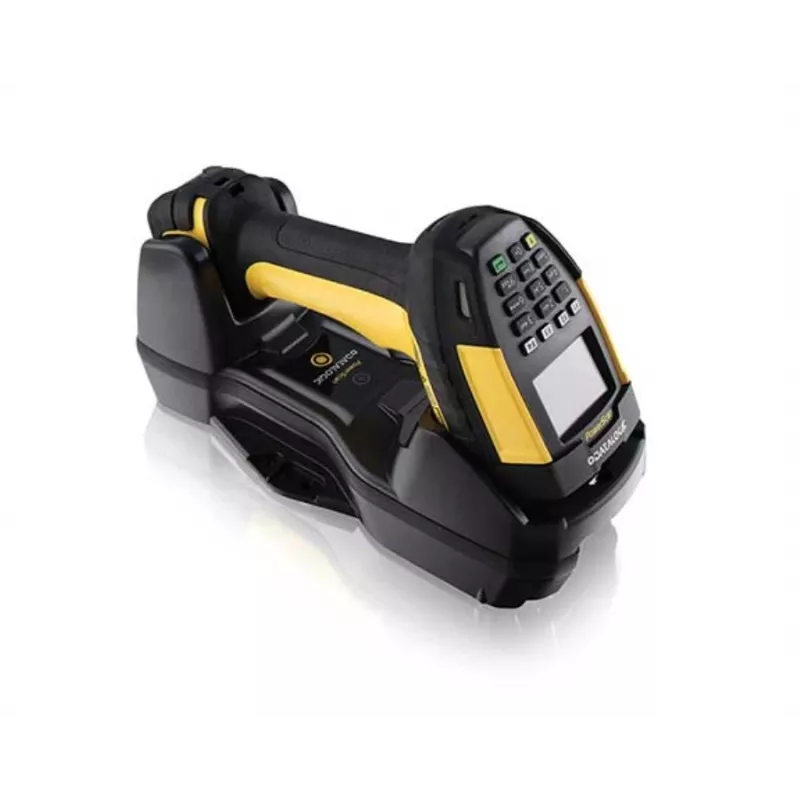

Leitor de códigos de barras portátil Datalogic PM9600-DKHP433RK10 1D/2D laser com fios sem fios

The Datalogic PowerScan PM9600-DKHP433RK10 is a rugged handheld barcode reader for 1D and 2D codes, offered here as a kit that includes the scanner, BC9630-433 cradle, CAB-552 cable, power supply 8-0935 and power cord 6003-0940. Designed for industrial use, the device supports 433 MHz wireless communication, has a removable Lithium-Ion battery and an OLED display with a 16-key keypad. The scanner is rated IP65 and IP67 for dust and water protection and is built to withstand drops and heavy use.

Advantages

The PowerScan PM9600 delivers high reading performance with models optimized for standard, high-performance and document capture tasks. Its durable construction resists 2.5 m drops and the trigger is rated for up to 10 million actuations. The cradle supports wireless charging to avoid contact-related failures, and exchangeable communication modules in the cradle allow easy configuration for RS-232, USB, USB-C, Ethernet, EtherNet/IP or PROFINET. STAR narrow-band radio is available for robust wireless operation in dense industrial environments and supports up to 16 scanners per cradle.

Suitable for

• Manufacturing floor traceability and work-in-progress scanning
• Warehouse receiving, picking and inventory management
• Intralogistics and conveyor or sortation scanning
• Retail backroom operations and high-use scanning environments

Key specifications

• Model: Datalogic PowerScan PM9600-DKHP433RK10 (PM9600 series)
• Scan types: 1D and 2D barcode scanning
• Connectivity: Wired and wireless, 433 MHz; cradle configurable for RS-232, USB, USB-C, Ethernet, EtherNet/IP, PROFINET
• Cradle included: BC9630-433
• Kit contents: scanner, cradle BC9630-433, cable CAB-552, power supply 8-0935, power cord 6003-0940
• Ingress protection: IP65 and IP67
• Battery: Removable Lithium-Ion (wireless charging supported in cradle)
• Durability: 2.5 m drop resistance; trigger rated to 10 million actuations
• Display and input: OLED display with 16-key keypad
• Weight: approx. 455 g (device only)

How to use

Install the cradle and connect the supplied CAB-552 cable and power supply to provide power and host connectivity. Charge the scanner by placing it in the BC9630-433 cradle; the cradle supports wireless charging so no contact cleaning is required. Switch the scanner on, select the required communication mode via the cradle or device settings, and aim the scanner at barcodes to capture 1D or 2D codes. Use the keypad and OLED display to enter or confirm data and monitor device status and battery health. For wireless operation, pair the scanner with the cradle or configured STAR radio network as described in the product user manual.

Recommendations

For reliable long-term operation, use the cradle’s wireless charging and the exchangeable communication modules to match your current network. Use the STAR narrow-band radio in dense wireless environments and schedule maintenance based on battery health and cradle-reported device status to minimize unplanned downtime.
