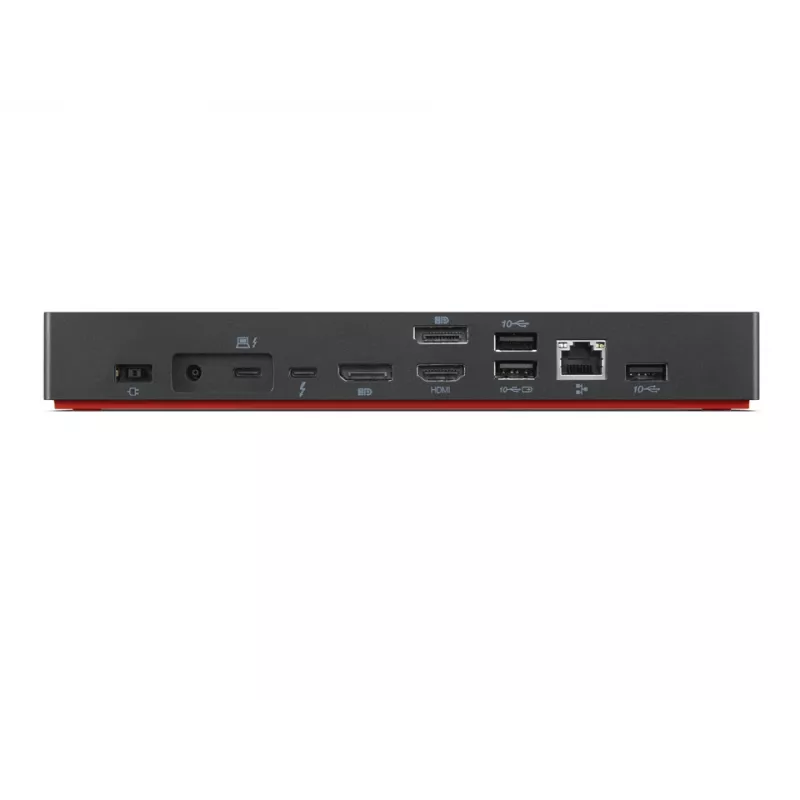

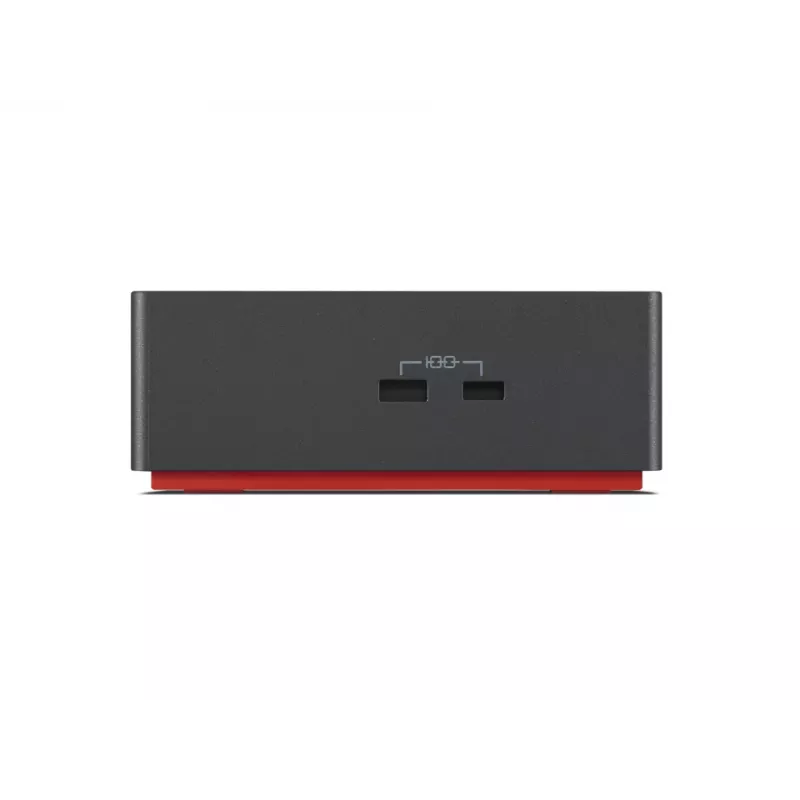

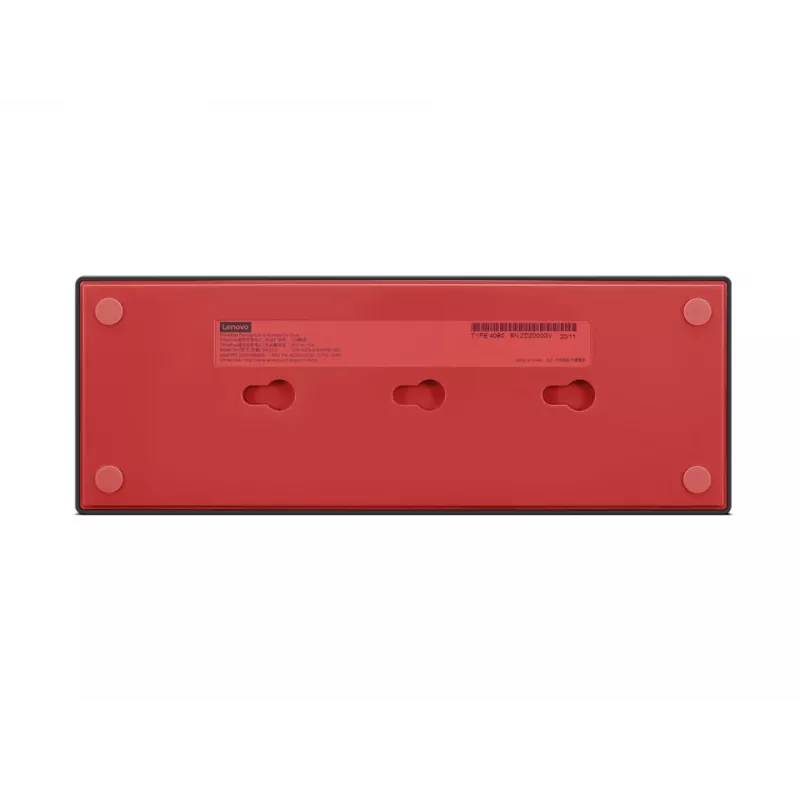

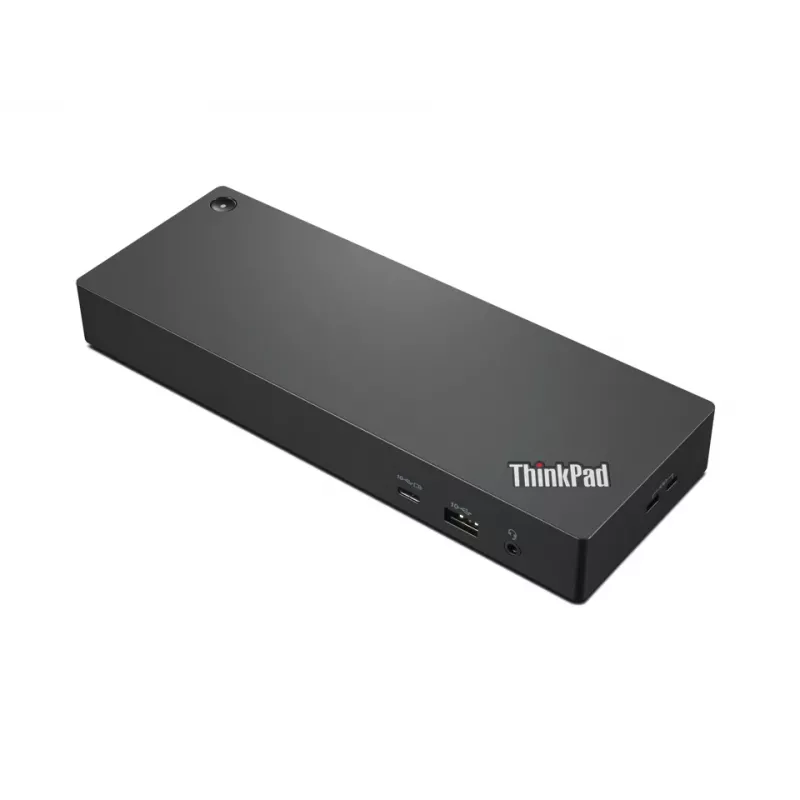

Lenovo ThinkPad Thunderbolt 4 WorkStation com fios preto, vermelho

The Lenovo ThinkPad Thunderbolt 4 WorkStation Wired Black Red is a Thunderbolt 4 docking station designed for professional use. It provides high-bandwidth video, data and power connectivity through a wired Thunderbolt 4 host interface, supports up to 8K display output or multiple 4K displays, and delivers USB Power Delivery up to 230 W to compatible workstations. With a 40 Gbit/s data transfer rate and 10/100/1000 Mbit/s Ethernet support, it is intended for demanding workflows that require stable performance and broad peripheral support.

Advantages

This dock combines high-speed Thunderbolt 4 connectivity with multiple USB 3.2 Gen 2 Type-A ports and HDMI output, enabling fast data transfer and flexible display configurations. It supports up to 230 W power delivery to the workstation while the included power supply provides 300 W at 20 V output, and offers silent firmware upgrades plus VPro/AMT compatibility for enterprise management. The compact wired design and familiar ThinkPad build make it suitable for office and mobile workstation setups.

Suitable for

• Connecting multiple high-resolution displays (8K or multiple 4K)
• High-bandwidth data transfer and external peripherals
• Powering compatible ThinkPad workstations via USB Power Delivery up to 230 W
• Office and enterprise environments with managed firmware and VPro/AMT support

Key specifications

• Host interface: Thunderbolt 4 (wired)
• Data transfer: up to 40 Gbit/s
• Display support: up to 8K Ultra HD or multiple 4K displays
• USB ports: 4 × USB 3.2 Gen 2 Type-A
• HDMI ports: 1
• Ethernet: 1 × RJ-45, 10/100/1000 Mbit/s
• Power delivery: up to 230 W to workstation; power supply 300 W, output 20 V
• Colour: Black, Red
• Weight: 0.45 kg

How to use

Connect the dock to a compatible Thunderbolt 4 host port on your laptop using the supplied cable. Attach displays to the HDMI (or other display outputs supported by the dock) and connect USB peripherals to the USB 3.2 Gen 2 Type-A ports. Plug the dock into mains power using the provided 300 W power supply to enable up to 230 W USB Power Delivery to the workstation. Use the Ethernet RJ-45 port for wired network access. For enterprise features such as firmware updates and VPro/AMT management, follow your IT department’s procedures.

Recommendations

For reliable high-resolution video and maximum power delivery, use certified Thunderbolt 4 cables and connect directly to a laptop Thunderbolt 4 port. Ensure the workstation supports USB Power Delivery at the required wattage and keep firmware up to date for best interoperability.
