LICATEC calha para cabos 25 x 75 mm sem halogéneos cinzento 7670-1

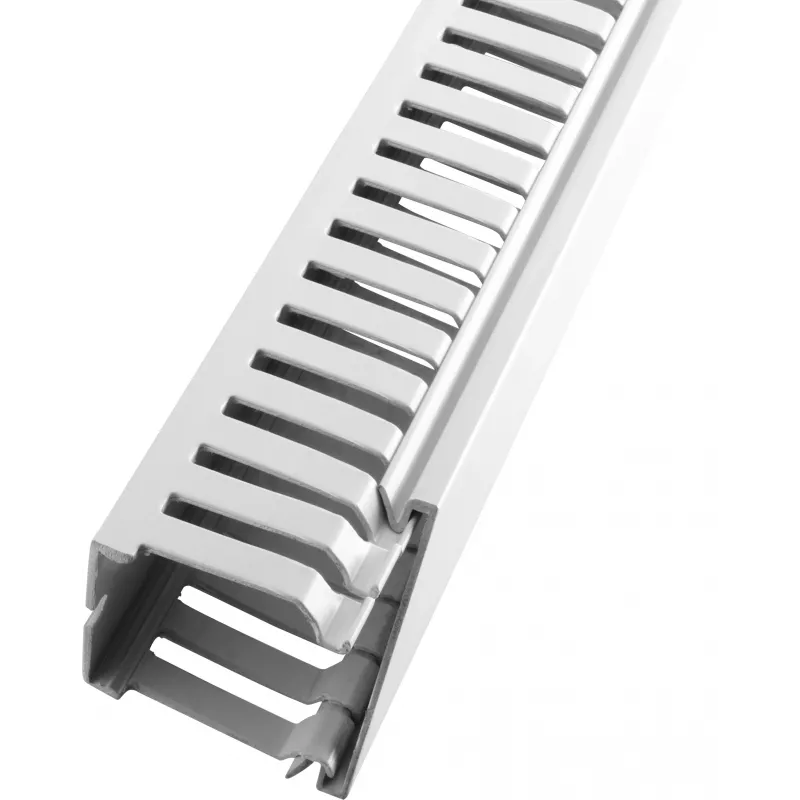

The LICATEC 7670-1 wiring duct is a high-quality, halogen-free cable management solution designed for professional use in control cabinets, electrical enclosures, and industrial automation systems. Manufactured to DIN EN 50085-2-3 standards, this slotted duct provides reliable organization and protection for wiring installations.

Advantages

Halogen-free material ensures safety in case of fire, reducing toxic and corrosive gases. Self-extinguishing with UL94 V-0 flammability rating. Easy screw mounting and included lid for quick installation and secure cable retention.

Suitable for

• Control cabinets and electrical enclosures
• Industrial automation systems
• Building infrastructure wiring
• Any application requiring organized, safe cable routing

Key specifications

• Product Type: Wiring Duct
• Material: Halogen-free plastic (e.g., Noryl/PC-ABS)
• Halogen-Free: Yes
• Color: Grey (RAL 7035)
• Width: 25 mm
• Height: 75 mm
• Length: 2000 mm
• Slot Type: Slotted
• Mounting Type: Screw Mounting
• Operating Temperature: -25°C to +90°C
• Flammability Rating: UL94 V-0
• Standards Compliance: DIN EN 50085-2-3
• Lid Included: Yes
• Resistance: Self-extinguishing

Recommendations

For optimal cable management, pair with compatible LICATEC accessories. Ensure proper mounting and adhere to local electrical codes.
