Ligação de alimentação de tira LED EUROLITE 50530070 4 polos para tira de 10 mm

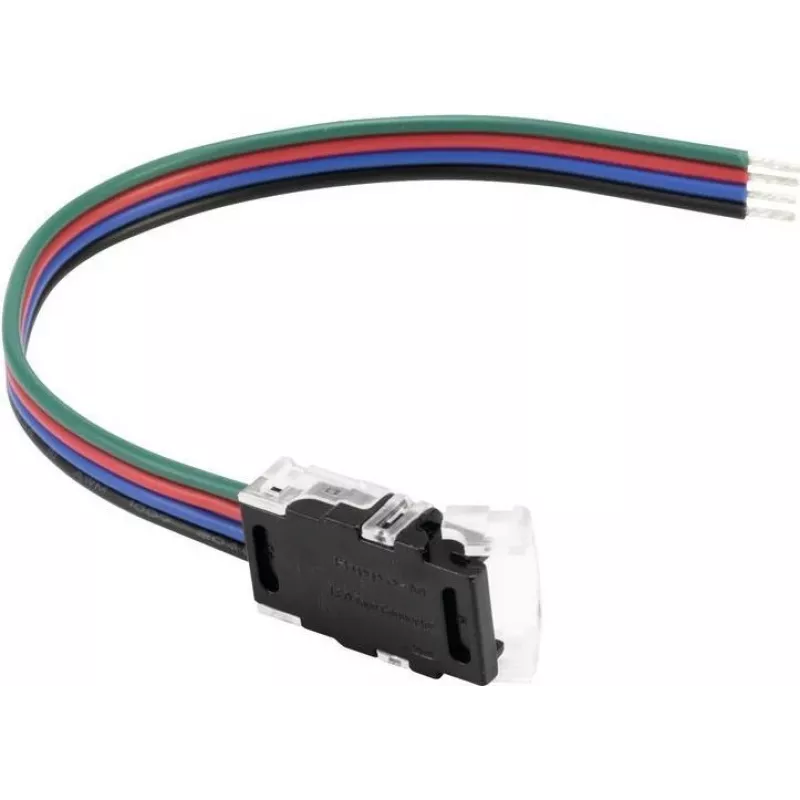

EUROLITE 50530070 is a 4-pin power connector designed for 10 mm LED strips. It provides a compact, tool-friendly way to connect a power source to 4-conductor LED tape, commonly used with RGB and other multichannel LED strips. The connector enables quick connections without soldering, reducing installation time and simplifying maintenance for lighting projects and repairs.

Advantages

The connector offers a secure mechanical connection that preserves conductor alignment and contact integrity. Its form factor is suitable for tight spaces and inline repairs, while the plug-style interface makes it easy to disconnect and reattach during troubleshooting. The assembly requires no special tools or soldering skills, lowering the barrier for both professional installers and hobbyists.

Key specifications

How to use

Align the 10 mm LED strip so that its four copper contact pads match the corresponding contacts inside the connector. Insert the strip fully into the connector housing until it seats against the stop. Press the locking mechanism or close the clamp according to the connector design to secure the contacts. Connect the power lead to the opposite side if required, ensuring polarity and channel order are maintained. Verify the connection visually and test the strip with a suitable power supply before final installation.

Recommendations

Ensure strips are clean and free of adhesive residue at the contact pads to maintain reliable conductivity. Avoid excessive bending at the connector; provide strain relief where possible. Use the connector within the voltage and current limits of the LED strip and power supply, and check polarity/channels before powering on.
