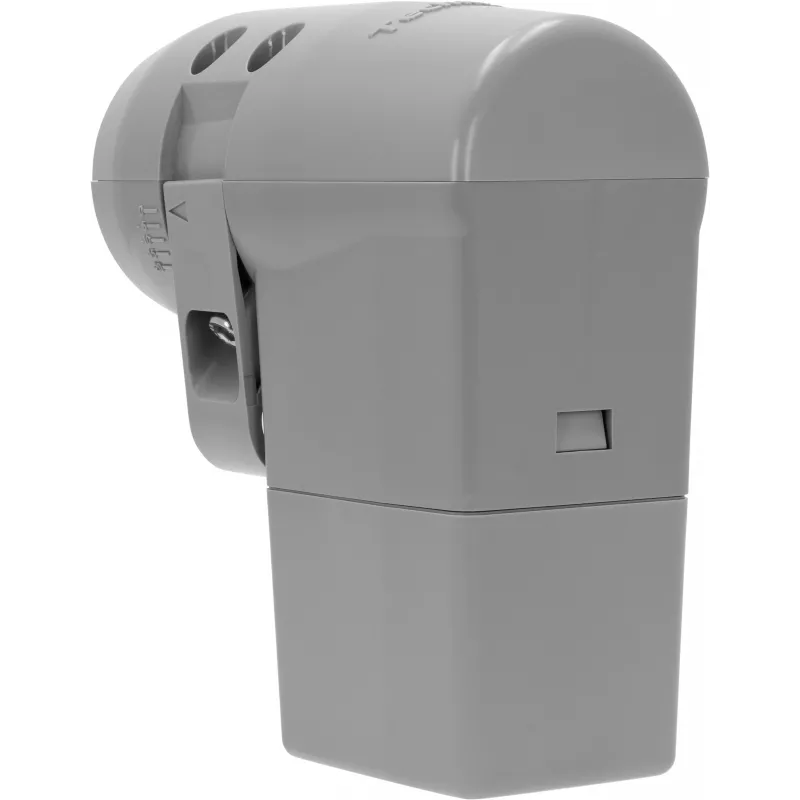

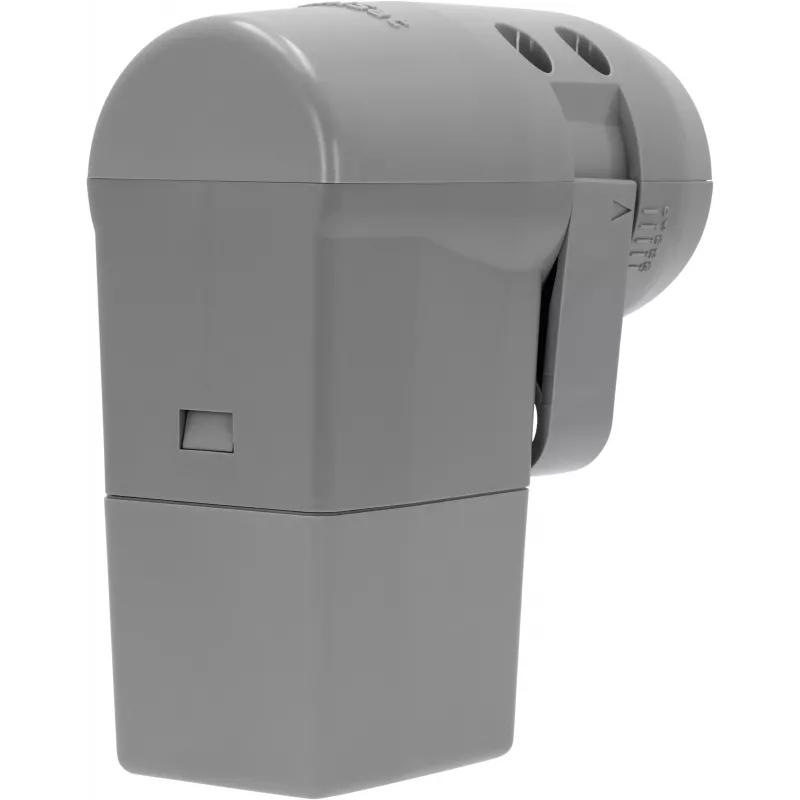

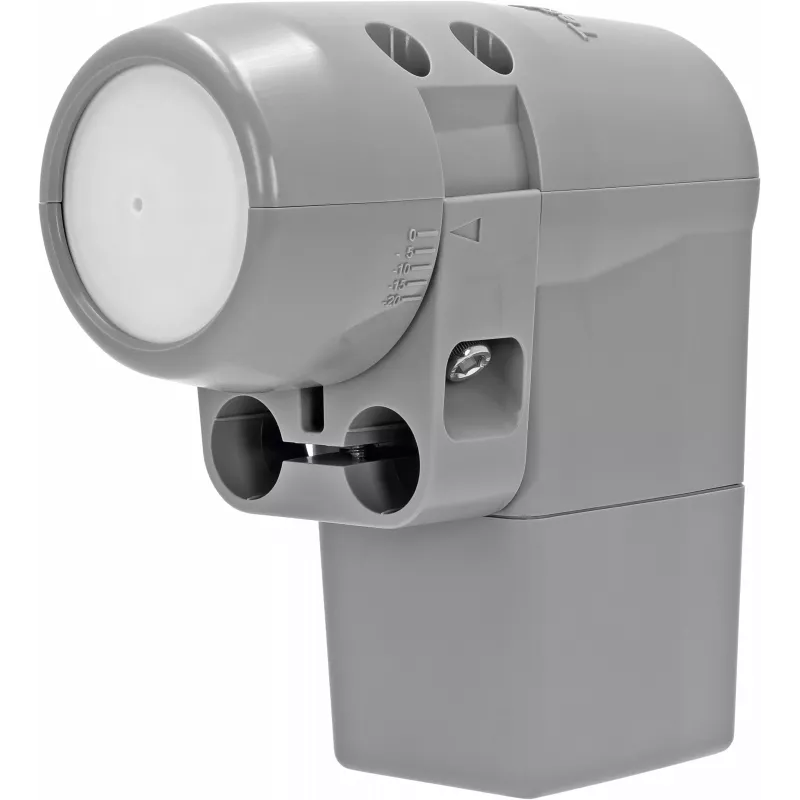

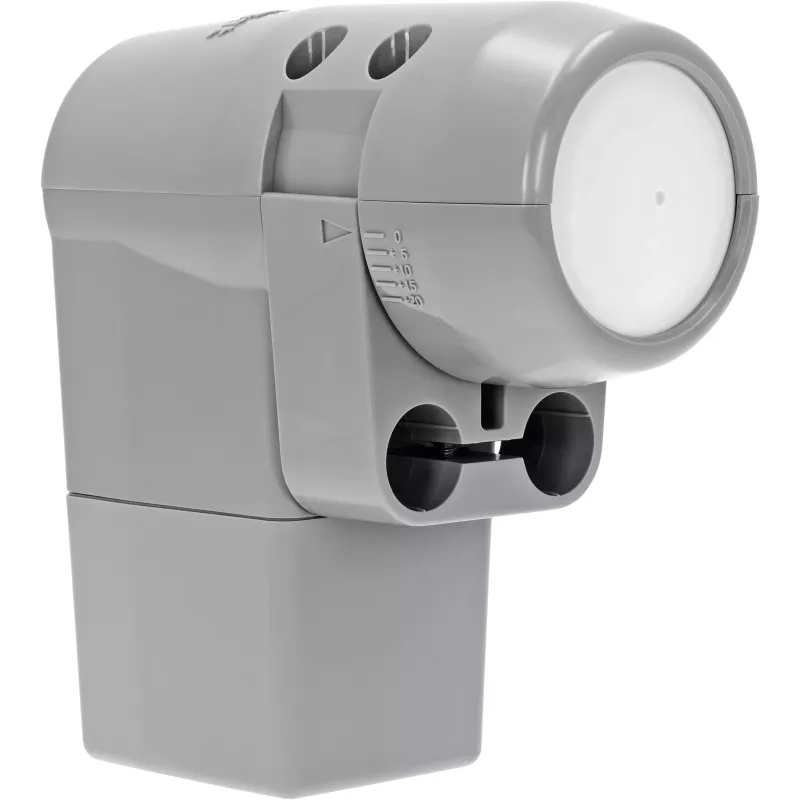

LNB universal Octo TechniSat UNYSAT - 8 saídas, feed 40mm, figura de ruído 0,1dB 0010/8988

With a noise figure of just 0.1 dB, the TechniSat UNYSAT Universal Octo LNB delivers exceptionally clean signal reception for satellite TV across eight independent outputs.

Overview

The TechniSat UNYSAT Universal Octo LNB (model 0010/8988) is a high-performance satellite reception component designed for multi-user installations. It features a universal LNB type with eight F-type outputs, enabling connection of up to eight receivers or tuners simultaneously. The LNB covers the full Ku-band input frequency range from 10.7 to 12.75 GHz, with low and high band local oscillator frequencies of 9.75 GHz and 10.6 GHz respectively. Its 40 mm feed diameter fits standard satellite dishes, and the retractable weather protection shields F-connectors from the elements.

What stands out

• Eight independent outputs for multi-receiver setups
• Ultra-low noise figure of 0.1 dB for weak signal reception
• Wide input frequency range covering all Ku-band channels
• Retractable weather protection for durable outdoor use
• Suitable for HDTV and 4K UHD broadcasts

Technical details

• LNB Type: Universal Octo LNB
• Number of Outputs: 8
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Local Oscillator Frequency (Low Band): 9.75 GHz
• Local Oscillator Frequency (High Band): 10.6 GHz
• Noise Figure: 0.1 dB
• Conversion Gain: 50 - 60 dB
• Cross-Polarization Isolation: > 20 dB
• Current Consumption: Max. 200 mA per output
• Feed Diameter: 40 mm
• Connector Type: F-type
• Operating Temperature: -30°C to +60°C
• Polarization: Linear (Vertical/Horizontal)
• Switching Control: 13/18V, 22kHz, Tone Burst

Our verdict

A robust and versatile octo LNB that excels in multi-receiver installations, offering low noise and full Ku-band coverage with weather-resistant design.
