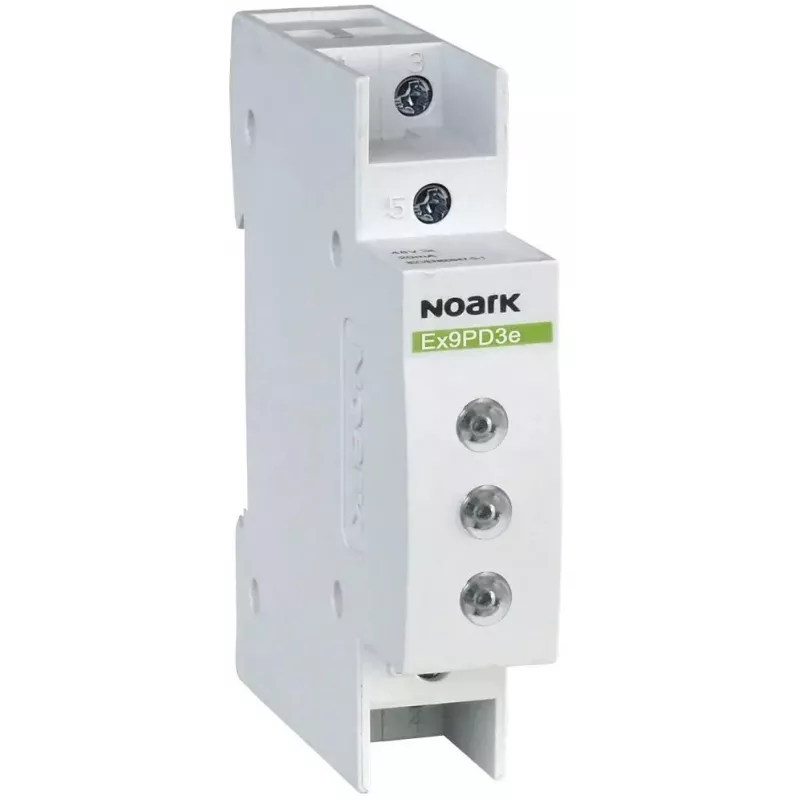

Luz de sinalização NOARK Ex9PD3e, 230/400V AC/DC, 3 x LED vermelho, calha DIN

The NOARK Ex9PD3e is a high-quality signal lamp designed for industrial control panels and electrical distribution boards. It features three bright red LEDs for clear visual indication, operating on both AC and DC voltages from 230 to 400 V. The lamp is mounted on a DIN rail with a compact 1-module width (18 mm), making it ideal for space-saving installations.

Advantages

Long LED lifespan of over 50,000 hours reduces maintenance costs. Wide operating voltage range (230/400 V AC/DC) ensures compatibility with various systems. Robust design with IP40 front protection and IP20 terminal protection for reliable performance in demanding environments.

Suitable for

• Industrial control panels
• Electrical distribution boards
• Machine status indication
• Process automation systems

Key specifications

• Light Source: LED
• Number of LEDs: 3
• LED Color: Red
• Operating Voltage: 230/400 V AC/DC
• Rated Frequency: 50/60 Hz
• Mounting: DIN Rail (1 module, 18 mm)
• Terminal Type: Screw terminals
• Protection Rating: IP40 (front), IP20 (terminals)
• Operating Temperature: -25 to +50 °C
• Standards: IEC/EN 60947-5-1

Recommendations

For optimal performance, ensure proper wiring and secure mounting on a standard DIN rail. Suitable for use in dry indoor environments. Always follow local electrical codes and regulations.
