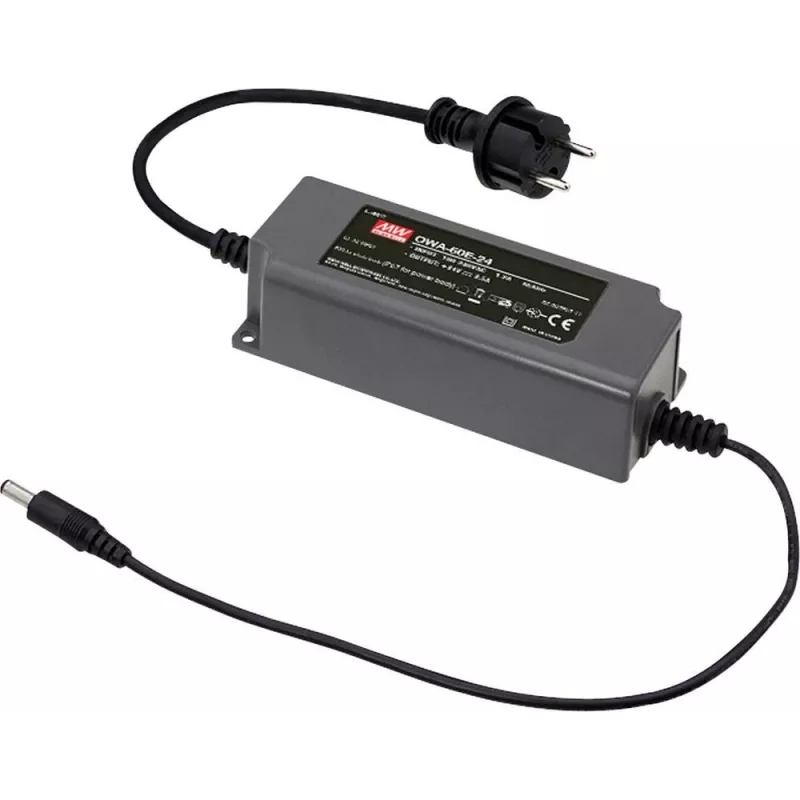

MEAN WELL OWA-60E-15 60W 15V 4A fonte de alimentação driver LED IP67 com ficha EU

Outdoor and industrial LED lighting projects often fail when power supplies lack weatherproofing or stable output. The MEAN WELL OWA-60E-15 solves this with a fully sealed IP67 enclosure and constant 15 V DC output, ensuring reliable performance even in rain, dust, or extreme temperatures.

Who is it for

This 60 W LED driver is ideal for electricians, lighting installers, and OEMs who need a durable, compact power source for LED strips, modules, or signage in outdoor or humid environments. It suits both professional and DIY projects requiring a safe, certified AC/DC adapter.

Main features

• 60 W constant voltage output at 15 V DC, 4 A
• Universal AC input: 90–264 V AC (127–370 V DC)
• IP67-rated plastic housing for dust and water immersion protection
• High efficiency up to 89% with free air convection cooling
• Comprehensive protections: short circuit, overload, over voltage, over temperature
• Wide operating temperature range: -35 °C to +70 °C
• European 2-pin AC plug (E-type) and 2-pin DC cable with bare wires
• Certified to EN61347-1, EN61347-2-13, UL8750; CE, UL, TUV, CB, EAC

Specifications

• Output power: 60 W
• Output voltage: 15 V DC
• Output current: 4 A
• Ripple & noise: 150 mVp-p
• Input voltage: 90–264 V AC / 127–370 V DC
• Efficiency: up to 89%
• IP rating: IP67
• Cooling: free air convection
• Housing: plastic
• Operating temperature: -35 °C to +70 °C
• Safety standards: EN61347-1, EN61347-2-13, UL8750
• EMC standards: EN55015, EN55032 Class B
• Dimensions: 150 x 53 x 35 mm (L x W x H)
• Weight: 0.45 kg

Tips

For best results, mount the driver in a well-ventilated area even though it is IP67 rated, and ensure the bare wire output connections are properly insulated or enclosed. Pair with 15 V LED strips or modules within the 60 W limit to avoid overload.
