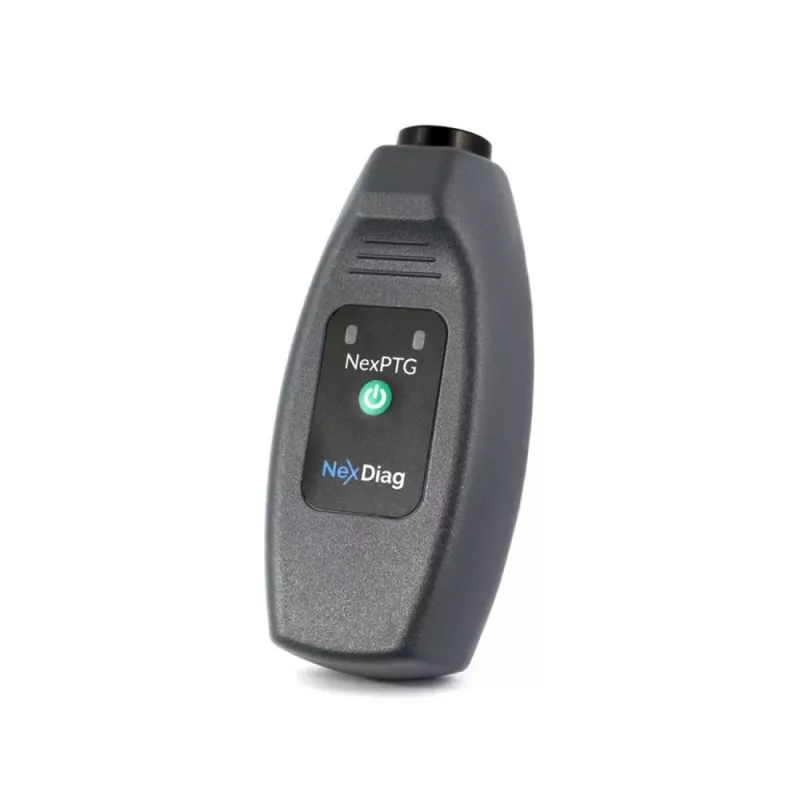

Medidor de espessura de camada NEXDIAG NexPTG Standard

Measuring paint thickness on steel, galvanized steel, or aluminum can be slow and imprecise with manual tools. The NEXDIAG NexPTG Standard Paint Thickness Gauge solves this by pairing a compact probe with your smartphone or tablet via Bluetooth, giving you fast, accurate readings directly in the NexPTG app.

Who is it for

Automotive painters, body shops, detailers, and quality inspectors who need to check coating thickness on metal surfaces. It is also useful for DIY enthusiasts restoring vehicles or verifying paintwork before purchase.

Main features

• Measures coatings from 0 to 2500 µm (0 to 98.43 mils) with 1 µm resolution.
• Supports steel (Fe), galvanized steel (Fe+Zn), and aluminum (Al) substrates.
• Integrated movable spherical probe for easy positioning on curved surfaces.
• Bluetooth 4.0 LE connects to iOS (9.0+) and Android (4.3+) devices.
• Stores up to 10,000 measurements in the app for later analysis.
• Automatic and manual calibration with included calibration plates.
• Powered by 2 AA batteries (alkaline recommended) for up to 100 hours of continuous use.
• Operating temperature range: -20°C to 40°C (-4°F to 104°F).

Specifications

• Measurement range: 0 - 2500 µm (0 - 98.43 mils)
• Resolution: 1 µm (0.04 mils)
• Accuracy (Fe/Fe+Zn): ±8 µm + 3% of reading
• Accuracy (Al): ±10 µm + 5% of reading
• Probe: Integrated, movable/spherical
• Connectivity: Bluetooth 4.0 LE
• App compatibility: iOS 9.0 or later, Android 4.3 or later
• Battery: 2x AA (alkaline recommended), up to 100 hours continuous operation
• Operating temperature: -20°C to 40°C (-4°F to 104°F)
• Measurement memory: Up to 10,000 measurements (stored in app)
• Measurement speed: Up to 10 measurements per second
• Units: Micrometers (µm), Mils (mil)
• Minimum measurement area: 20 mm diameter
• Calibration: Automatic and manual (with included calibration plates)
• Display: Smartphone/tablet via NexPTG App
• Material: High-quality ABS plastic

Tips

For best accuracy, calibrate the gauge on the included plates before each session. Ensure the surface is clean and free of debris. The spherical probe tip helps maintain consistent contact on curved panels.
