Medidor de espessura de camadas SNDWAY SW-6310A alcance de medição digital 0–2000 µm

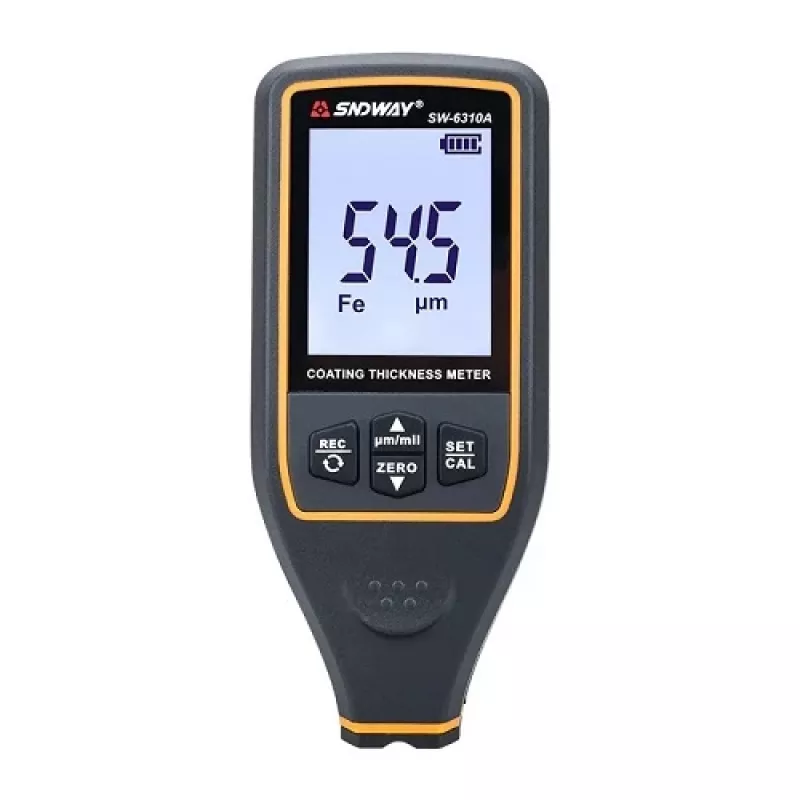

Coating Thickness Gauge SNDWAY SW-6310A digital 0–2000 µm measurement range

The SNDWAY SW-6310A is a digital coating thickness gauge that measures the thickness of paint or lacquer layers on both magnetic surfaces (iron, steel) and non-magnetic surfaces (aluminium, copper, brass). It is used for non-invasive paint-thickness measurement on car bodywork and for measuring non-magnetic coatings (paint, lacquer, glass, plastic, epoxy resin, filler, enamel and more) on steel, galvanised steel and aluminium, and can check a lacquer layer before polishing. It uses non-invasive magnetic measurement technology, is calibrated, and includes FE (iron) and NFE (aluminium) calibration plates for accuracy checks. Features: selectable units (1 mil = 25.4 um), data storage for up to 30 measurements retained after power-off, a clear 2-inch backlit display with low-battery indicator that rotates 180 degrees, single or continuous measurement, audible result signal, upper/lower limit warnings and auto power-off after 60 seconds. Technical data: measuring range 0-1700 um (magnetic and non-magnetic); resolution 0.1 um (0-99.9 um) and 1 um (100-1700 um); accuracy +/-(2+2%H) um at 0-500 um and +/-(2.5%H) um at 500-1700 um; minimum measuring area 25 x 25 mm; minimum curvature 5 mm convex, 30 mm concave; minimum measurable thickness 0.2 mm magnetic, 0.05 mm non-magnetic; powered by 2 x 1.5 V AAA batteries (included); operating temperature 0 to +50 degrees C; gauge size 120 x 52 x 26 mm. Supplied in a black zip-up storage case.

Genuine Sndway product — MPN: SW-6310A · EAN: 6971978410853.
