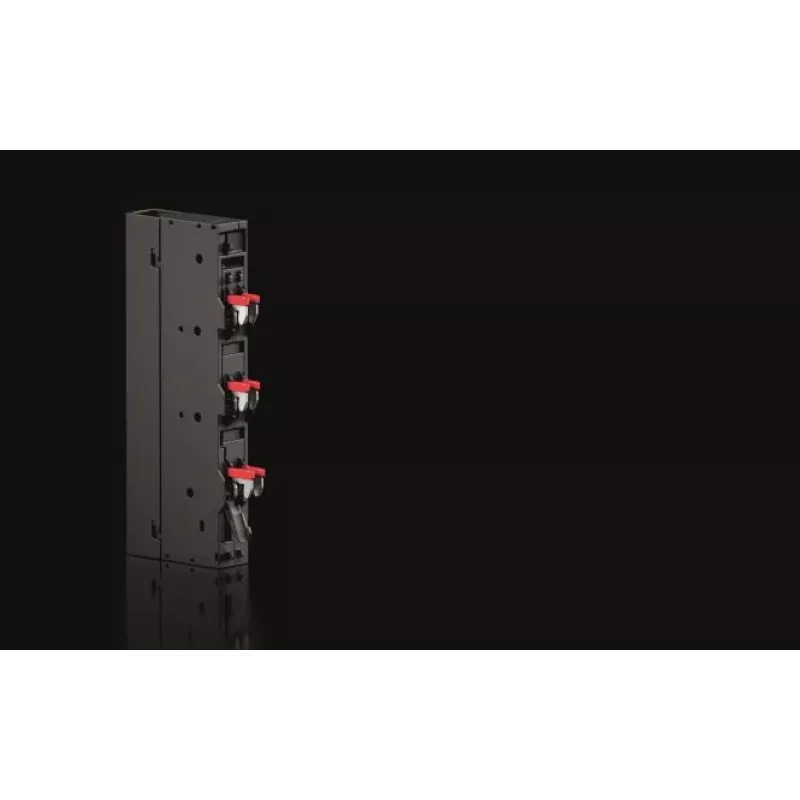

Rittal Adaptador de ligação RX 9360200, 3 polos, 16 mm², 63 A, 690 V, preto

This Rittal connection adapter is engineered to link power cables directly to the RiLine60 busbar system, offering a secure and efficient power tap without the need for additional mounting hardware. Its snap-on design and screw terminals simplify installation and maintenance in industrial control panels.

Highlights

• 3-pole adapter for RiLine60 busbar systems
• Supports conductors up to 16 mm²
• Rated for 63 A and 690 V AC
• Snap-on mounting for quick installation
• Durable polyamide housing

In daily use

The adapter's snap-on mechanism allows fast attachment to 60 mm busbar spacing, reducing installation time. Screw connections ensure reliable contact for both rigid and flexible conductors. The compact black housing fits neatly into control cabinets, maintaining a clean layout.

Full specifications

• Product type: Connection adapter
• Number of poles: 3
• Max. conductor cross-section: 16 mm²
• Connection type: Screw
• Rated voltage: 690 V AC
• Rated current: 63 A
• Mounting: Snap-on
• Housing material: Polyamide
• Contact material: Copper
• Colour: Black
• Busbar spacing: 60 mm
• Operating temperature: -25 °C to +70 °C

Final note

Designed for use within Rittal RiLine60 systems, this adapter provides a dependable power distribution point for industrial applications.
