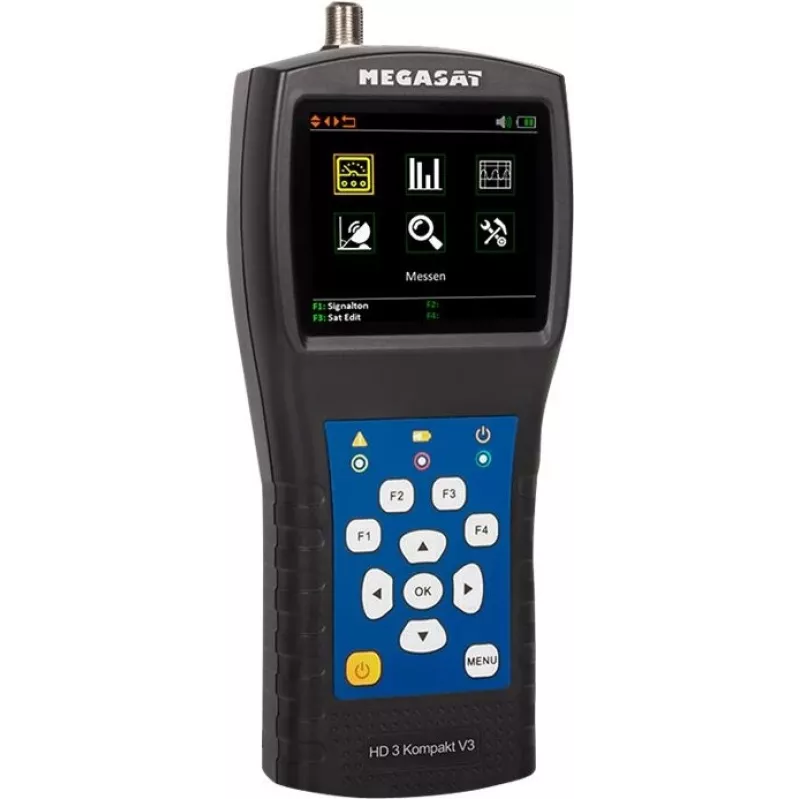

Medidor de satélite Megasat Satmeter HD 3 Compact V3 - medidor digital de satélite com analisador de espetro 2600021

Aligning a satellite dish on a rooftop or in a garden often means juggling a receiver, a TV, and long cables. The Megasat Satmeter HD 3 Compact V3 puts a complete measurement lab in your hand: a bright 2.4-inch colour display, real-time spectrum and constellation analysis, and support for DVB-S/S2, DiSEqC and Unicable. Installers and enthusiasts can locate, align and fine-tune satellite antennas in minutes, without guesswork.

Key specifications

• 2.4" TFT LCD colour display for clear readings even in sunlight
• Measures DVB-S and DVB-S2 signals from 950 to 2150 MHz
• Input level range -65 to -25 dBm with dBµV/dBm readout
• LNB supply 13V/18V, max. 300 mA, with short-circuit protection
• DiSEqC 1.0/1.1/1.2 and USALS control, plus Unicable (SCR) support
• Real-time spectrum analyzer and constellation diagram for precise diagnosis
• Displays MER, BER, C/N and signal strength for objective alignment
• Integrated 800 mAh lithium-ion battery: up to 3 hours operation, 3 hours charging
• USB port for software updates; 12V charger included
• Acoustic signal feedback and azimuth/elevation calculation aid dish setup

Why choose it

This meter is built for daily professional use. The spectrum analyzer shows the entire band at once, so you can spot interference or misalignment instantly. The constellation diagram helps identify signal distortion before it causes picture break-up. The rugged housing and short-circuit protection mean it survives on the job, while the long battery life covers a full morning of installations. With Unicable support, it is ready for modern single-cable distribution systems.

Ideal use cases

• Professional satellite installers aligning dishes for DTH, FTA or multi-feed systems
• Service technicians troubleshooting signal issues in apartments or hotels
• Enthusiasts setting up motorised dishes or multi-LNB configurations
• Field engineers verifying signal quality after storm damage or realignment

Good to know

The Satmeter HD 3 Compact V3 comes with a 12V power supply for charging and a USB connection for future firmware updates. It does not include a carrying case or additional adapters. For best results, use a short, high-quality coaxial cable between the LNB and the meter's F-connector. The acoustic feedback can be muted if desired.
