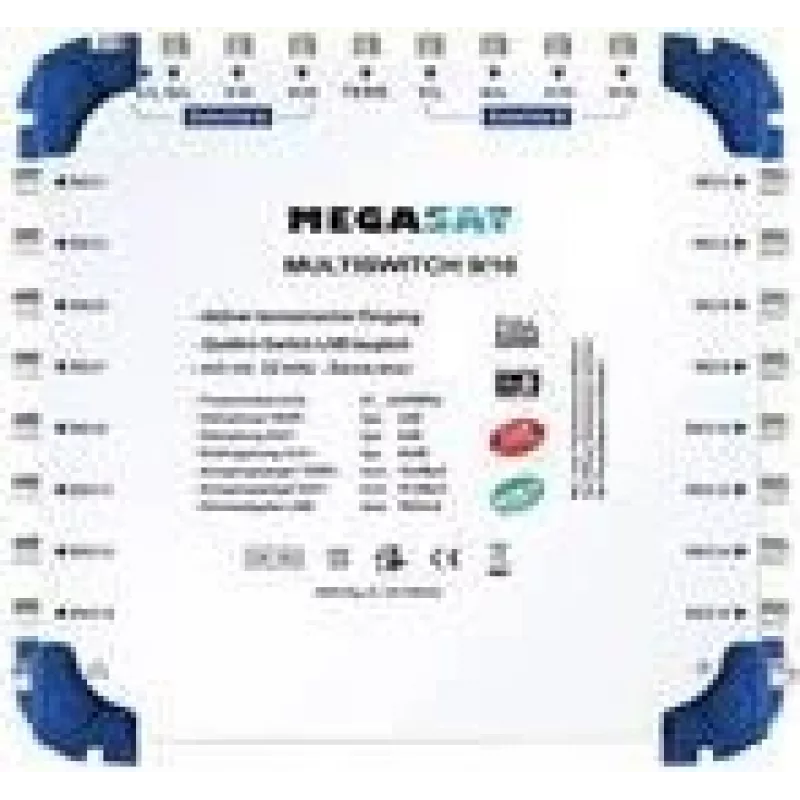

Multiswitch de satélite Megasat 0600153 9 entradas 16 saídas

The Megasat 0600153 Satellite Multiswitch with 9 inputs and 16 outputs distributes satellite signals from multiple LNBs to up to sixteen receivers or set-top boxes. Designed for installations where several users or rooms require independent satellite feeds, this compact multiswitch accepts a wide input voltage range and operates across standard mains frequencies. Its enclosure and connection layout are suitable for wall- or rack-adjacent mounting in residential and small commercial satellite distribution systems.

Advantages

The multiswitch supports nine separate inputs and sixteen independent outputs, enabling flexible distribution from multiple LNBs or polarisation/band combinations. Its wide input voltage range of 90–260 V and frequency compatibility of 47–63 Hz allow use in different power environments without additional converters. The compact footprint (215 mm x 215 mm x 50 mm) and moderate weight (0.696 kg) make it convenient to install in limited spaces while maintaining stable signal routing for each connected receiver.

Key specifications

How to use

Connect the outputs of your satellite dish LNBs to the nine input connectors of the multiswitch according to polarisation and band assignments required by your system. Connect each receiver or set-top box to one of the sixteen outputs using coaxial cables with appropriate impedance. Supply mains power within the specified 90–260 V and frequency range to the device. After connections are secure, power the system and configure each receiver to the satellite tuning settings required by your service.

Recommendations

Use quality, properly shielded coaxial cables and secure F-type connectors to minimise signal loss. Place the multiswitch in a dry, ventilated area away from strong electromagnetic interference. For larger installations or long cable runs, consider professional signal level measurements and potential use of inline amplifiers or attenuators to maintain optimal signal levels to all receivers.
