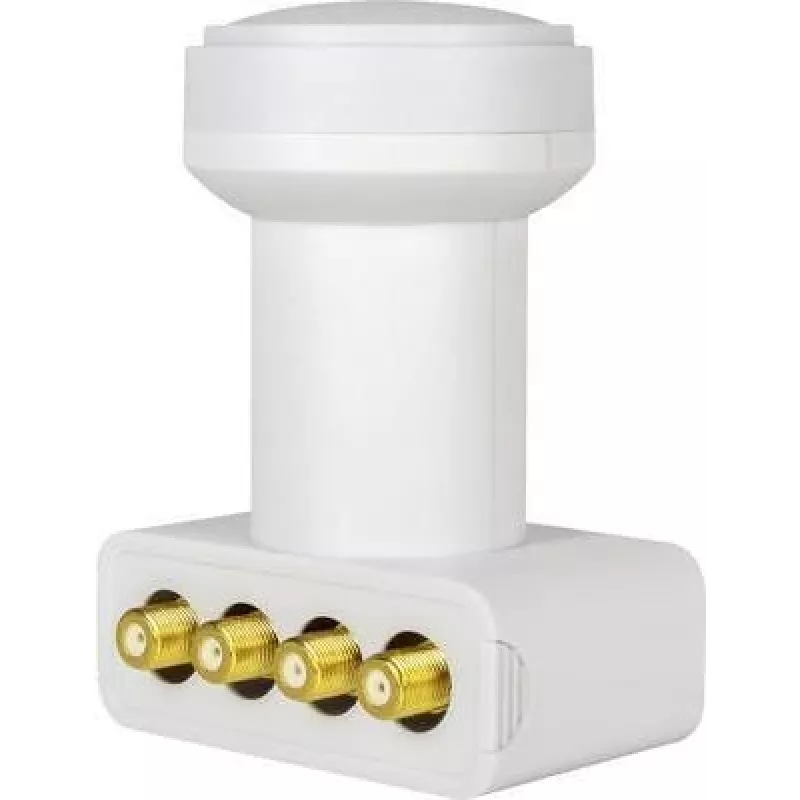

Conversor de bloco de baixo ruído Megasat 401074

The Megasat 401074 Low Noise Block downconverter (LNB) is a universal quad LNB designed for digital satellite reception from a single satellite feed. It operates in the 10.7–12.75 GHz frequency range and features a 4 cm feedhorn diameter, gold-plated F-type connector and a low noise figure of 0.1 dB to support clear HD, 3D and 4K signals. The compact white housing measures approximately 60 mm (width) × 120 mm (depth) and is built to resist extreme weather conditions.

Advantages

The Megasat quad LNB provides low noise performance for improved picture and sound quality and uses gold-plated F-connectors for better signal conductivity. Its design ensures reliable operation in a wide range of temperatures, and the four-output configuration allows connection of up to four receivers from one satellite dish.

Suitable for

Key specifications

How to use

Mount the LNB on the satellite dish feed arm according to the dish manufacturer’s instructions, ensuring the feedhorn is centered in the dish focal point. Connect coaxial cables with F-type connectors from each of the four LNB outputs to the respective receivers or distribution equipment. Adjust dish alignment and perform channel scan on each receiver to complete setup.

Recommendations

For optimal reception, use high-quality coaxial cable and properly tightened gold-plated F-connectors. Protect outdoor connections from water ingress and realign the dish if signal quality degrades after severe weather.
