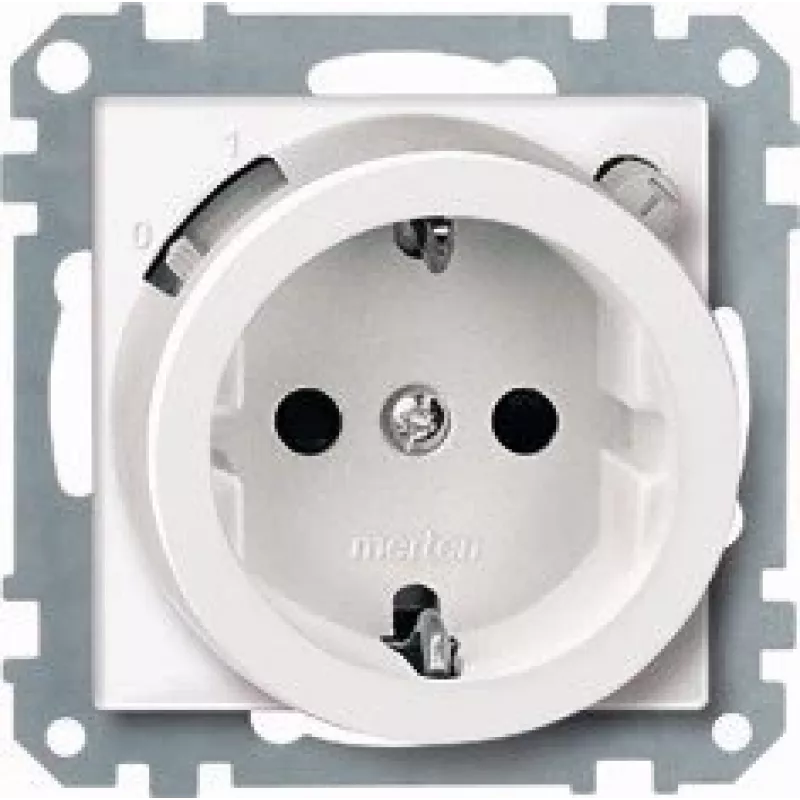

MERTEN 232819 Tomada Schuko com interruptor diferencial, 16 A, 230 V, Branco polar

This flush-mounted Schuko socket outlet with integrated residual current device (RCD) provides personal protection against electric shock by instantly disconnecting the circuit when a leakage current of 30 mA is detected. Its compact design fits standard Merten System M frames, making it ideal for retrofitting safety in bathrooms, kitchens, and outdoor areas.

Advantages

The built-in RCD reacts within 30 milliseconds, significantly reducing the risk of fatal electric shocks. The socket features increased touch protection (child safety) to prevent accidental contact with live parts. A mechanical fault indicator and test button allow easy verification of the protective function. The halogen-free thermoplastic housing is robust, easy to clean, and maintains its polar white colour over time.

Suitable for

• Bathrooms and washrooms without existing RCD protection
• Kitchens and utility rooms where water and electricity may come into contact
• Outdoor installations such as terraces and balconies (with appropriate weatherproof cover)
• Workshops and garages using portable power tools
• Retrofitting older installations to meet current safety standards

Key specifications

• Socket type: Schuko (Type F, CEE 7/3) with earthing contacts
• Rated voltage: 230 V AC, 50 Hz
• Rated current: 16 A
• Rated residual current: 30 mA
• Tripping time: < 30 ms
• Short-circuit current rating: 3000 A
• Mounting: Flush-mounted (Unterputz) in standard 60 mm back box
• Connection: Screw terminals for solid or stranded conductors
• Material: Halogen-free thermoplastic (polycarbonate)
• Colour: Polar white (similar to RAL 9010)
• Degree of protection: IP20
• Operating temperature: -5 °C to +40 °C
• Design line: Merten System M
• Number of poles: 2P+E
• Integrated test button and mechanical fault indicator

Recommendations

For maximum safety, test the RCD function monthly using the test button. Ensure the socket is installed by a qualified electrician and protected upstream by a suitable miniature circuit breaker. Use only with compatible Merten System M frames and covers.
