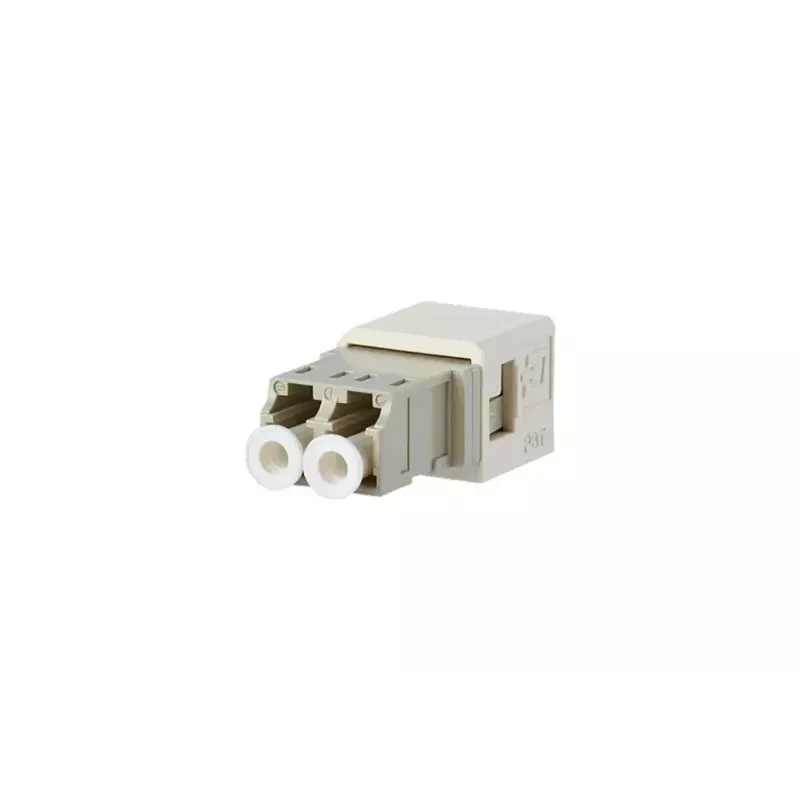

Conector de cabos BTR NETCOM 1402300820MI LC-D MM branco

The BTR NETCOM 1402300820MI LC-D MM wire connector is a white multimode LC duplex coupler designed for reliable optical connections in professional installations. It complies with IEC and EN/ISO standards for connector compatibility and insertion loss limits, and features flame-retardant, halogen-free materials for housing and dust cover. The product is available in flange or wall outlet variants and guarantees a minimum service life of 500 mating cycles with an operating temperature range from -40 °C to +70 °C.

Advantages

This LC-D multimode coupler offers standardized compatibility to LC connectors (IEC 61754-20) and meets EN 50173-1:2011-09 and ISO/IEC 24702 requirements for insertion loss. The use of slotted metal sleeves for multimode applications ensures secure alignment, while flame-retardant and halogen-free housing and dust cover increase safety and suitability for building installations. The connector is available in variants suited for integration into flanges or wall outlets and is color-coded for multimode (beige).

Suitable for

• Multimode fiber optic patch panels and distribution frames
• Wall outlet installations in commercial and industrial buildings
• Data center and LAN cabling where LC duplex multimode connections are required

Key specifications

• Type: LC-D multimode (MM) coupler
• Colour: white housing; beige for multimode identification
• Sleeve: slotted metal sleeve for multimode (Ph-Br)
• Standards: LC to IEC 61754-20; EN 50173-1:2011-09; ISO/IEC 24702
• Material: flame-retardant, halogen-free plastic housing and dust cover
• Service life: minimum 500 plug-in cycles
• Operating temperature: -40 °C to +70 °C
• Variants: flange or wall outlet (var. 1 and 4); variant 14 sold only in sets

How to use

Install the LC-D MM connector into the designated flange or wall outlet cut-out and secure according to the installation frame or panel instructions. Insert LC multimode fibre plugs into the duplex ports until a tactile click confirms engagement. Use the dust cover when connectors are not in use to protect the ferrules and maintain low insertion loss. Follow standard fibre handling procedures to avoid contamination and mechanical stress on the fibres.

Recommendations

For optimal performance, perform visual inspection and cleaning of ferrules before mating, use correct colour-coded multimode patch cords, and avoid exceeding the specified operating temperature range. Adhere to building cabling standards and the manufacturer's installation instructions to ensure connector lifetime and signal integrity.
