METZ CONNECT 130910-I módulo keystone RJ45 Cat.6A blindado, IDC sem ferramentas, entrada de cabo a 90°, 10G, 500MHz, zamak, prateado 130910-I-90

With a frequency bandwidth of up to 500 MHz and full 10 Gigabit Ethernet support, this METZ CONNECT 130910-I keystone module delivers uncompromising performance for high-speed networks. The shielded RJ45 jack meets Cat.6A / Class EA standards, ensuring reliable data transmission even in demanding environments.

Overview

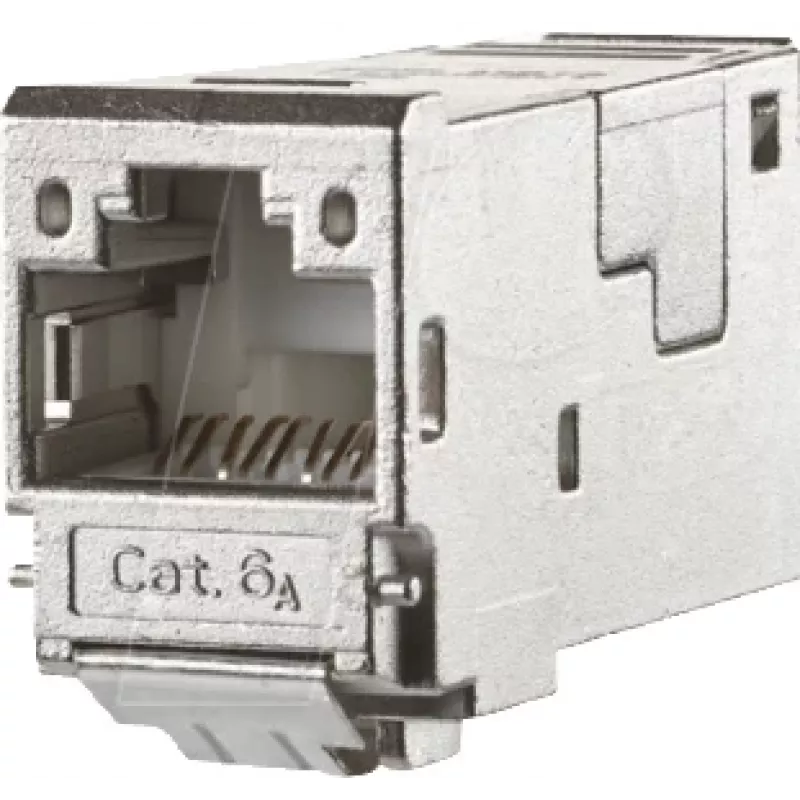

The METZ CONNECT 130910-I is a shielded RJ45 keystone module designed for tool-free termination. Its 90° cable entry and color-coded IDC terminals simplify installation, while the die-cast zinc housing with nickel plating provides excellent durability and shielding. Gold-plated contacts (min. 0.8 µm) guarantee low contact resistance and long-term reliability, with a mating cycle rating of at least 750 insertions.

What stands out

• Supports 10GBASE-T and PoE up to 4PPoE (IEEE 802.3af/at/bt)
• Tool-free IDC termination for solid or stranded conductors (AWG 24/1 – 22/1 and AWG 27/7 – 22/7)
• Robust zinc die-cast housing with nickel plating for superior shielding and mechanical strength
• Complies with ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, and IEC 60603-7-51
• Wide operating temperature range from -40 °C to +70 °C

Technical details

• Connector type: RJ45 (8P8C), shielded
• Performance category: Cat.6A (Class EA)
• Wiring standard: T568A / T568B (color coded)
• Cable entry angle: 90°
• Supported data rate: 10 Gigabit Ethernet
• Frequency bandwidth: up to 500 MHz
• Contact plating: gold, min. 0.8 µm
• Mating cycles: ≥ 750
• Compatible insulation diameter: 0.7 mm – 1.6 mm
• Mounting type: keystone module format

Our verdict

A professional-grade Cat.6A keystone module that combines high-speed performance, tool-free convenience, and rugged construction. Ideal for structured cabling in offices, data centers, and industrial settings.
