Módulo Keystone DeLOCK 86707

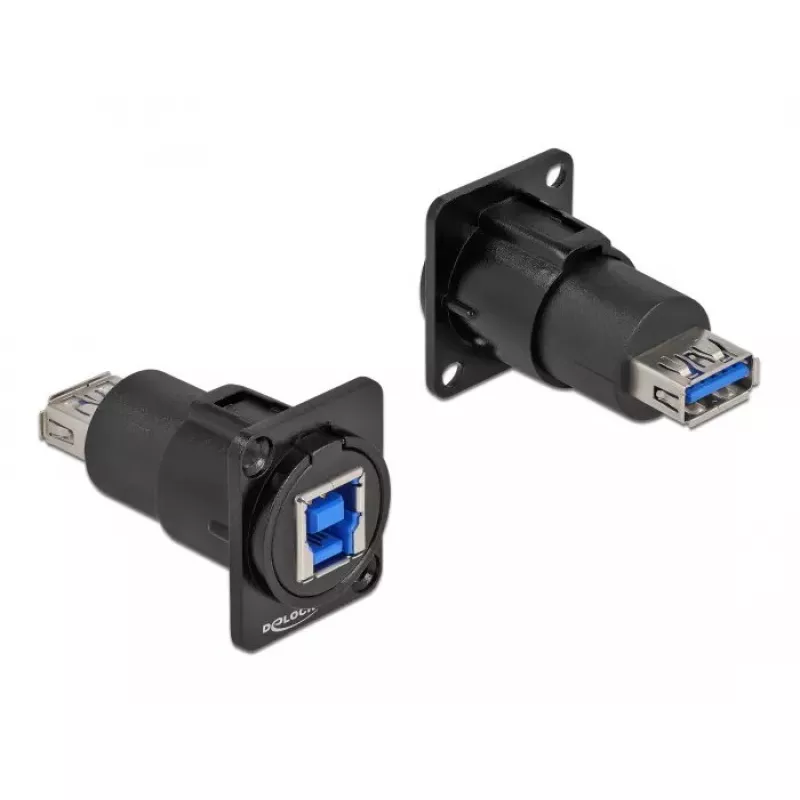

The DeLOCK 86707 keystone module is a compact panel-mount connector designed for integration into panels or housings with D-type openings often used for XLR jacks. It has a flat construction with a black finish and provides a USB B connector in a small footprint, suitable for integrating digital equipment into professional audio or control systems.

Advantages

The module's flat, compact design (25.8 mm × 31 mm × 45.5 mm) allows installation in confined panel cutouts while maintaining a standard USB B interface. Its black finish ensures a discreet appearance in racks or consoles. The product is supplied as a single unit per pack, simplifying small installations or replacements.

Suitable for

• Integration of digital audio interfaces into professional audio panels

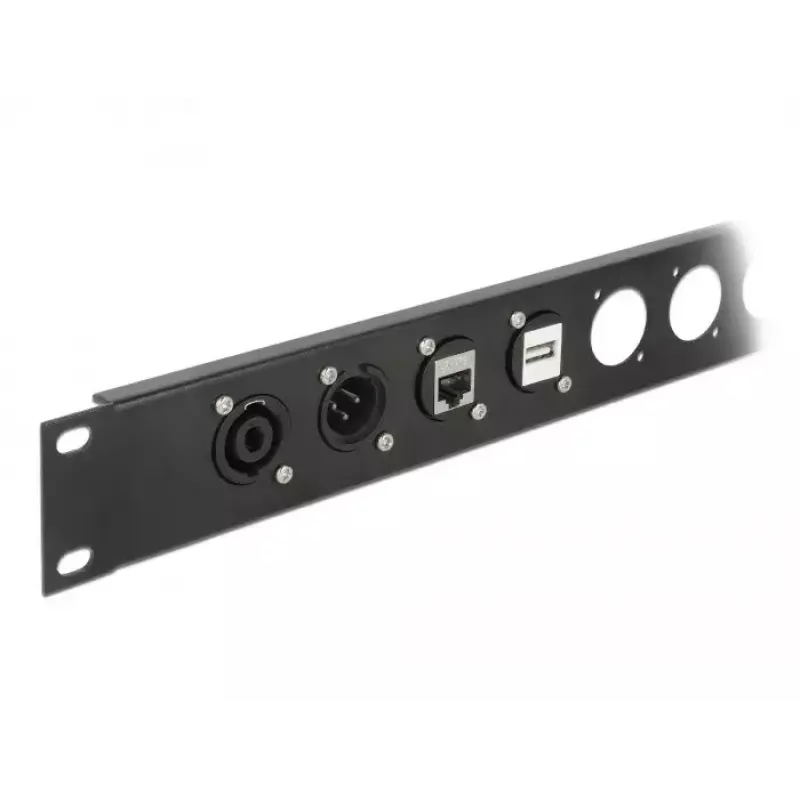

• Mounting USB B connectivity in equipment racks or custom enclosures with D-type openings
• Retrofits or replacements where a compact USB B keystone module is required

Key specifications

• Brand: DELOCK
• Model / MPN: 86707
• EAN: 4043619867073
• Connector: USB B (panel keystone module)
• Dimensions (W × D × H): 25.8 mm × 31 mm × 45.5 mm
• Finish: Black
• Pack quantity: 1 unit

How to use

Insert the keystone module into a compatible D-type panel opening and secure it according to the panel or chassis mounting method. Connect a USB B cable from the mounted connector to the device requiring USB B connectivity. Verify that the panel cutout matches the module dimensions and that the connector is properly seated before powering connected equipment.

Recommendations

Use the module in panels or cases with standard D-type keystone openings. Confirm mechanical fit prior to installation and handle connectors with care to avoid stress on the soldered or internal contacts.
