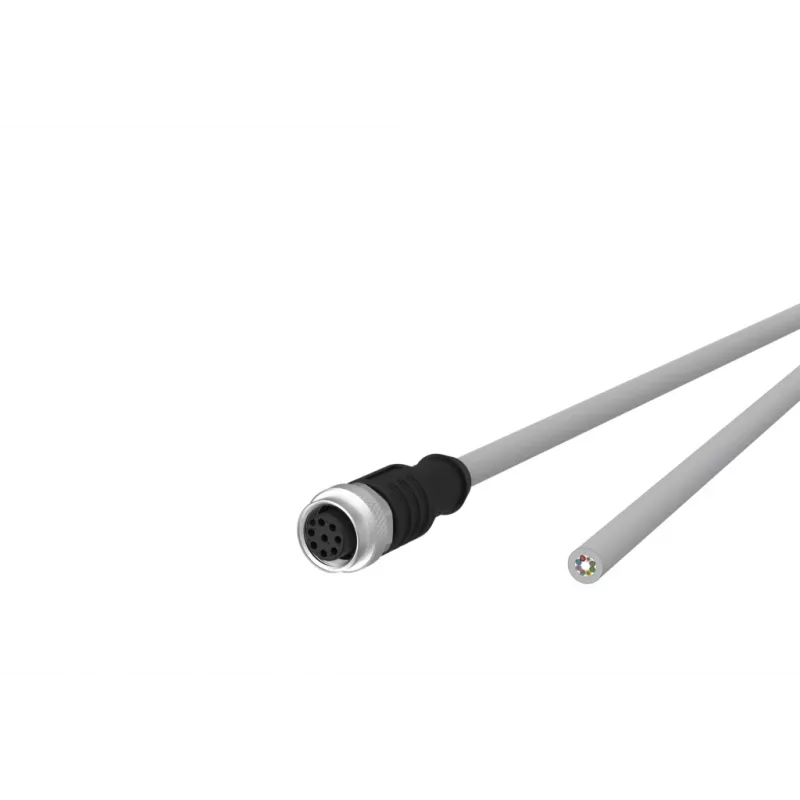

METZ CONNECT 142MKA20050 Cabo de sensor/atuador, M12 fêmea para extremidade aberta, 5 m, cinzento, PVC

The METZ CONNECT 142MKA20050 is a high-quality sensor/actuator cable designed for industrial automation applications. It features an M12 female connector (A-coded, 4-pin) on one end and an unterminated free end on the other, providing flexibility for custom wiring. With a length of 5 meters and a durable PVC jacket, this cable ensures reliable signal and power transmission in harsh environments.

Advantages

This cable offers excellent durability and protection with an IP67 rating when mated, making it suitable for demanding industrial settings. The PVC jacket provides resistance to abrasion and chemicals, while the 4-conductor design with 0.34 mm² cross-section supports up to 250 V and 4 A. Its unshielded construction is ideal for sensor and actuator connections where electromagnetic interference is minimal.

Suitable for

• Industrial automation systems
• Connecting sensors and actuators to control units
• Factory floor machinery and equipment
• Robotics and assembly lines

Key specifications

• Cable type: Sensor/Actuator Cable
• Connector 1: M12, female, straight, A-coded, 4-pin
• Connector 2: Unterminated (free end)
• Cable length: 5 m
• Jacket material: Polyvinyl Chloride (PVC)
• Cable colour: Grey
• Number of conductors: 4
• Conductor cross-section: 0.34 mm²
• Rated voltage: 250 V AC/DC
• Rated current: 4 A
• Shielding: Unshielded
• Operating temperature: -25 °C to +80 °C
• Ingress protection: IP67 (when mated)
• Compliance: RoHS

Recommendations

For optimal performance, ensure the M12 connector is properly mated and tightened to achieve the IP67 rating. This cable is ideal for use with METZ CONNECT compatible devices and other industrial equipment requiring a reliable 4-pin M12 connection.
