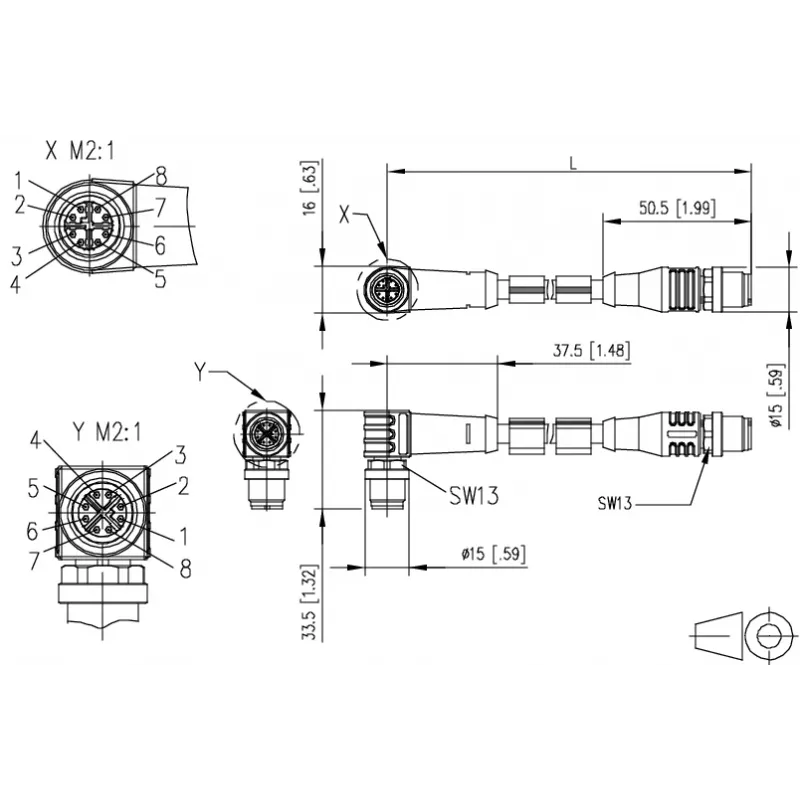

METZ CONNECT Cabo de ligação 10,0 m ficha M12 8 pinos 45° angular

The METZ CONNECT Connection Cable is a high-quality industrial cable designed for reliable data and signal transmission in demanding environments. With a 10.0-meter length, M12 male connector with 8 pins in a 45° angled design, and an open end, this cable offers flexibility for various automation and sensor applications. The PUR jacket ensures durability, flexibility, and resistance to oils and chemicals, while the IP67 protection class guarantees performance in harsh conditions.

Advantages

This cable provides a secure and robust connection with its M12 A-coded male connector, gold-plated contacts for corrosion resistance, and a 45° angle for space-saving installations. The unshielded design is suitable for applications where electromagnetic interference is minimal, and the PUR jacket offers excellent mechanical strength and flexibility even at low temperatures.

Suitable for

• Industrial automation and control systems
• Sensor and actuator connections
• Fieldbus and device-level networking
• Robotics and motion control
• Factory and process automation

Key specifications

• Connector 1: M12 male, 8-pin, A-coded, 45° angled
• Connector 2: Open end (free wires)
• Cable length: 10.0 m
• Cable material: PUR (Polyurethane)
• Number of conductors: 8
• Conductor cross-section: 0.25 mm² (AWG 24)
• Shielding: Unshielded
• Rated voltage: 30 V AC/DC
• Rated current: 2 A
• Protection class: IP67 (when mated)
• Operating temperature: -25°C to +80°C
• Cable outer diameter: approx. 6.0 mm
• Cable color: Black
• Contact material: CuZn (Brass), gold-plated
• Approvals: RoHS, REACH

Recommendations

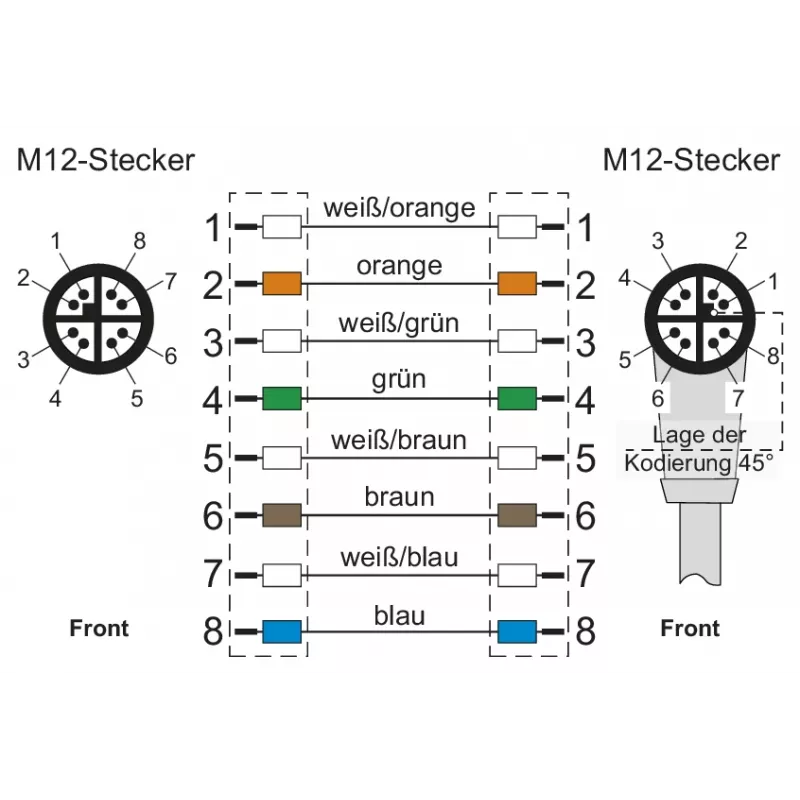

For optimal performance, ensure the connector is properly mated to achieve IP67 protection. This cable is ideal for use with compatible M12 devices and sensors. Always verify the pin assignment and coding to match your equipment.
