METZ CONNECT cabo patch M12 para RJ45, Cat.5e, 2m, codificação D, PUR, verde

The METZ CONNECT M12 to RJ45 patch cable is a high-quality industrial Ethernet cable designed for reliable data transmission in harsh environments. With a rugged M12 D-coded male connector on one end and an RJ45 male connector on the other, this pre-assembled cable ensures a secure and waterproof connection (IP67 when mated). Ideal for use in factory automation, fieldbus systems, and industrial networking applications.

Advantages

This cable offers exceptional durability and performance. The shielded design (SF/UTP equivalent) minimizes electromagnetic interference, while the PUR jacket provides excellent resistance to oils, chemicals, and mechanical stress. The D-coded M12 connector ensures correct orientation and prevents mismating, and the 4-pin configuration supports Fast Ethernet up to 100 Mbit/s. Halogen-free and flame-retardant, it meets stringent safety standards.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT, etc.)
• Connecting sensors, actuators, and field devices
• Automation and control systems
• Data transmission in harsh environments

Key specifications

• Connector A: M12 male, D-coded, 4-pin
• Connector B: RJ45 male
• Cable length: 2 meters
• Category: Cat.5e
• Data rate: up to 100 Mbit/s

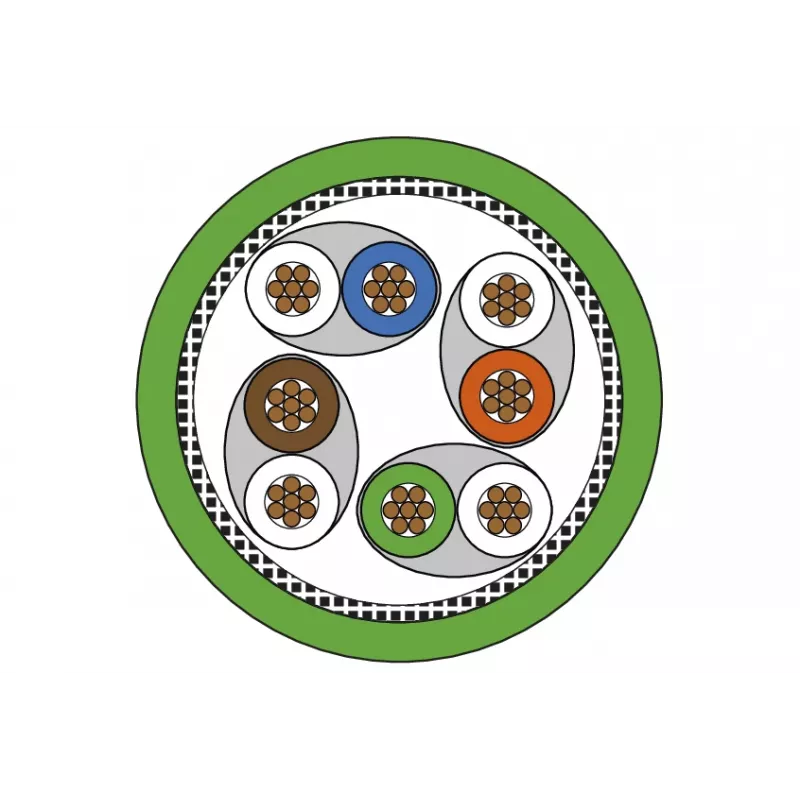

• Shielding: Shielded (SF/UTP)
• Jacket material: PUR (Polyurethane)
• Conductor: Copper, AWG 22
• Operating temperature: -30°C to +80°C
• Ingress protection: IP67 (when mated)
• Halogen-free: Yes
• Flame retardant: IEC 60332-1-2
• Cable color: Green
• Outer diameter: approx. 6.5 mm

Recommendations

For optimal performance, ensure the M12 connector is properly tightened to achieve IP67 protection. This cable is compatible with standard industrial Ethernet switches and devices.
