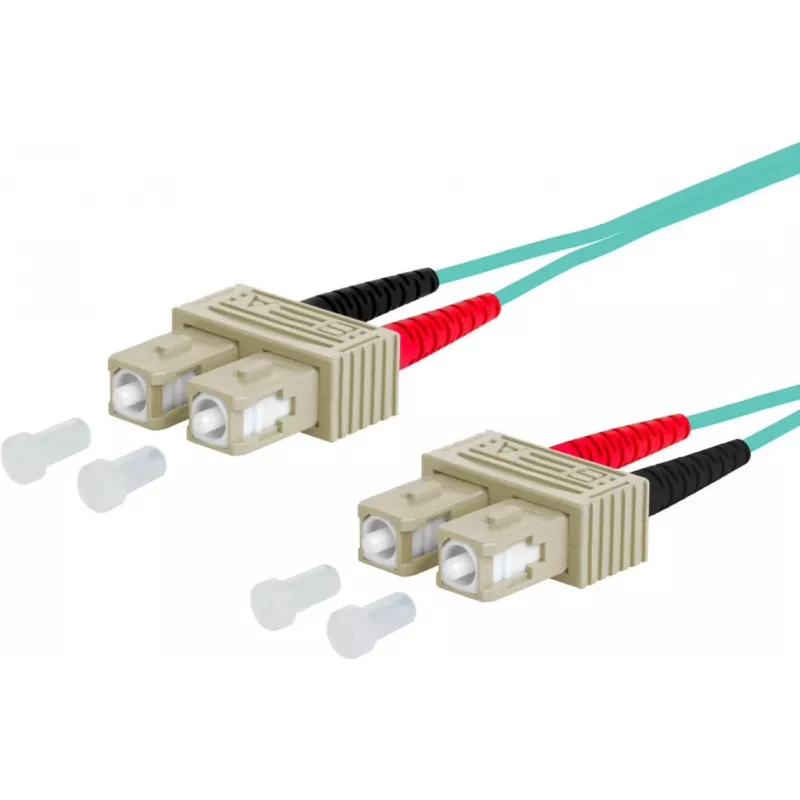

METZ CONNECT cabo patch OpDAT OM3 SC-duplex/SC-duplex multimodo 5m aqua I-V(ZN)H 50/125

The METZ CONNECT OpDAT patch cable is a high-performance fiber optic patch cord designed for reliable data transmission in structured cabling systems. With OM3 multimode fiber, it supports 10GbE up to 300m and is ideal for data centers, LANs, and high-speed networks.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring excellent signal integrity. The halogen-free, flame-retardant jacket (I-V(ZN)H) provides safety and environmental compliance. The aqua color jacket allows easy identification of OM3 fiber.

Suitable for

• Data center patching
• Fiber-to-the-desk applications
• High-speed network connections (10GbE, 40GbE, 100GbE)
• Indoor structured cabling

Key specifications

• Fiber type: OM3 multimode (50/125 µm)
• Connectors: SC duplex to SC duplex
• Length: 5 m
• Jacket: I-V(ZN)H, halogen-free, flame-retardant
• Color: Aqua
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 30 dB
• Operating temperature: -10°C to +60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM3-rated transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius.
