METZ CONNECT MCO IP69k Conjunto de caixa de proteção com terminal para aplicações exteriores, passagem de parede/caixa, 14040100-E

The METZ CONNECT MCO IP69k Protective Housing Set is a robust, industrial-grade enclosure designed to protect the MCO RJ45 Field Plug (Part No. 14040100-E) in the most demanding outdoor and harsh environments. This set provides a sealed, weatherproof solution for wall or housing feed-through installations, ensuring reliable Ethernet connectivity even under extreme conditions.

Advantages

With an IP69k protection rating, this housing set offers the highest level of protection against dust, high-pressure water jets, and steam cleaning. It is UV-resistant, chemical-resistant, and built to withstand vibrations and shocks, making it ideal for industrial and outdoor applications. The screw-on cap and O-ring seals guarantee a tight, durable seal.

Suitable for

• Outdoor Ethernet installations in industrial environments
• Wall or panel feed-through applications requiring IP69k protection
• Harsh environments with exposure to chemicals, moisture, and extreme temperatures
• Protecting METZ CONNECT MCO RJ45 Field Plugs in data communication networks

Key specifications

• Product Type: Protective Housing Set
• IP Protection Class: IP69k
• Application Area: Outdoor, Industrial, Harsh Environments
• Compatibility: METZ CONNECT MCO RJ45 Field Plug (Part No. 14040100-E)

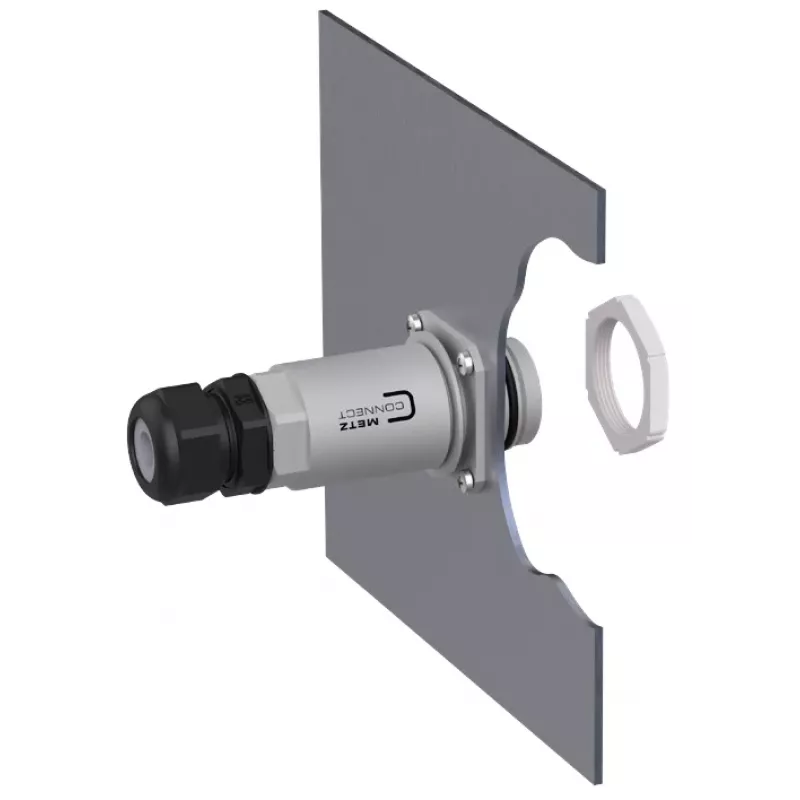

• Mounting Type: Wall/Housing Feed-Through (Panel Mount)
• Housing Material: Robust Polymer (e.g., PBT-GF)
• UV Resistance: Yes
• Operating Temperature Range: -40°C to +85°C
• Chemical Resistance: Resistant to common industrial cleaning agents and chemicals
• Vibration Resistance: Yes
• Shock Resistance: Yes
• Sealing Mechanism: O-ring seals, robust screw-on cap
• Protected Connector Type: RJ45 (Ethernet)
• Supported Data Rate: Up to 10 Gigabit Ethernet (Cat.6A / Class EA)
• Color: Black/Grey
• Installation Method: Screw mounting for panel/wall
• Standards Compliance: IEC 60529 (IP Rating)

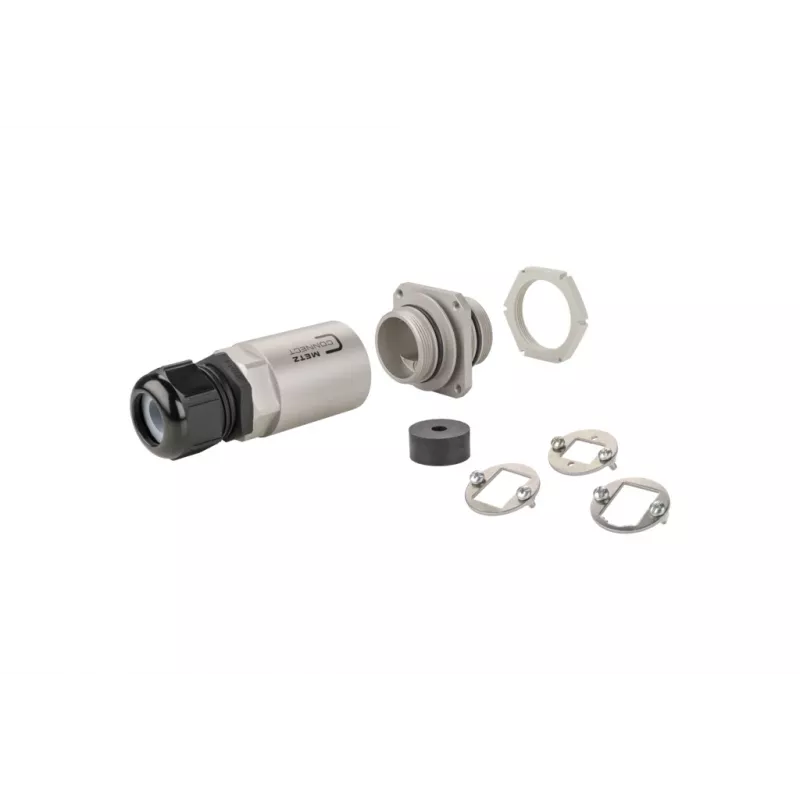

• Scope of Delivery: Housing components, sealing elements, mounting hardware (RJ45 plug not included)

Recommendations

For optimal performance, use this protective housing set exclusively with the METZ CONNECT MCO RJ45 Field Plug (Part No. 14040100-E). Ensure proper installation to maintain the IP69k rating. This set is designed for demanding industrial and outdoor applications where reliable data transmission is critical.
