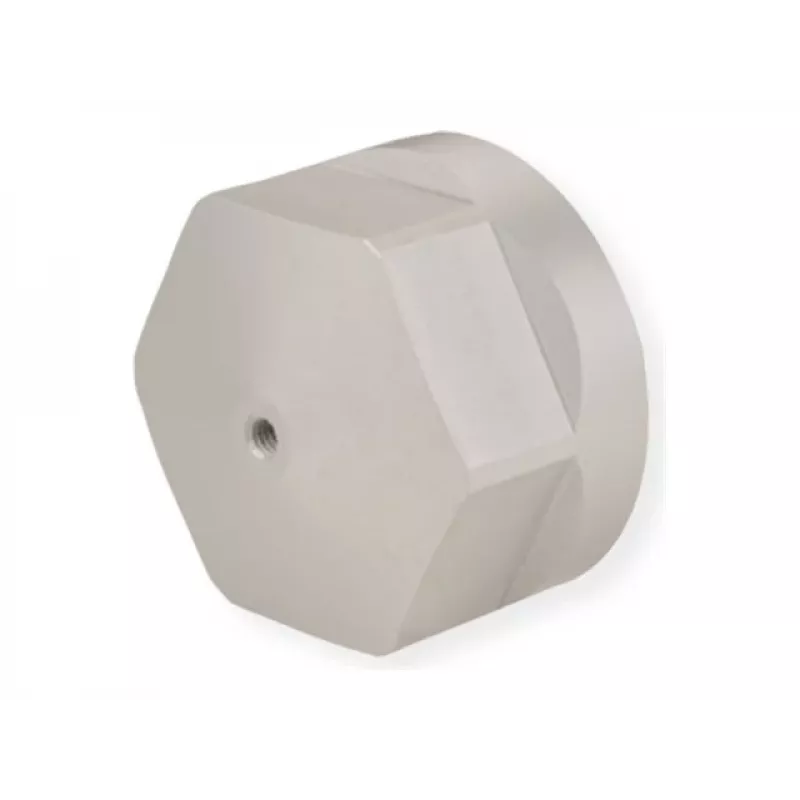

METZ CONNECT MCO IP69k Tampa de proteção para flange (14040Z02-E)

The METZ CONNECT MCO IP69k Protective Cover for Flange (14040Z02-E) is a high-quality protective cap designed specifically for MCO flange housings and connectors. It provides reliable protection against dust, water, dirt, and mechanical damage in harsh industrial environments and outdoor applications. With an IP69k protection rating, this cover withstands high-pressure and steam cleaning, making it ideal for demanding conditions.

Advantages

This protective cover offers exceptional durability and reliability. Its robust PBT housing and EPDM seal ensure long-lasting performance even in extreme temperatures ranging from -40 °C to +85 °C. The cover is UV and chemical resistant, and its UL94 V-0 flammability rating guarantees safety. Easy screw-on mounting allows for quick installation and removal.

Suitable for

• MCO flange housings and connectors
• Industrial automation and control systems
• Outdoor and harsh environment installations
• Food and beverage processing areas requiring high-pressure cleaning
• Transportation and heavy machinery applications

Key specifications

• Product Type: Protective Cover / Cap
• Application: For MCO Flange Housings / Connectors
• IP Protection Class: IP69k (IEC 60529)
• Material (Housing): PBT (Polybutylene terephthalate)
• Material (Seal): EPDM
• Color: Black
• Operating Temperature Range: -40 °C to +85 °C
• Storage Temperature Range: -40 °C to +85 °C
• UV Resistance: Yes
• Chemical Resistance: Yes
• Flammability Rating: UL94 V-0
• Series: MCO (Metz Connect Optical)
• Mounting Type: Screw-on / Threaded
• Compatibility: Metz Connect MCO Flange Housings
• Environmental Suitability: Harsh industrial environments, outdoor applications
• Function: Protection against dust, water, dirt, and mechanical damage

Recommendations

For optimal protection of your MCO connectors in demanding environments, pair this cover with compatible METZ CONNECT MCO flange housings. Ensure the cover is properly screwed on to maintain the IP69k rating. Suitable for use in wash-down areas and outdoor installations.
