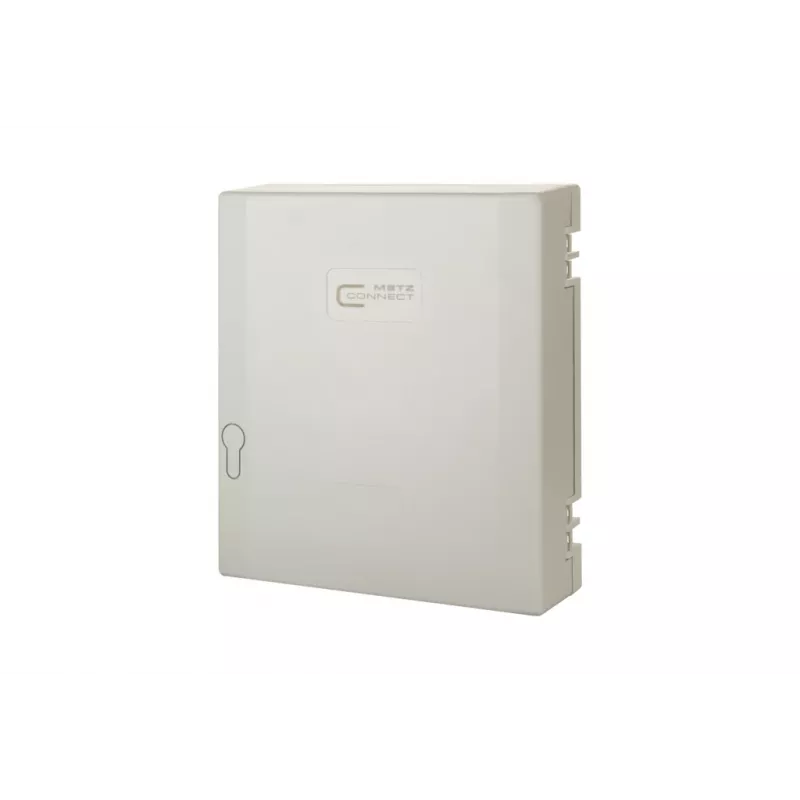

METZCONNECT BTR 1503500000-E OpDAT HÜP caixa de terminação de fibra ótica sem equipamento e sem fechadura

For installers who need a compact, no-frills fiber termination point that can be tailored on site, the METZCONNECT BTR 1503500000-E OpDAT HÜP stands out by arriving completely unpopulated and lock-free. Instead of paying for pre-installed adapters or a keyed closure you may never use, you get a clean slate: a robust indoor wall-mount enclosure that accepts up to four fibers and two adapter cutouts, ready to be equipped exactly to the project’s requirements.

Highlights

• Unpopulated enclosure – add only the adapters and splice trays you actually need
• Supports up to 4 fibers with two cutouts for SC simplex, LC duplex, or E2000 compact simplex adapters
• Integrated splice area for up to 4 crimp or heat-shrink splice protectors
• Tool-free cable entry via 2x M20 and 2x M16 knockouts, suitable for common indoor cable diameters
• IP54 protection against dust and splashing water, ideal for indoor distribution points
• Housing in white RAL 9010, flammability rated UL94 V-0 for added safety

In daily use

Mount the HÜP on a wall in a riser closet, office corridor, or technical room. Route the incoming fiber cable through one of the M20 or M16 entries, strip and secure the fibers in the splice area, and snap in your chosen adapters. The compact footprint keeps the installation tidy, while the IP54 rating means occasional dust or moisture won’t compromise the connection. Because the box is unpopulated, you can standardize on one enclosure type across multiple projects and simply stock the specific adapters each job requires.

Full specifications

• Product type: Fiber optic termination box (HÜP), unpopulated
• Lock mechanism: Without lock
• Mounting type: Wall mount
• Material: Plastic
• Color: White (RAL 9010)
• Max. fiber capacity: 4 fibers
• Adapter cutouts: 2x SC simplex / LC duplex / E2000 compact simplex
• Splice tray capacity: 4 splices
• Splice protector type: Crimp or heat shrink
• Cable entry points: 2x M20, 2x M16
• IP protection rating: IP54
• Application environment: Indoor
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -25 °C to +70 °C
• Flammability rating: UL94 V-0 (housing)

Final note

Choose the METZCONNECT BTR 1503500000-E when you want a dependable, no-waste termination point that adapts to your inventory rather than the other way around.
