METZ CONNECT OpDAT cabo de patch SC-S/SC-S OS2 1,0 m amarelo 2,0 mm 151P3EOEO10E

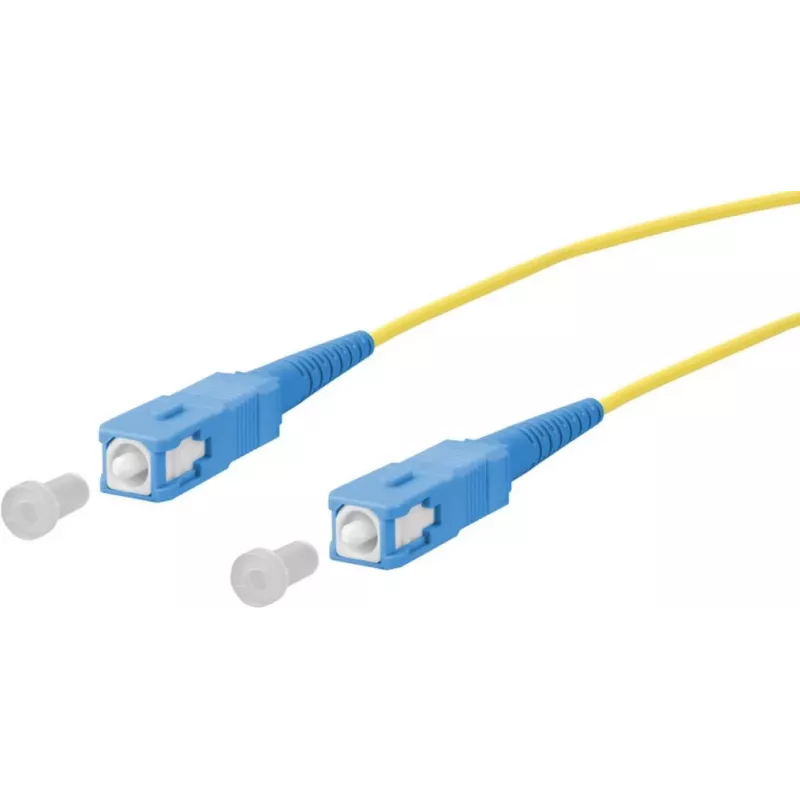

The METZ CONNECT OpDAT Patch Cable is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, and high-speed networks. With SC-S to SC-S connectors and OS2 fiber standard, it ensures low attenuation and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss < 0.3 dB and return loss > 50 dB. The 2.0 mm diameter cable is flexible yet durable, and the yellow jacket provides easy identification for single-mode applications. It is compliant with ITU-T G.652.D standards.

Suitable for

• High-speed data networks
• Telecommunications infrastructure
• Data center interconnects
• Fiber-to-the-x (FTTx) deployments

Key specifications

• Connector type: SC-S to SC-S (Simplex)
• Fiber type: Single-mode OS2 (9/125 µm)
• Cable length: 1.0 m
• Cable diameter: 2.0 mm
• Jacket color: Yellow
• Attenuation: < 0.35 dB/km @ 1310 nm, < 0.22 dB/km @ 1550 nm
• Insertion loss: < 0.3 dB typical
• Return loss: > 50 dB typical

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is ideal for short-distance patching in racks and panels.
