METZ CONNECT Painel de ligação de fusão 24xLC-Duplex OS2 monomodo 1U montagem em rack 19 polegadas 1504697424-E

48-fiber capacity in a 1U footprint: the METZ CONNECT splice patch panel terminates 24 LC-Duplex OS2 singlemode connections with ceramic adapter sleeves for low insertion loss.

Overview

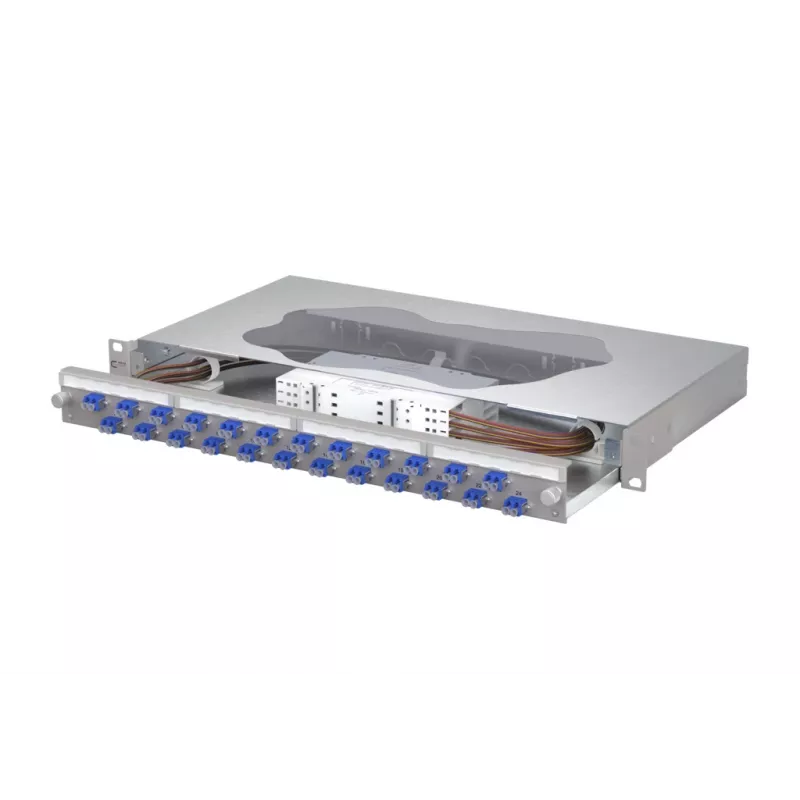

The METZ CONNECT 1504697424-E is a 19-inch rack-mount splice patch panel occupying 1 rack unit. It provides 24 LC-Duplex ports on the front, each accommodating two fibers, for a total of 48 fibers. The panel is designed for OS2 singlemode fiber and uses splice termination, making it suitable for high-density fiber management in data centers and enterprise networks.

What stands out

• High density: 24 duplex ports in 1U
• OS2 singlemode support for long-distance links
• Ceramic adapter sleeves for reliable connections
• Steel housing in light grey for durability
• Rear cable entry for organized routing

Technical details

• Product type: Fiber optic patch panel
• Mounting: 19-inch rack, 1U
• Ports: 24 LC-Duplex
• Fiber type: Singlemode OS2
• Total fiber capacity: 48
• Termination method: Splice
• Housing material: Steel
• Colour: Light grey
• Cable entry: Rear
• Adapter sleeves: Ceramic
• Operating temperature: -10°C to +60°C

Our verdict

A compact and robust splice panel for high-density singlemode fiber termination, ideal for structured cabling in racks where space is at a premium.
