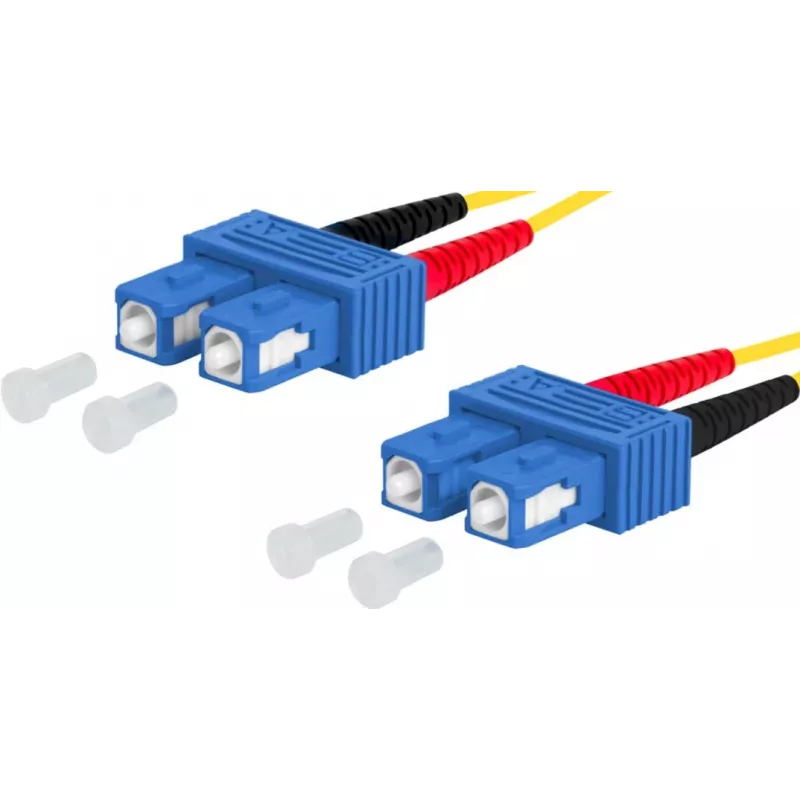

METZ OpDAT cabo patch OS2 SC-D/SC-D duplex monomodo 3m amarelo LSZH

The METZ OpDAT patch cable OS2 SC-D/SC-D Duplex is a high-performance fiber optic patch cable designed for reliable single-mode transmission in indoor environments. With a length of 3 meters and a yellow LSZH jacket, this cable ensures low smoke and zero halogen safety while delivering excellent optical performance.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥50 dB), ensuring minimal signal degradation. The LSZH jacket provides enhanced safety in case of fire, making it suitable for use in public and commercial buildings. The duplex SC connectors ensure secure and easy connections.

Suitable for

• Data center and server room cabling
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) requiring single-mode fiber

Key specifications

• Fiber type: OS2 single-mode
• Connectors: SC-Duplex to SC-Duplex
• Cable length: 3 meters
• Jacket color: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Core/cladding: 9/125 µm
• Number of fibers: 2 (duplex)
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Attenuation: ≤0.4 dB/km @ 1310nm, ≤0.3 dB/km @ 1550nm
• Operating temperature: -10°C to +60°C
• Standards: IEC 60794-2, IEC 60332-1-2, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-speed data transmission up to 10 Gbps and beyond.
